41SM1 Series

Catalog

MICROSWITCH, SUBMINIATURE, PIN PLUNGER, SPDT, SOLDER, 11 A, 125 VDC

Part	Operating Force	Voltage Rating - DC	Pretravel	Pretravel	Differential Travel	Differential Travel	Operating Temperature [Min]	Operating Temperature [Max]	Operating Position	Operating Position	Switch Function	Actuator Type	Voltage Rating - AC	Circuit	Termination Style	Current Rating (Amps)	Mounting Type	Release Force	Overtravel [custom]	Overtravel [custom]	Mechanical Life	Termination Style

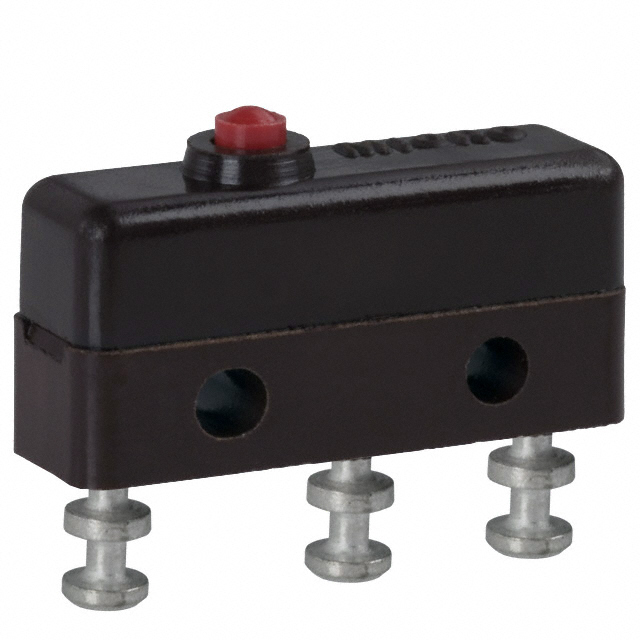

Honeywell Sensing and Productivity Solutions 41SM1-T2	141 gf	30 V	0.8 mm	0.03 "	0.1 mm	0.004 in	-55 C	125 °C	0.33 in	8.4 mm	On-Mom	Round (Pin Plunger)	250 V	SPDT	Solder Turret	5 A 11 A	Chassis Mount	28 gf	0.005 "	0.13 mm	80000 Cycles

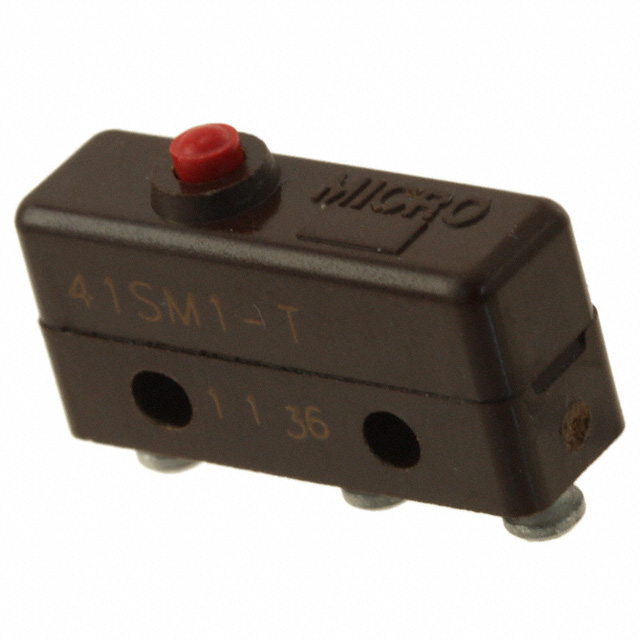

Honeywell Sensing and Productivity Solutions 41SM1-T	141 gf	30 V	0.8 mm	0.03 "	0.1 mm	0.004 in	-55 C	125 °C	0.33 in	8.4 mm	On-Mom	Round (Pin Plunger)	250 V	SPDT	Solder Turret	5 A 11 A	Chassis Mount	28 gf	0.005 "	0.13 mm	80000 Cycles
Honeywell Sensing and Productivity Solutions 41SM1-H58	141 gf	30 V	0.8 mm	0.03 "	0.1 mm	0.004 in	-55 C	125 °C	0.33 in	8.4 mm	On-Mom	Round (Pin Plunger)	250 V	SPDT	Quick Connect	5 A 11 A	Chassis Mount	28 gf	0.005 "	0.13 mm	80000 Cycles	0.058 in
Honeywell Sensing and Productivity Solutions 41SM1-H4	141 gf	30 V	0.8 mm	0.03 "	0.1 mm	0.004 in	-55 C	125 °C	0.33 in	8.4 mm	On-Mom	Round (Pin Plunger)	250 V	SPDT	Solder Quick Connect - 0.110" (2.8mm)	5 A 11 A	Chassis Mount	28 gf	0.005 "	0.13 mm	80000 Cycles
