ALCOSWITCH SIP STV Series

Catalog

SWITCH SLIDE DIP SPST 0.01A 5V

Part	Length	Length	Mechanical Life	Body Material	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Actuator Level	Pitch	Pitch	Circuit	Mounting Type	Actuator Type	Termination Style	Voltage Rating	Contact Material	Height Above Board [z]	Height Above Board [z]	Current Rating (Amps)	Number of Positions

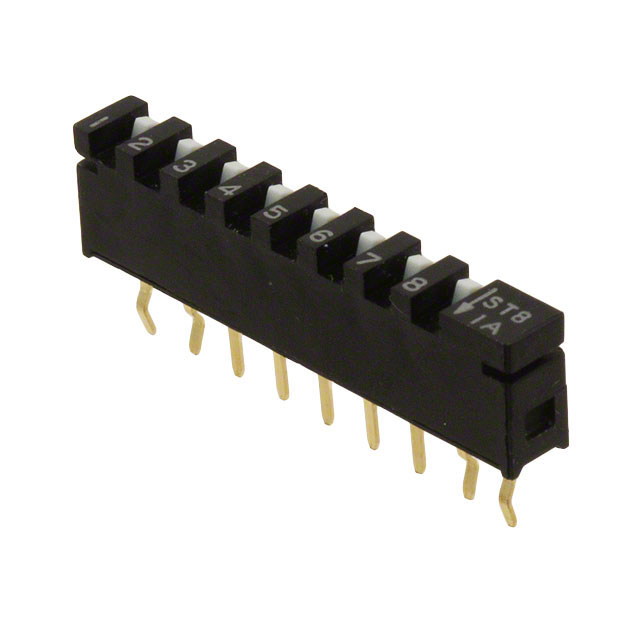

TE Connectivity AMP Connectors STV08	23.52 mm	0.926 in	1000 Cycles	Polyphenylene Sulfide (PPS)	1000 Cycles	85 °C	-30 ░C	Gold	Flush Recessed	2.54 mm	0.1 "	SPST	Through Hole	Slide (Standard)	PC Pin	5 V	Copper Alloy	0.244 in	6.2 mm	10 mA	8
TE Connectivity AMP Connectors 1977104-3						85 °C	-30 ░C	Gold	Flush Recessed	2.54 mm	0.1 "	SPST	Through Hole	Slide (Standard)	PC Pin	5 V	Copper Alloy	0.244 in	6.2 mm	10 mA	6

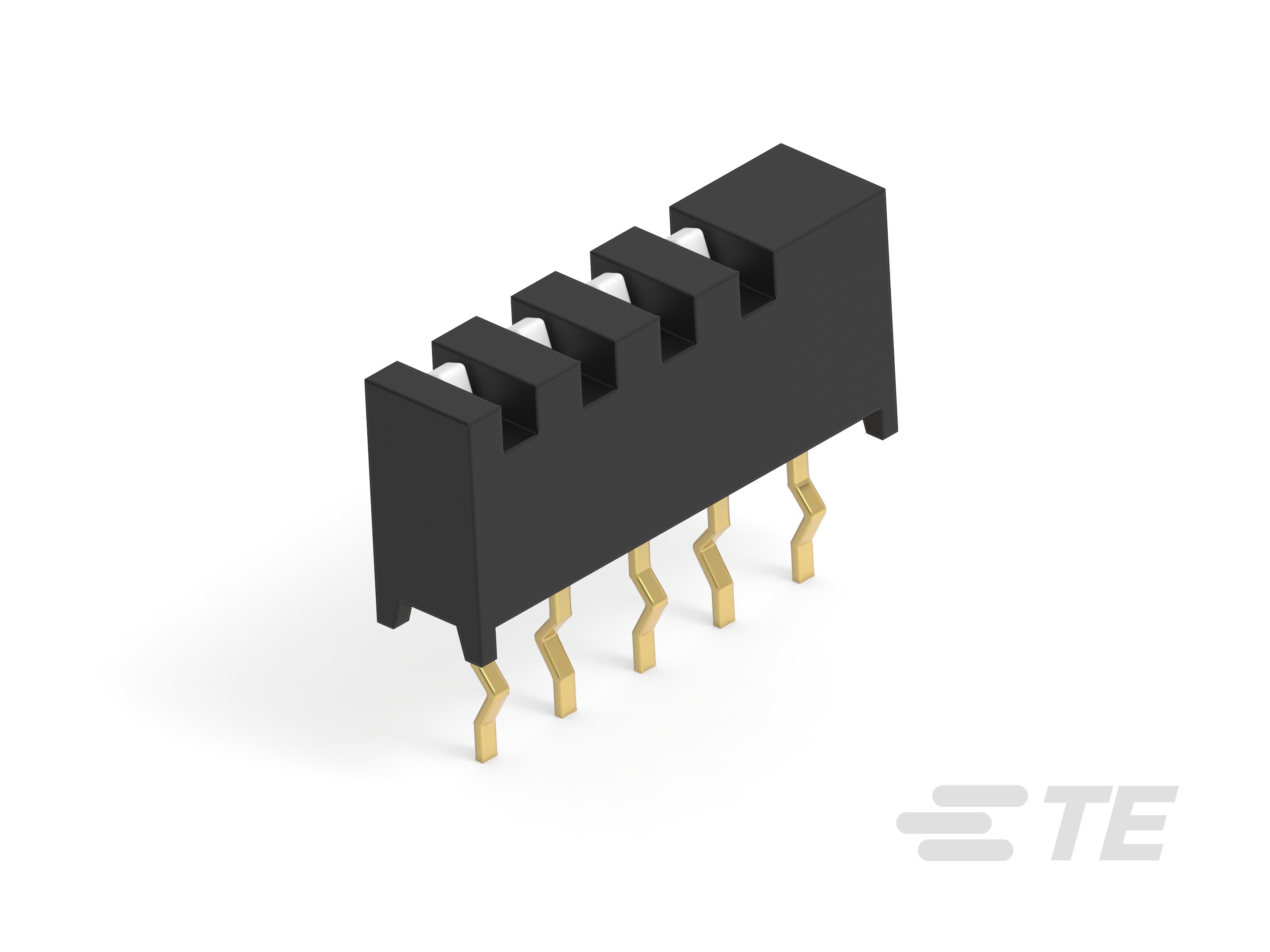

TE Connectivity AMP Connectors 1977104-2						85 °C	-30 ░C	Gold	Flush Recessed	2.54 mm	0.1 "	SPST	Through Hole	Slide (Standard)	PC Pin	5 V	Copper Alloy	0.244 in	6.2 mm	10 mA	4
TE Connectivity AMP Connectors 1977104-1						85 °C	-30 ░C	Gold	Flush Recessed	2.54 mm	0.1 "	SPST	Through Hole	Slide (Standard)	PC Pin	5 V	Copper Alloy	0.244 in	6.2 mm	10 mA	2
