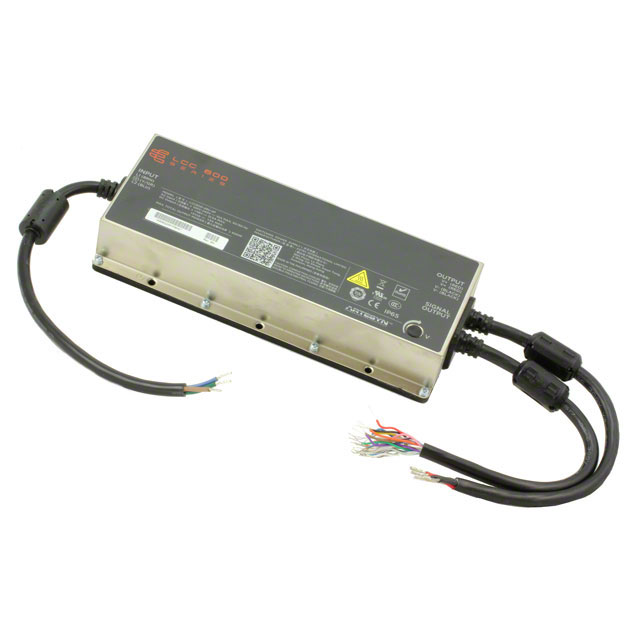

LCC600 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 600 W, 36 V, 16.7 A
| Part | Minimum Load Required | Number of Outputs | Type | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Approval Agency | Current - Output 1 | Power (Watts) | Standard Number | Applications | Voltage - Isolation | Voltage - Output 1 [custom] | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 1 | Enclosed | Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output | 3.98 in | 8.98 " | 228 mm | 39.8 mm | 1.57 " | 101 mm | -40 °C | 85 °C | 93 % | Chassis Mount | 180 VAC | 305 VAC | CB CE | 16.7 A | 600 W | 60601-1 60950-1 62368-1 | ITE (Commercial) | 3000 V | 36 V | ||
 ARTESYN / Advanced Energy | 1 | Enclosed | 3.98 in | 8.98 " | 228 mm | 39.8 mm | 1.57 " | 101 mm | -40 °C | 85 °C | 92 % | Chassis Mount | 90 VAC | 264 VAC | 16.7 A | 600 W | 60601-1 60950-1 62368-1 | ITE (Commercial) Medical | 4000 V | 36 V | ||||
ARTESYN / Advanced Energy | 1 | Enclosed | 3.98 in | 8.98 " | 228 mm | 39.8 mm | 1.57 " | 101 mm | -40 °C | 85 °C | 92 % | Chassis Mount | 90 VAC | 264 VAC | 16.7 A | 600 W | 60601-1 60950-1 62368-1 | ITE (Commercial) Medical | 4000 V | 36 V | ||||
ARTESYN / Advanced Energy | 1 | Enclosed | 3.98 in | 8.98 " | 228 mm | 39.8 mm | 1.57 " | 101 mm | -40 °C | 85 °C | 93 % | Chassis Mount | 90 VAC | 264 VAC | 25 A | 600 W | 60601-1 60950-1 62368-1 | ITE (Commercial) Medical | 4000 V | 24 V | ||||
 ARTESYN / Advanced Energy | 1 | Enclosed | Adjustable Output I2C Interface IP64 IP65 Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | 3.98 in | 8.98 " | 228 mm | 39.8 mm | 1.57 " | 101 mm | -40 °C | 85 °C | 93 % | Chassis Mount | 90 VAC | 264 VAC | CB CE | 12.5 A | 600 W | 60601-1 60950-1 62368-1 | ITE (Commercial) Medical | 4000 V | 48 V | ||
ARTESYN / Advanced Energy | 1 | Enclosed | Adjustable Output I2C Interface IP65 Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output | 3.98 in | 8.98 " | 228 mm | 39.8 mm | 1.57 " | 101 mm | -40 °C | 85 °C | 93 % | Chassis Mount | 180 VAC | 305 VAC | CB CE | 12.5 A | 600 W | 60601-1 60950-1 62368-1 | ITE (Commercial) | 3000 V | 48 V | ||
 ARTESYN / Advanced Energy | 1 | Enclosed | Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | 3.98 in | 8.98 " | 228 mm | 39.8 mm | 1.57 " | 101 mm | -40 °C | 85 °C | 93 % | Chassis Mount | 90 VAC | 264 VAC | CB CE | 16.7 A | 600 W | 60601-1 60950-1 62368-1 | ITE (Commercial) Medical | 4000 V | 36 V | ||
 ARTESYN / Advanced Energy | 1 | Enclosed | Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | 3.98 in | 8.98 " | 228 mm | 39.8 mm | 1.57 " | 101 mm | -40 °C | 85 °C | 93 % | Chassis Mount | 90 VAC | 264 VAC | CB CE | 50 A | 600 W | 60601-1 60950-1 62368-1 | ITE (Commercial) Medical | 4000 V | 12 V | ||
ARTESYN / Advanced Energy | 1 | Enclosed | Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output | 3.98 in | 8.98 " | 228 mm | 39.8 mm | 1.57 " | 101 mm | -40 °C | 85 °C | 93 % | Chassis Mount | 180 VAC | 305 VAC | CB CE | 50 A | 600 W | 60601-1 60950-1 62368-1 | ITE (Commercial) | 3000 V | 12 V | ||
 ARTESYN / Advanced Energy | 1 | Enclosed | Adjustable Output I2C Interface IP64 IP65 Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output | 3.98 in | 8.98 " | 228 mm | 39.8 mm | 1.57 " | 101 mm | -40 °C | 85 °C | 93 % | Chassis Mount | 180 VAC | 305 VAC | CB CE | 50 A | 600 W | 60601-1 60950-1 62368-1 | ITE (Commercial) | 3000 V | 12 V |
