RP357 Series

Catalog

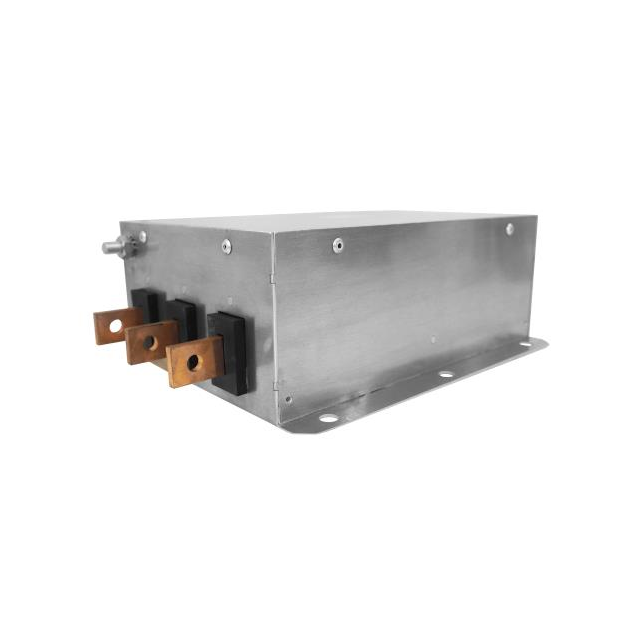

LINE FILTER 600VAC 800A CHASSIS

Part	Configuration	Filter Type	Current	Termination Style	Voltage - Rated AC	Frequency - Operating [Max]	Frequency - Operating [Min]	Approval Agency	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Rated AC (Phase to Ground/Neutral)
Astrodyne TDI RP357-800-10-B	Three Stage	Three Phase (Delta)	800 A	Terminal Post	600 V	60 Hz	50 Hz	CE cURus ENEC SEMKO	General Purpose	100 °C	-25 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-180-10-W	Three Stage	Three Phase (Delta)	180 A	Wire Leads	600 V	60 Hz	50 Hz	CE cURus ENEC SEMKO	General Purpose	100 °C	-25 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-400-10-B	Three Stage	Three Phase (Delta)	400 A	Terminal Post	600 V	60 Hz	50 Hz	CE cURus ENEC SEMKO	General Purpose	100 °C	-25 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-180-0-C	Three Stage	Three Phase (Delta)	180 A	Terminal Block	600 V	60 Hz	50 Hz	CE cURus ENEC SEMKO	General Purpose	100 °C	-25 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-180-10-S	Three Stage	Three Phase (Delta)	180 A	Threaded Post	600 V	60 Hz	50 Hz	CE cURus ENEC SEMKO	General Purpose	100 °C	-25 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-150-100-W	Three Stage	Three Phase (Delta)	150 A	Wire Leads	600 V	60 Hz	50 Hz	CE cURus ENEC SEMKO	General Purpose	100 °C	-25 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-2500-2000-B	Three Stage	Three Phase (Delta)	2.5 kA	Terminal Post	600 V	60 Hz	50 Hz	CE cURus ENEC SEMKO	General Purpose	100 °C	-25 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-1000-100-B	Three Stage	Three Phase (Delta)	1 kA	Terminal Post	600 V	60 Hz	50 Hz	CE cURus ENEC SEMKO	General Purpose	100 °C	-25 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-250-1000-S	Three Stage	Three Phase (Delta)	250 A	Threaded Post	600 V	60 Hz	50 Hz	CE cURus ENEC SEMKO	General Purpose	100 °C	-25 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-2500-0-B	Three Stage	Three Phase (Delta)	2.5 kA	Terminal Post	600 V	60 Hz	50 Hz	CE cURus ENEC SEMKO	General Purpose	100 °C	-25 °C	Chassis Mount	3.8 kV
