OSTTD06 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

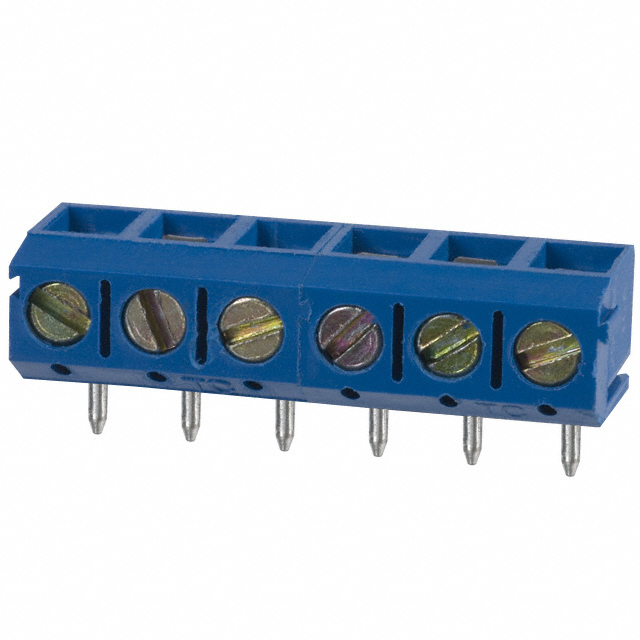

TERM BLK 6POS TOP ENTRY 5MM PCB
| Part | Housing Material | Wire Gauge [Min] | Wire Gauge [Max] | Wire Termination | Pitch [x] | Pitch [x] | Screw Thread | Clamp Material - Plating | Color | Number of Levels | Contact Material - Plating [custom] | Mating Orientation | Screw Material - Plating | Current | Features | Positions Per Level | Operating Temperature [Min] | Operating Temperature [Max] | Torque - Screw | Torque - Screw | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Thermoplastic | 14 AWG | 22 AWG | Screw - Leaf Spring Wire Guard | 5 mm | 0.197 in | M2.6 | Stainless Steel | Blue | 1 | Tin Plated | Vertical with Board | Steel Zinc Plated | 16 A | Interlocking (Side) | 6 | -30 ░C | 105 ░C | 0.3 Nm | 2.6 Lb-In | Through Hole |
