152 Series

Manufacturer: Serpac

Catalog

BOX ABS GRAY 5.62"L X 3.25"W

Part	Weight	Weight	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Area (L x W)	Area (L x W)	Design	Ratings	Color	Material	Container Type	Features	Material Flammability Rating	Thickness	Thickness	Height [z]	Height [z]	Area (L x W) [custom]	Area (L x W) [custom]

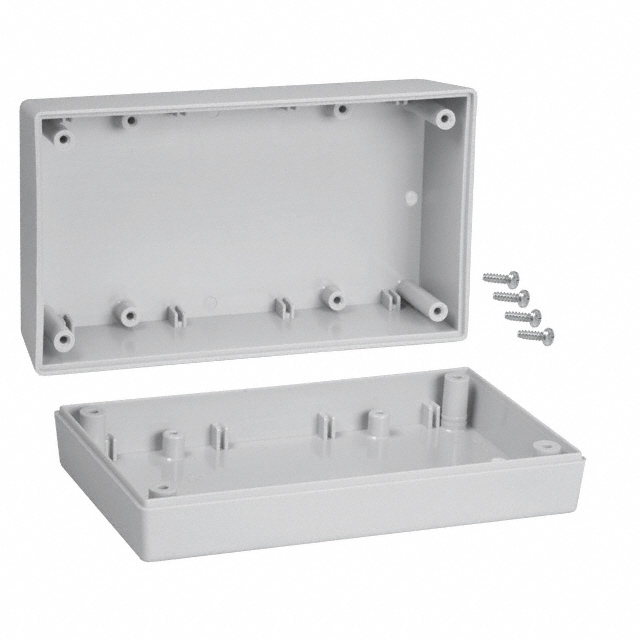

Serpac 152,GY	119.29 g	0.263 lb	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²	Hand Held Split Sides	IP40 NEMA 1	Gray	ABS Plastic	Box	PCB Supports	UL94 HB	2.54 mm	0.1 in	50.8 mm	2 in

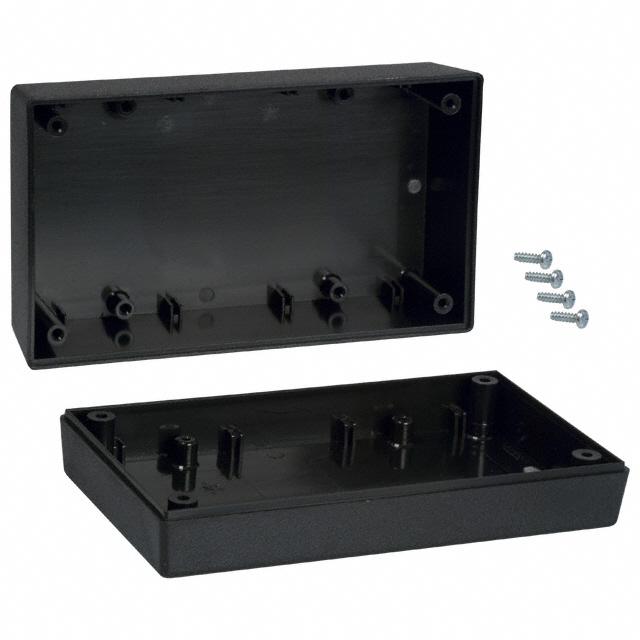

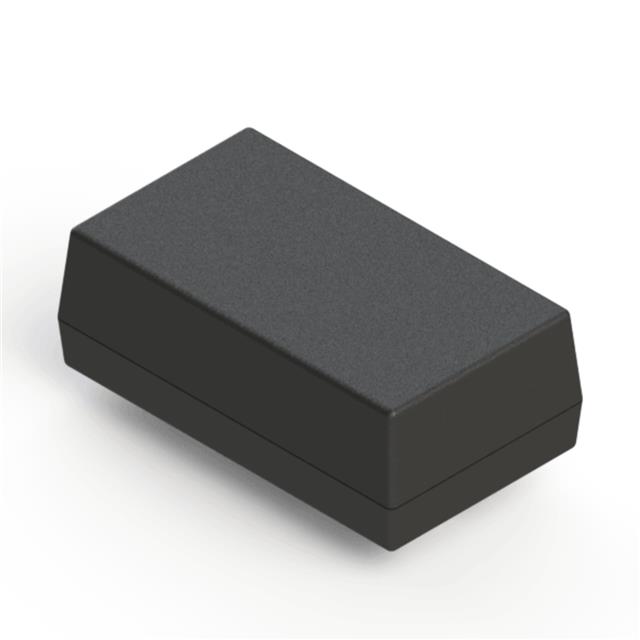

Serpac 152,BK	119.29 g	0.263 lb	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²	Hand Held Split Sides	IP40 NEMA 1	Black	ABS Plastic	Box	PCB Supports	UL94 HB	2.54 mm	0.1 in	50.8 mm	2 in	118 cm˛	18.3 in˛

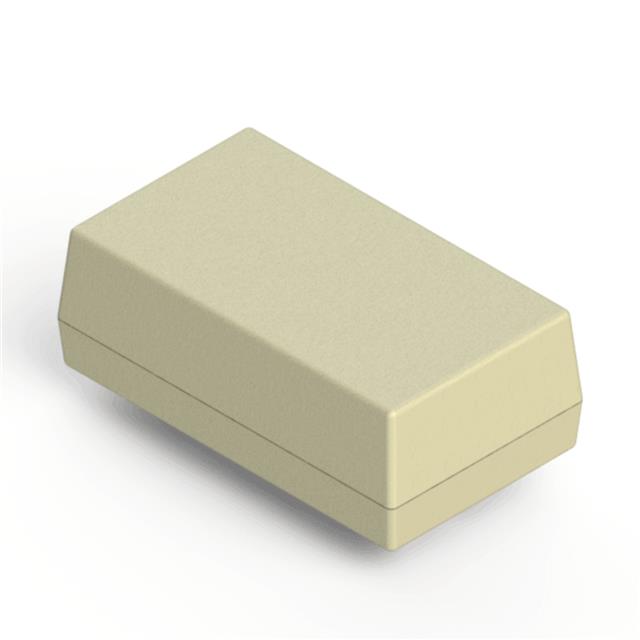

Serpac 152,AL	119.29 g	0.263 lb	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²	Hand Held Split Sides	IP40 NEMA 1	Almond	ABS Plastic	Box	PCB Supports	UL94 HB	2.54 mm	0.1 in	50.8 mm	2 in
