LM5020 Series
Manufacturer: Texas Instruments
Beta
⌘K
13-100V WIDE VIN, CURRENT MODE PWM BOOST, FLYBACK, SEPIC CONTROLLER
| Part | Duty Cycle (Max) [Max] | Function | Output Phases | Operating Temperature [Min] | Operating Temperature [Max] | Topology | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Frequency - Switching [Max] | Frequency - Switching [Min] | Mounting Type | Supplier Device Package | Clock Sync | Package / Case | Package / Case [x] | Package / Case [x] | Synchronous Rectifier | Number of Outputs | Output Configuration | Output Type | Control Features | Duty Cycle (Max) | Board Type | Regulator Topology | Voltage - Input [Min] | Voltage - Input [Max] | Supplied Contents | Main Purpose | Utilized IC / Part | Voltage - Output | Outputs and Type | Outputs and Type | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 50 % | Step-Up/Step-Down | 1 | -40 °C | 125 ¯C | Flyback | 15 V | 8 V | 630 kHz | 200 kHz | Surface Mount | 10-VSSOP | 10-MSOP 10-TFSOP | 3 mm | 0.118 in | 1 | Positive | Transistor Driver | Frequency Control Soft Start | ||||||||||||||
 Texas Instruments | Step-Up/Step-Down | 1 | -40 °C | 125 ¯C | Flyback | 15 V | 8 V | 630 kHz | 200 kHz | Surface Mount | 10-VSSOP | 10-MSOP 10-TFSOP | 3 mm | 0.118 in | 1 | Positive | Transistor Driver | Frequency Control Soft Start | 80 % | ||||||||||||||
Texas Instruments | Step-Up/Step-Down | 1 | -40 °C | 125 ¯C | Flyback | 15 V | 8 V | 630 kHz | 200 kHz | Surface Mount | 10-VSSOP | 10-MSOP 10-TFSOP | 3 mm | 0.118 in | 1 | Positive | Transistor Driver | Frequency Control Soft Start | 80 % | ||||||||||||||

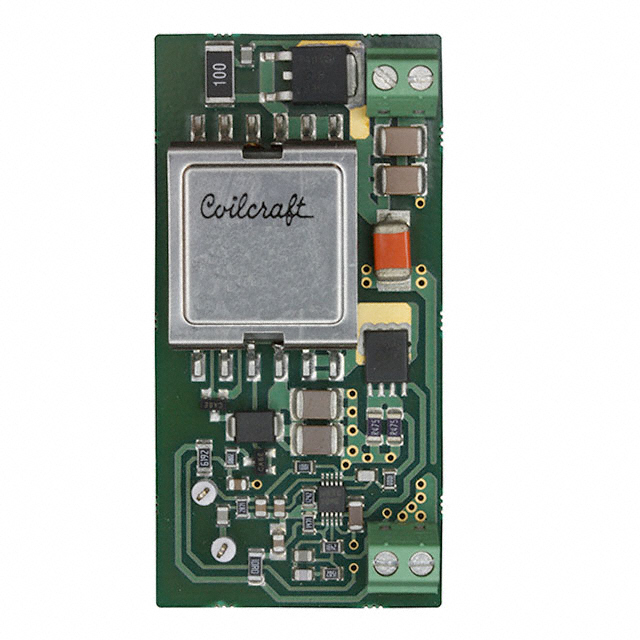

 Texas Instruments | Fully Populated | Flyback | 30 V | 75 V | Board(s) | DC/DC Step Down | LM5020 | 3.3 V | Isolated | 1 | 4.5 A | ||||||||||||||||||||||
 Texas Instruments | Step-Up/Step-Down | 1 | -40 °C | 125 ¯C | Flyback | 15 V | 8 V | 630 kHz | 200 kHz | Surface Mount | 10-WSON (4x4) | 10-WDFN Exposed Pad | 1 | Positive | Transistor Driver | Frequency Control Soft Start | 80 % | ||||||||||||||||
Texas Instruments | Step-Up/Step-Down | 1 | -40 °C | 125 ¯C | Flyback | 15 V | 8 V | 630 kHz | 200 kHz | Surface Mount | 10-VSSOP | 10-MSOP 10-TFSOP | 3 mm | 0.118 in | 1 | Positive | Transistor Driver | Frequency Control Soft Start | 80 % | ||||||||||||||
Texas Instruments | Step-Up/Step-Down | 1 | -40 °C | 125 ¯C | Flyback | 15 V | 8 V | 630 kHz | 200 kHz | Surface Mount | 10-VSSOP | 10-MSOP 10-TFSOP | 3 mm | 0.118 in | 1 | Positive | Transistor Driver | Frequency Control Soft Start | 80 % | ||||||||||||||
Texas Instruments | 50 % | Step-Up/Step-Down | 1 | -40 °C | 125 ¯C | Flyback | 15 V | 8 V | 630 kHz | 200 kHz | Surface Mount | 10-VSSOP | 10-MSOP 10-TFSOP | 3 mm | 0.118 in | 1 | Positive | Transistor Driver | Frequency Control Soft Start | ||||||||||||||
Texas Instruments | Step-Up/Step-Down | 1 | -40 °C | 125 ¯C | Flyback | 15 V | 8 V | 630 kHz | 200 kHz | Surface Mount | 10-WSON (4x4) | 10-WDFN Exposed Pad | 1 | Positive | Transistor Driver | Frequency Control Soft Start | 80 % | ||||||||||||||||
Texas Instruments | 50 % | Step-Up/Step-Down | 1 | -40 °C | 125 ¯C | Flyback | 15 V | 8 V | 630 kHz | 200 kHz | Surface Mount | 10-VSSOP | 10-MSOP 10-TFSOP | 3 mm | 0.118 in | 1 | Positive | Transistor Driver | Frequency Control Soft Start |
