SRCN6A16 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN PLUG MALE 7 POS
| Part | Orientation | Number of Positions | Primary Material | Connector Type | Material Flammability Rating | Contact Material | Fastening Type | Shell Finish | Shell Material | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert | Insert Material | Voltage Rating | Cable Opening | Cable Opening | Features | Color | Mounting Type | Contact Finish - Mating | Current Rating (Amps) | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

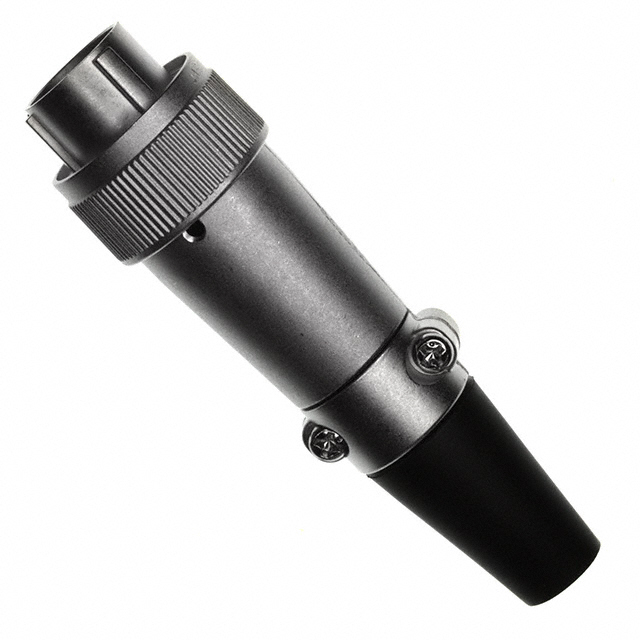

 JAE Electronics | N (Normal) | 7 | Metal | Plug Male Pins | UL94 V-0 | Copper Alloy | Threaded | Nickel | Aluminum Alloy | Communication Systems Measurement Telecommunications Test Equipment | 85 °C | -25 °C | |||||||||||

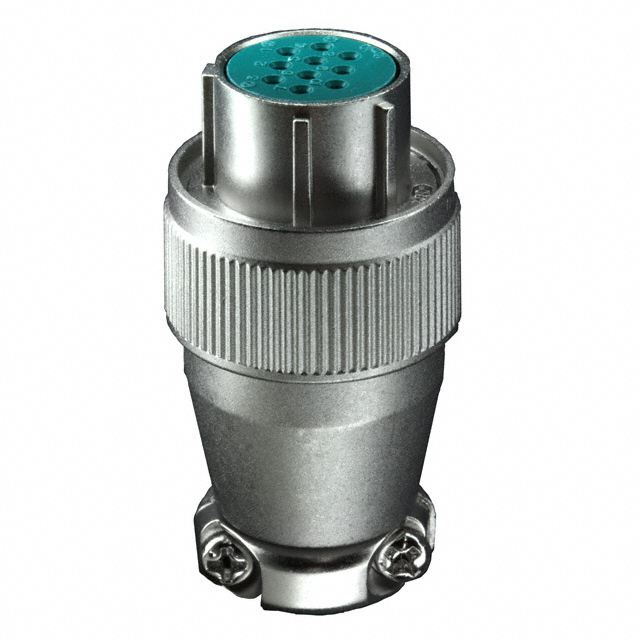

 JAE Electronics | N (Normal) | 10 | Metal | Plug Female Sockets | UL94 V-0 | Copper Alloy | Threaded | Nickel | Aluminum Alloy | Communication Systems Measurement Telecommunications Test Equipment | 85 °C | -25 °C | 16-10 | Plastic | 250 VAC 350 VDC | 11.51 mm | 0.453 in | Backshell Cable Clamp Coupling Nut | Silver | Free Hanging (In-Line) | Silver | 5 A | Aluminum Alloy Nickel |

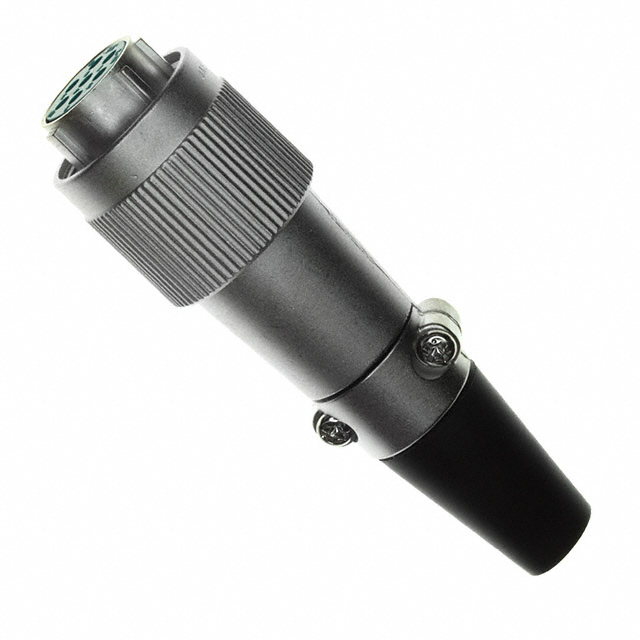

 JAE Electronics | N (Normal) | 7 | Metal | Plug Female Sockets | UL94 V-0 | Copper Alloy | Threaded | Nickel | Aluminum Alloy | Communication Systems Measurement Telecommunications Test Equipment | 85 °C | -25 °C | Plastic | 250 VAC 350 VDC | 11.51 mm | 0.453 in | Backshell Cable Clamp Coupling Nut | Silver | Free Hanging (In-Line) | Silver | 10 A | Aluminum Alloy Nickel | |

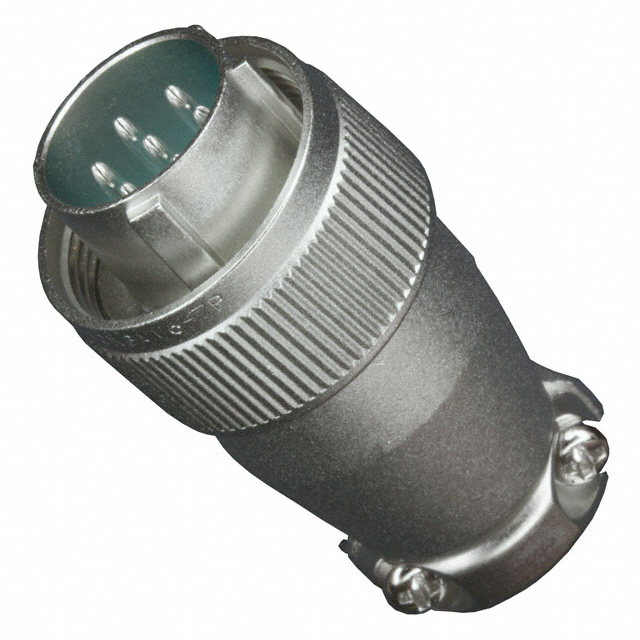

 JAE Electronics | N (Normal) | 7 | Metal | Plug Male Pins | UL94 V-0 | Copper Alloy | Threaded | Nickel | Aluminum Alloy | Communication Systems Measurement Telecommunications Test Equipment | 85 °C | -25 °C | Plastic | 250 VAC 350 VDC | 11.51 mm | 0.453 in | Backshell Cable Clamp Coupling Nut | Silver | Free Hanging (In-Line) | Silver | 10 A | Aluminum Alloy Nickel | |

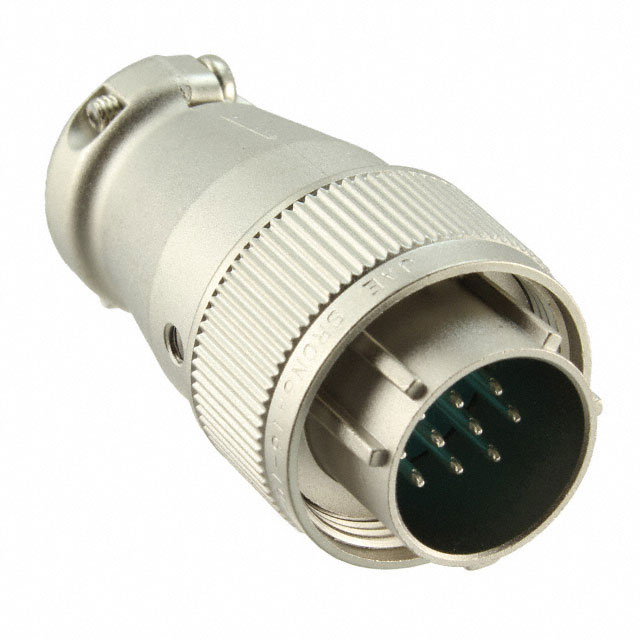

 JAE Electronics | N (Normal) | 10 | Metal | Plug Male Pins | UL94 V-0 | Copper Alloy | Threaded | Nickel | Aluminum Alloy | Communication Systems Measurement Telecommunications Test Equipment | 85 °C | -25 °C | 16-10 | Plastic | 250 VAC 350 VDC | 11.51 mm | 0.453 in | Backshell Cable Clamp Coupling Nut | Silver | Free Hanging (In-Line) | Silver | 5 A | Aluminum Alloy Nickel |

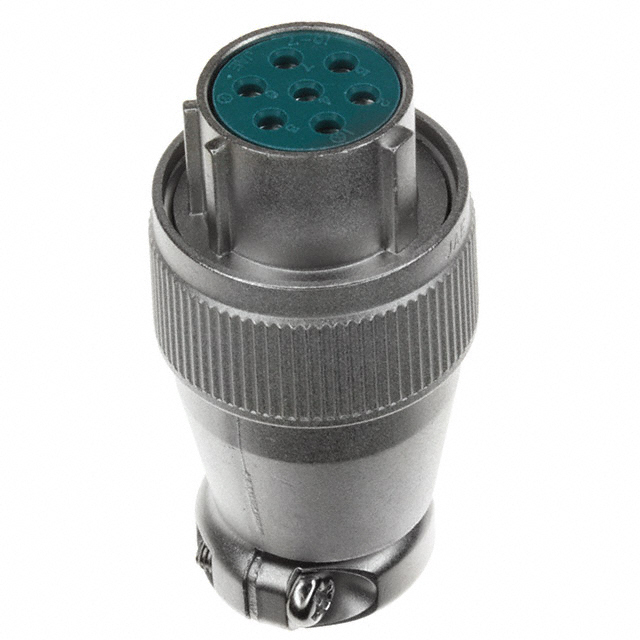

 JAE Electronics | N (Normal) | 7 | Metal | Plug Female Sockets | UL94 V-0 | Copper Alloy | Threaded | Nickel | Aluminum Alloy | Communication Systems Measurement Telecommunications Test Equipment | 85 °C | -25 °C |
