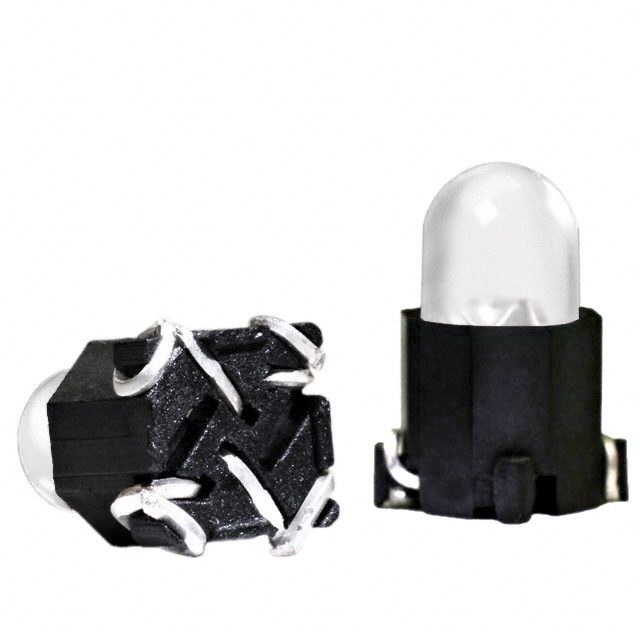

SML-H1505 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED RED CLEAR SMD DOME LED SMD

Part	Size / Dimension [x]	Size / Dimension [y]	Lens Transparency	Color	Package / Case	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Mounting Type	Lens Style	Height (Max) [z]	Viewing Angle	Lens Color	Lens Size [diameter]	Configuration	Wavelength - Peak	Current - Test	Millicandela Rating	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
Lumex Opto/Components Inc. SML-H1505SIC-TR	6.51 mm	6.51 mm	Clear	Red	2-SMD 1505	2 V	Surface Mounted Dome LED	Surface Mount	Round with Domed Top	11 mm	60 °	Colorless	4.9 mm	Standard	635 nm	20 mA	700 mcd
Lumex Opto/Components Inc. SML-H1505SIUGUBWTR	6.51 mm	6.51 mm	Diffused	Blue Green Red	2-SMD 1505		Surface Mounted Dome LED	Surface Mount	Round with Domed Top	11 mm	60 °	White	4.9 mm	Common Cathode	465 nm 520 nm 635 nm			2200 mcd	1100 mcd	600 mcd	20mA Blue 20mA Green 20mA Red	3.4 V	3.4 V	2.2 V
Lumex Opto/Components Inc. SML-H1505UPGC-TR	6.51 mm	6.51 mm	Clear	Green	2-SMD 1505	3.3 V	Surface Mounted Dome LED	Surface Mount	Round with Domed Top	11 mm	45 °	Colorless	4.9 mm	Standard	520 nm	20 mA	7000 mcd
Lumex Opto/Components Inc. SML-H1505SUGC-TR	6.51 mm	6.51 mm	Clear	Green	2-SMD 1505	2 V	Surface Mounted Dome LED	Surface Mount	Round with Domed Top	11 mm	68 °	Colorless	4.9 mm	Standard	575 nm	20 mA	200 mcd
Lumex Opto/Components Inc. SML-H1505UWC-TR	6.51 mm	6.51 mm	Clear	White	2-SMD 1505	3.3 V	Surface Mounted Dome LED	Surface Mount	Round with Domed Top	11 mm	30 °	Colorless	4.9 mm	Standard		20 mA	14000 mcd
Lumex Opto/Components Inc. SML-H1505USBC-TR	6.51 mm	6.51 mm	Clear	Blue	2-SMD 1505	3.3 V	Surface Mounted Dome LED	Surface Mount	Round with Domed Top	11 mm	40 °	Colorless	4.9 mm	Standard	470 nm	20 mA	2500 mcd
Lumex Opto/Components Inc. SML-H1505SIUGUBCTR	6.51 mm	6.51 mm	Clear	Blue Green Red	2-SMD 1505		Surface Mounted Dome LED	Surface Mount	Round with Domed Top	11 mm	70 °	Colorless	4.9 mm	Common Cathode	465 nm 520 nm 635 nm			2200 mcd	1100 mcd	600 mcd	20mA Blue 20mA Green 20mA Red	3.4 V	3.4 V	2.2 V
Lumex Opto/Components Inc. SML-H1505UPGD-TR	6.51 mm	6.51 mm	Diffused	Green	2-SMD 1505	3.3 V	Surface Mounted Dome LED	Surface Mount	Round with Domed Top	11 mm	60 °	Green	4.9 mm	Independent	520 nm	20 mA	2200 mcd
