ZF12 Series

Catalog

PUSHBUTTON SWITCHES PUSHBUTTON

Part	Electrical Life	Mechanical Life	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Circuit	Current Rating (Amps)	Mounting Type	Voltage Rating - DC	Termination Style	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Actuator Marking	Actuator Type	Type
LITTELFUSE ZF124UEE

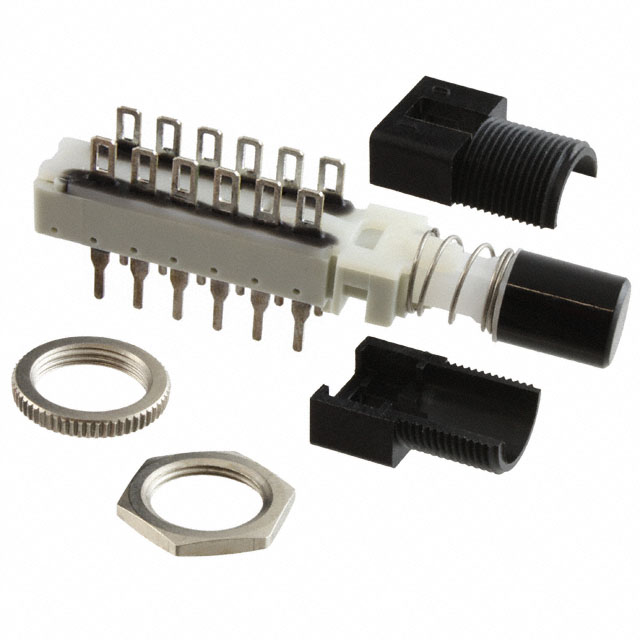

LITTELFUSE ZF12 FG BK 4U OA	100000 Cycles	100000 Cycles	125 V	70 °C	-40 C	On-Mom	4PDT	500 mA	Panel Mount Rear Right Angle	30 V	PC Pin Solder Lug	Black	12 mm	No Marking	Button Round	Standard
LITTELFUSE ZF12 FG RD NE18 2A EE
LITTELFUSE ZF12 FG BK NE18 2U EE

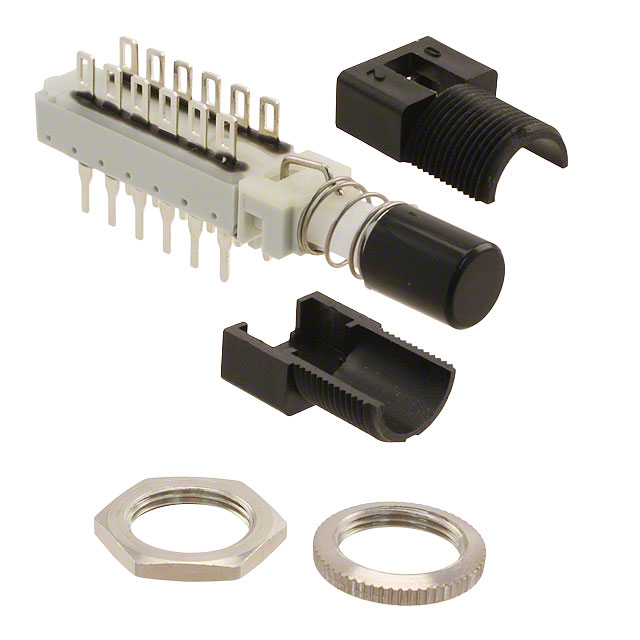

LITTELFUSE ZF12 FG BK 4U EE	100000 Cycles	100000 Cycles	125 V	70 °C	-40 C	On-On	4PDT	500 mA	Panel Mount Rear Right Angle	30 V	PC Pin Solder Lug	Black	12 mm	No Marking	Button Round	Standard
