65904 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

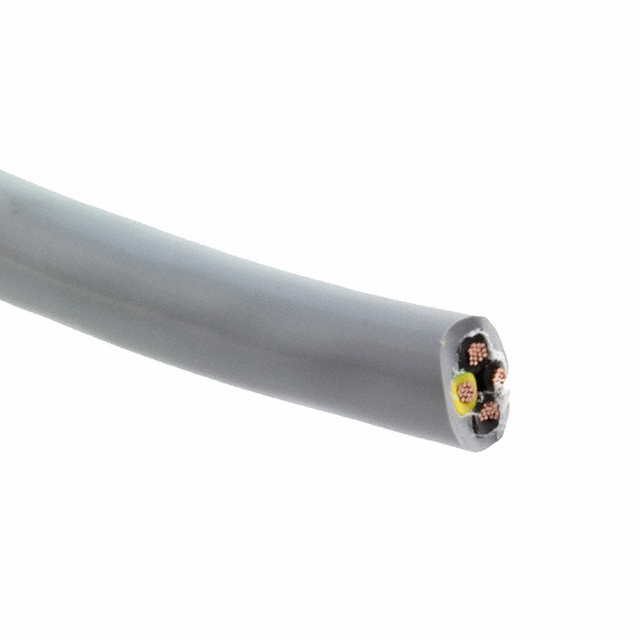

CABLE 4COND 8AWG SLATE 500'
| Part | Features | Conductor Insulation | Jacket Color | Cable Type | Number of Conductors | Voltage | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Ratings | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Biological Compatibility | Poly-Vinyl Chloride (PVC) | Slate | Multi-Conductor | 4 | 600 V | 8 AWG | 0.691 in | 17.55 mm | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2587 | 152.4 m | 500 ft | 0.085 in | 2.159 mm | Copper Bare | 26 AWG | 65 | ||
ALPHA WIRE | Biological Compatibility | Poly-Vinyl Chloride (PVC) | Slate | Multi-Conductor | 4 | 600 V | 8 AWG | 0.691 in | 17.55 mm | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2587 | 304.8 m | 1000 ft | 0.085 in | 2.159 mm | Copper Bare | 26 AWG | 65 | ||
ALPHA WIRE | Biological Compatibility | Poly-Vinyl Chloride (PVC) | Slate | Multi-Conductor | 4 | 600 V | 8 AWG | 0.691 in | 17.55 mm | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2587 | 0.085 in | 2.159 mm | Copper Bare | 26 AWG | 65 | ||||
 ALPHA WIRE | Biological Compatibility | Poly-Vinyl Chloride (PVC) | Slate | Multi-Conductor | 4 | 600 V | 8 AWG | 0.691 in | 17.55 mm | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2587 | 0.085 in | 2.159 mm | Copper Bare | 26 AWG | 65 | 100 ft | 30.5 m |
