725-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K

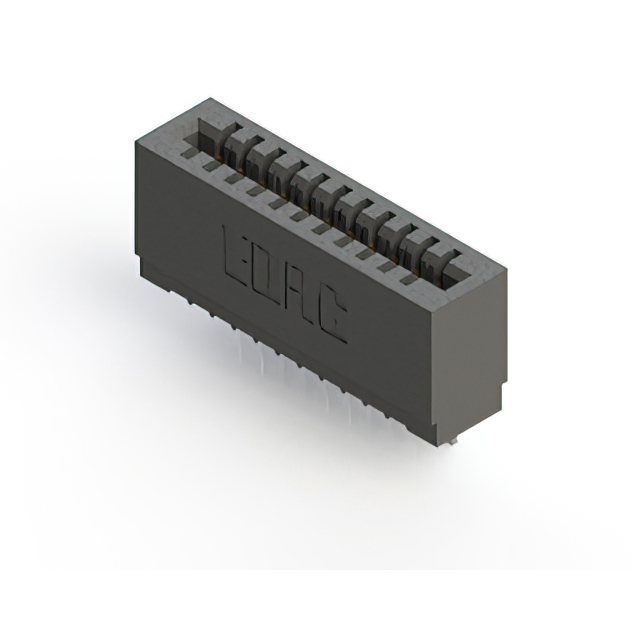

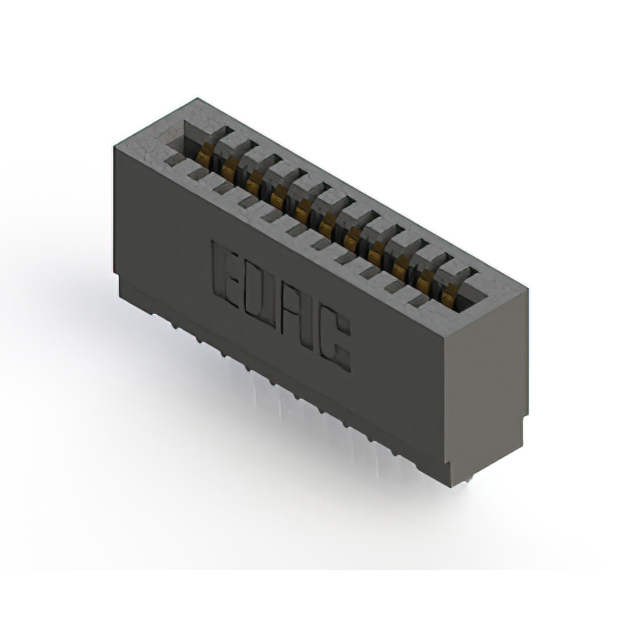

CONN EDGE SINGLE FML 11POS 0.100
| Part | Material - Insulation | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Gender | Read Out | Termination | Color | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Contact Material | Pitch | Pitch | Number of Rows | Card Type | Number of Positions/Bay/Row | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | -40 C | 105 ░C | 30 Áin | 0.76 Ám | 11 | Female | Single | Press-Fit | Black | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Copper Alloy | 0.1 " | 2.54 mm | 1 | Non Specified - Single Edge | 11 | Cantilever |
 EDAC Inc. | Polyester Thermoplastic | 1 | -40 C | 105 ░C | 30 Áin | 0.76 Ám | 11 | Female | Single | Press-Fit | Black | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Copper Alloy | 0.1 " | 2.54 mm | 1 | Non Specified - Single Edge | 11 | Cantilever |
 EDAC Inc. | Polyester Thermoplastic | 1 | -40 C | 105 ░C | 30 Áin | 0.76 Ám | 11 | Female | Single | Press-Fit | Black | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Copper Alloy | 0.1 " | 2.54 mm | 1 | Non Specified - Single Edge | 11 | Cantilever |
