R19163 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
NEX 10 M-N F STR
| Part | Body Material | Dielectric Material | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Convert To (Adapter End) | Mounting Type | Fastening Type | Adapter Type | Style | Frequency - Max [Max] | Adapter Series | Center Contact Plating | Convert From (Adapter End) | Conversion Type | Adapter Series [Min] | Adapter Series [Max] | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

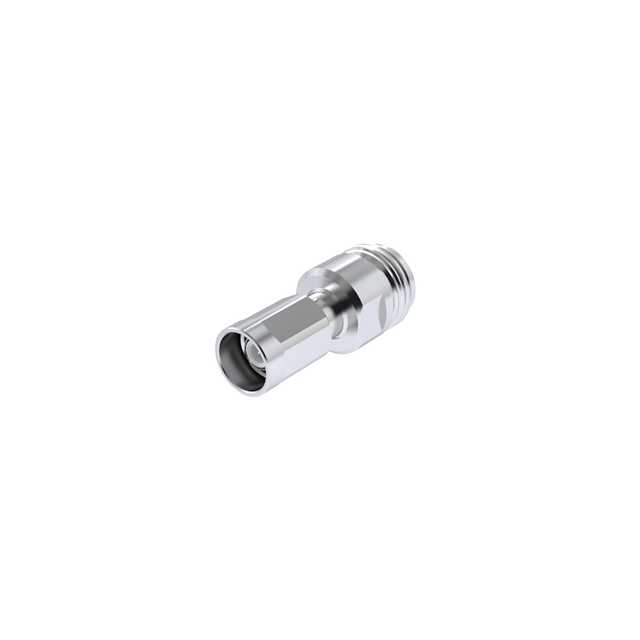

 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | Beryllium Copper | -55 C | 125 °C | 50 Ohms | N Jack Female Socket | Free Hanging (In-Line) | Snap-On Threaded | Plug to Jack | Straight | 11 GHz | NEX10 to N | Silver | NEX10 Plug Male Pin | Between Series | |||

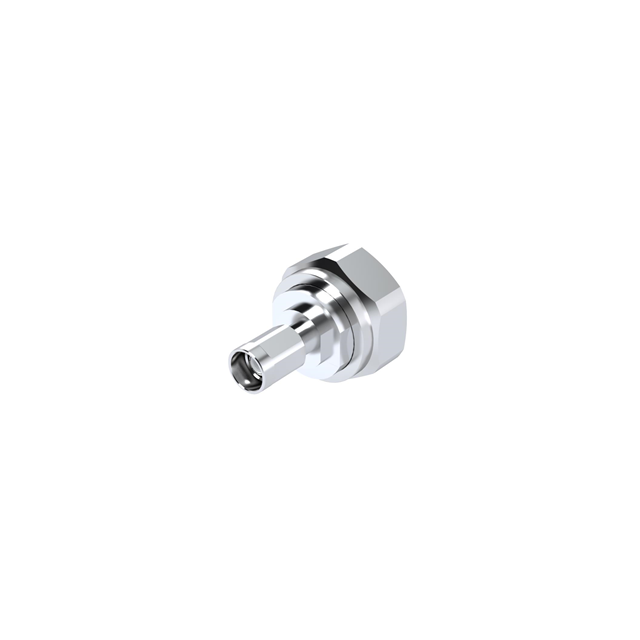

 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | Beryllium Copper | -55 C | 125 °C | 50 Ohms | NEX10 Plug Male Pin | Free Hanging (In-Line) | Snap-On Threaded | Plug to Plug | Straight | 6000 MHz | Silver | 7/16 Plug Male Pin | Between Series | 7/16 | NEX10 | Male to Male |
