ESG226M Series

Manufacturer: KEMET

Catalog

ELECTROLYTIC CAPACITOR, 22 ΜF, 400 V, ± 20%, PC PIN, 5000 HOURS @ 105°C, POLAR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Lifetime @ Temp.	Tolerance	Size / Dimension	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Voltage - Rated	Package / Case	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Impedance	Ripple Current @ High Frequency	Capacitance	Polarization	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
KEMET ESG226M400AL4AA	-40 C	105 ░C	General Purpose	5000 Hrs	20 %	13 mm	0.512 in	1.35 Ohm	400 V	Can Radial	170 mA	1.063 in	27 mm	Through Hole	1.35 Ohms	272 mA	22 µF	Polar	0.197 "	5 mm

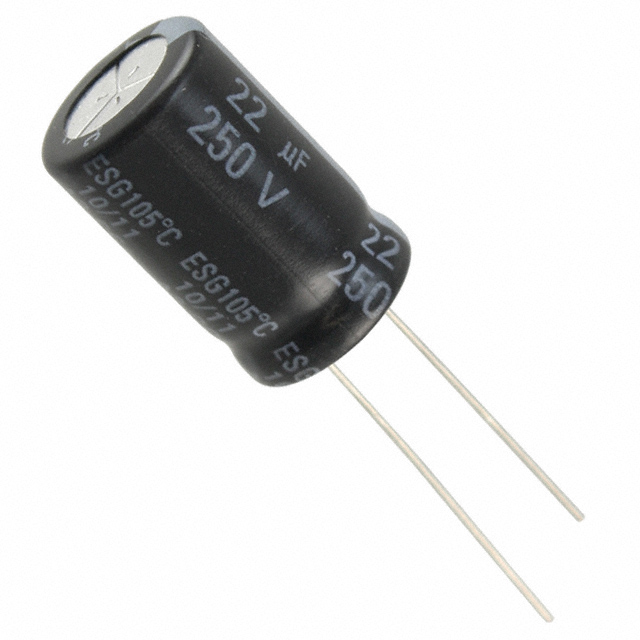

KEMET ESG226M250AL3AA	-40 C	105 ░C	General Purpose	5000 Hrs	20 %	13 mm	0.512 in	2.5 Ohm	250 V	Can Radial	160 mA			Through Hole	2.5 Ohms	256 mA	22 µF	Polar	0.197 "	5 mm	0.866 in	22 mm
