OSTTJ09 Series

Catalog

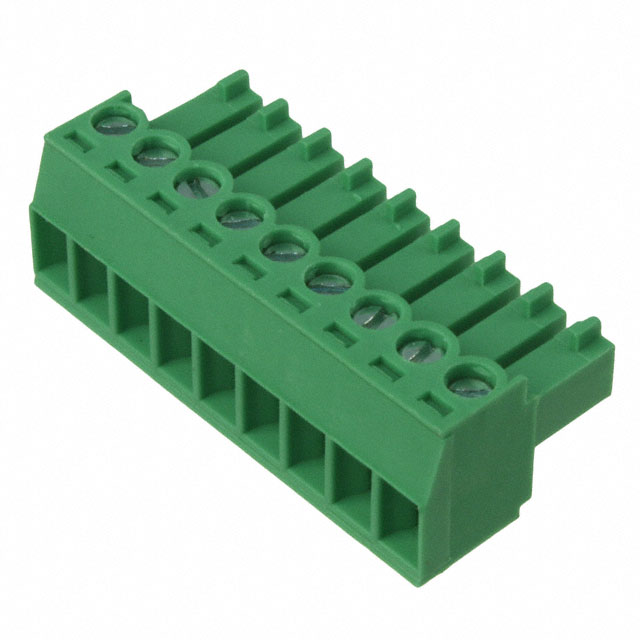

TERM BLOCK PLUG 9POS STR 3.81MM

Part	Wire Strip Length [Max]	Wire Strip Length [Min]	Housing Material	Contact Material	Material Flammability Rating	Torque - Screw	Torque - Screw	Type	Positions Per Level	Termination Style	Wire Gauge or Range - mm²	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Color	Number of Positions	Pitch	Pitch	Number of Levels	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - UL	Mounting Type	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm˛
On Shore Technology Inc. OSTTJ0931530M33	7 mm	6 mm	Brass	Brass	UL94 V-0	0.28 Nm	2.5 Lb-In	Plug Female Sockets	9	Screw	1.5 mm²	16 AWG	26 AWG	Green	9	3.81 mm	0.15 in	1	115 °C	-40 C	300 V	Free Hanging (In-Line)
On Shore Technology Inc. OSTTJ0931530M34	7 mm	6 mm	Brass	Brass	UL94 V-0	0.28 Nm	2.5 Lb-In	Plug Female Sockets	9	Screw	1.5 mm²	16 AWG	26 AWG	Green	9	3.81 mm	0.15 in	1	115 °C	-40 C	300 V	Free Hanging (In-Line)
On Shore Technology Inc. OSTTJ097150	8 mm	7 mm	Brass	Brass	UL94 V-0	0.56 Nm	5 Lb-In	Plug Female Sockets	9	Screw		12 AWG	30 AWG	Green	9	5 mm	0.197 in	1	115 °C	-40 C	300 V	Free Hanging (In-Line)	0.34 mm˛	2.5 mm˛	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTJ0931530	7 mm	6 mm	Brass	Brass		0.28 Nm	2.5 Lb-In	Plug Female Sockets	9	Screw	1.5 mm²	16 AWG	26 AWG	Green	9	3.81 mm	0.15 in	1	115 °C	-40 C	300 V	Free Hanging (In-Line)					1.5 mm˛
On Shore Technology Inc. OSTTJ090150	8 mm	7 mm	Brass	Brass	UL94 V-0	0.56 Nm	5 Lb-In	Plug Female Sockets	9	Screw		12 AWG	24 AWG		9	7.62 mm	0.3 in	1	105 ░C	-30 ░C	300 V	Free Hanging (In-Line)
