ECA-1HM Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP ALUM 3.3UF 20% 50V RADIAL TH

Part	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Lead Spacing	Lead Spacing	Package / Case	Lifetime @ Temp.	Polarization	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Applications	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components ECA-1HM3R3B	85 °C	-40 C	3.3 µF	0.197 "	5 mm	Can Radial	2000 Hrs	Polar	59.5 mA	35 mA	General Purpose	Through Hole	0.472 in	12 mm	20 %	0.197 in	5 mm	50 VDC

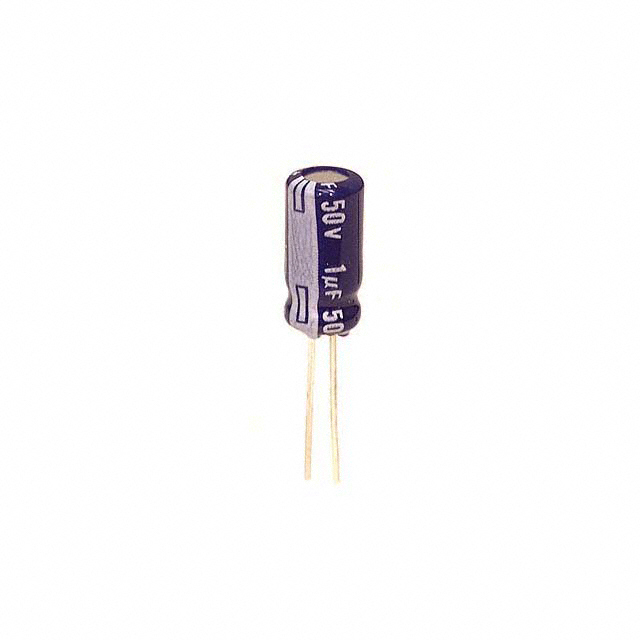

Panasonic Electronic Components ECA-1HM010I	85 °C	-40 C	1 µF	0.098 in	2.5 mm	Can Radial	2000 Hrs	Polar	17 mA	10 mA	General Purpose	Through Hole	0.472 in	12 mm	20 %	0.197 in	5 mm	50 VDC

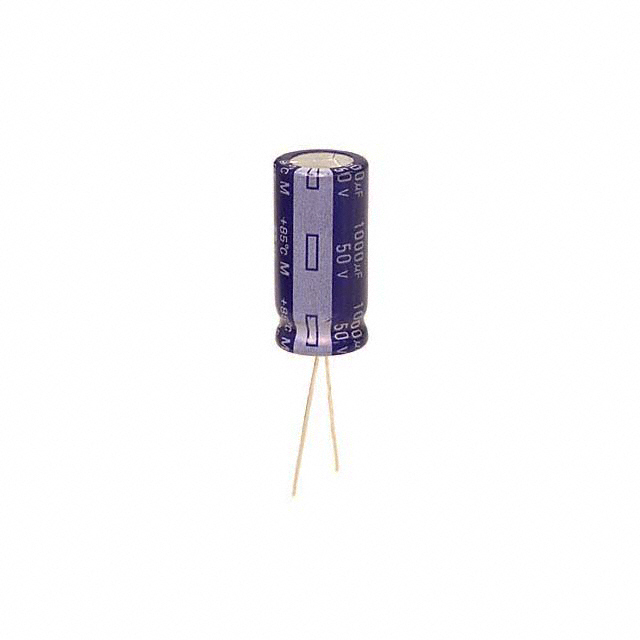

Panasonic Electronic Components ECA-1HM102	85 °C	-40 C	1000 µF	0.197 "	5 mm	Can Radial	2000 Hrs	Polar	1.785 A	1.05 A	General Purpose	Through Hole	1.063 in		20 %	0.492 in	12.5 mm	50 VDC	27 mm

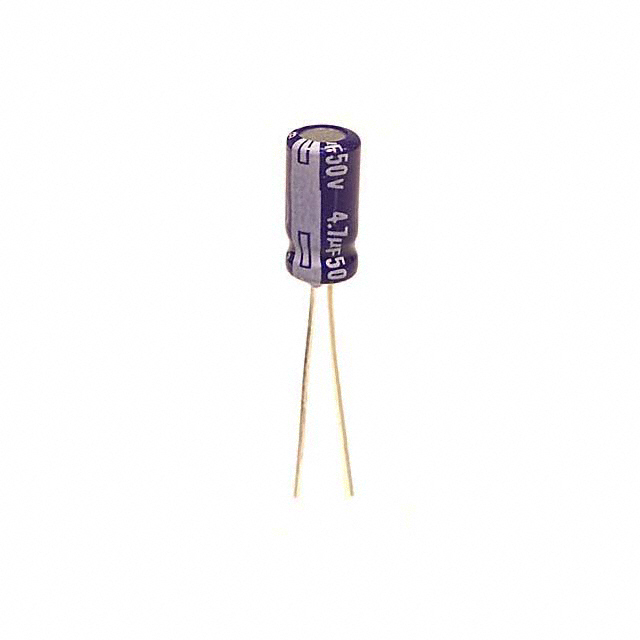

Panasonic Electronic Components ECA-1HM4R7B	85 °C	-40 C	4.7 µF	0.197 "	5 mm	Can Radial	2000 Hrs	Polar	76.5 mA	45 mA	General Purpose	Through Hole	0.472 in	12 mm	20 %	0.197 in	5 mm	50 VDC

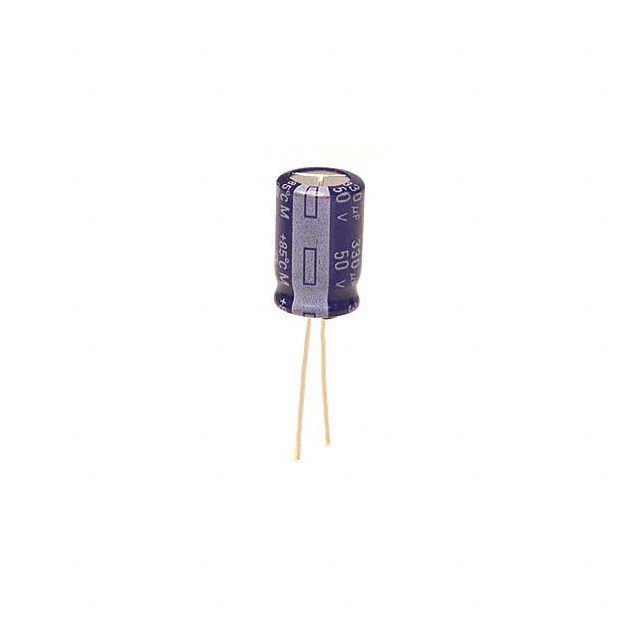

Panasonic Electronic Components ECA-1HM331B	85 °C	-40 C	330 µF	0.197 "	5 mm	Can Radial	2000 Hrs	Polar	850 mA	500 mA	General Purpose	Through Hole			20 %	0.394 in	10 mm	50 VDC	17 mm	0.669 "

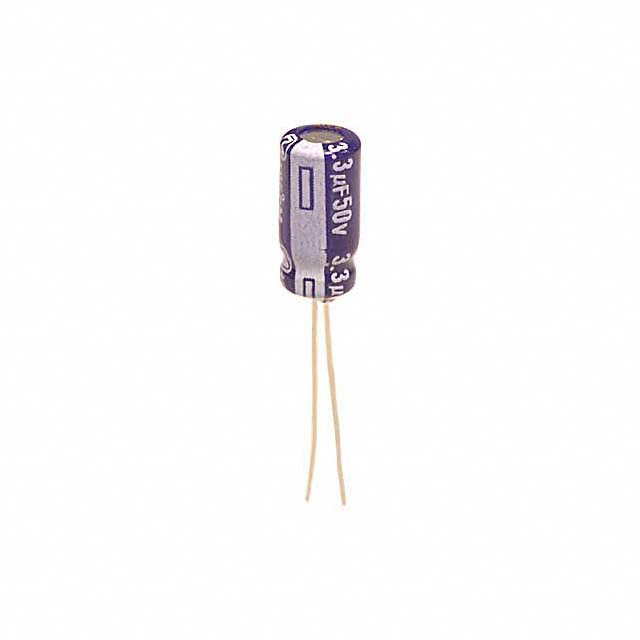

Panasonic Electronic Components ECA-1HM3R3	85 °C	-40 C	3.3 µF	0.079 in	2 mm	Can Radial	2000 Hrs	Polar	59.5 mA	35 mA	General Purpose	Through Hole	0.472 in	12 mm	20 %	0.197 in	5 mm	50 VDC
Panasonic Electronic Components ECA-1HM0R1I	85 °C	-40 C	100000 pF	0.098 in	2.5 mm	Can Radial	2000 Hrs	Polar	2.21 mA	1.3 mA	General Purpose	Through Hole	0.472 in	12 mm	20 %	0.197 in	5 mm	50 VDC

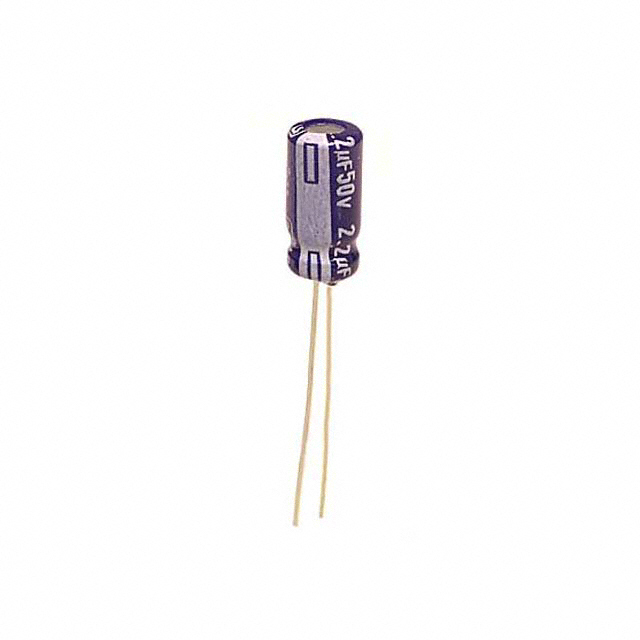

Panasonic Electronic Components ECA-1HM2R2I	85 °C	-40 C	2.2 µF	0.098 in	2.5 mm	Can Radial	2000 Hrs	Polar	34 mA	20 mA	General Purpose	Through Hole	0.472 in	12 mm	20 %	0.197 in	5 mm	50 VDC

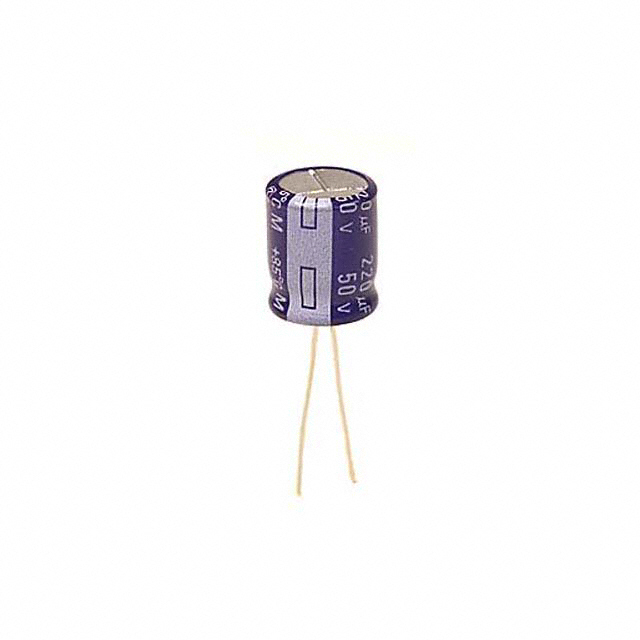

Panasonic Electronic Components ECA-1HM221	85 °C	-40 C	220 µF	0.197 "	5 mm	Can Radial	2000 Hrs	Polar	680 mA	400 mA	General Purpose	Through Hole	0.531 in		20 %	0.394 in	10 mm	50 VDC	13.5 mm
Panasonic Electronic Components ECA-1HM220	85 °C	-40 C	22 µF	0.079 in	2 mm	Can Radial	2000 Hrs	Polar	170 mA	100 mA	General Purpose	Through Hole	0.472 in	12 mm	20 %	0.197 in	5 mm	50 VDC
