AS5050 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K
SENSOR ROTARY 360DEG SMD
| Part | Output | Linearity | Package / Case | For Measuring | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Termination Style | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplier Device Package | Technology | Rotation Angle - Electrical, Mechanical [Max] | Rotation Angle - Electrical, Mechanical [Min] | Mounting Type | Supplied Contents | Contents | Interface | Utilized IC / Part | Sensor Type | Voltage - Supply | Embedded | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

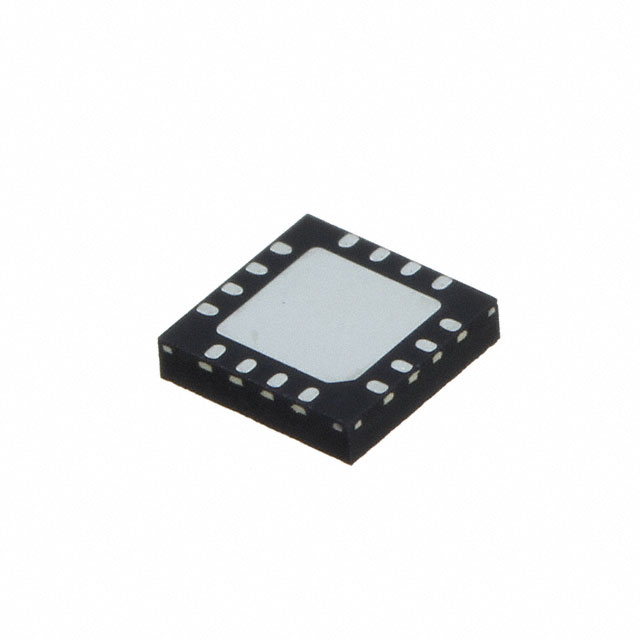

 ams-OSRAM USA INC. | SPI | 1.41 ° | 16-VQFN Exposed Pad | Rotary Position | 85 °C | -40 C | External Magnet Not Included | SMD (SMT) Tab | 3.6 V | 3 V | 16-QFN (4X4) | Hall Effect | 360 ° | 0 ° | Surface Mount | ||||||||

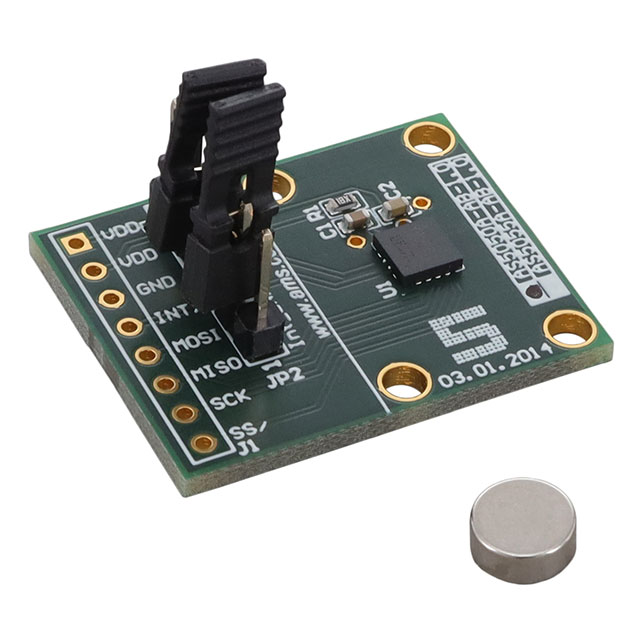

 ams-OSRAM USA INC. | 3.6 V | 3 V | Board(s) | Board(s) | SPI | AS5050A | Magnetic Rotary Position | ||||||||||||||||

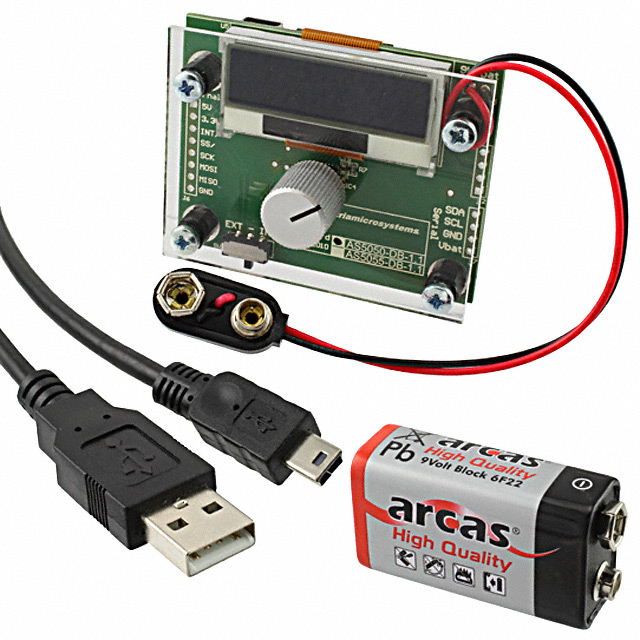

 ams-OSRAM USA INC. | Board Cable | SPI | AS5050 | Magnetic Rotary Position | 5 VDC 9 V | 8-Bit MCU |
