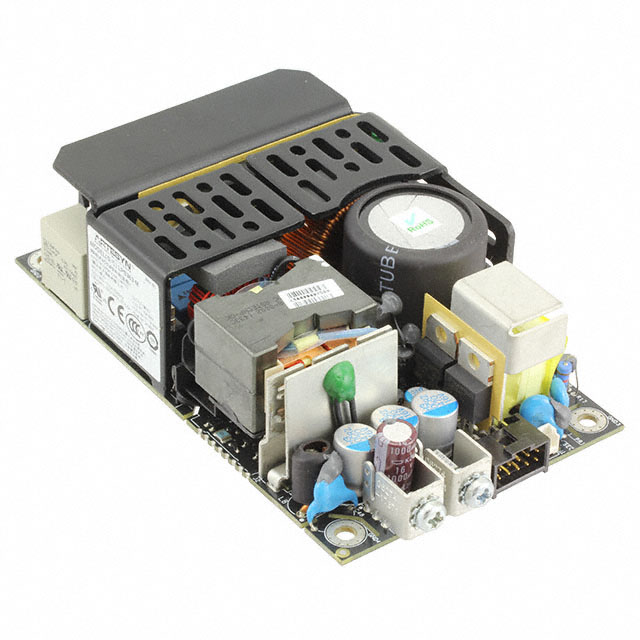

LPS365 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 24V 10A 240W 16-PIN
| Part | Minimum Load Required | Voltage - Output 1 | Efficiency | Applications | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Type | Voltage - Input [Max] | Voltage - Input [Min] | Mounting Type | Approval Agency | Power (Watts) | Power (Watts) | Features | Current - Output 1 | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 24 V | 92 % | ITE (Commercial) Medical | 5 " | 3 " | 1.37 in | 127 mm | 34.8 mm | 76.2 mm | Open Frame | 264 VAC | 90 VAC | Chassis Mount | CB CE | 240 Watts | 360 W | Adjustable Output DC Input Capable I2C Interface PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | 10 A | 1 | 70 °C | 0 °C |
