895-035 Series
Manufacturer: EDAC Inc.
Catalog

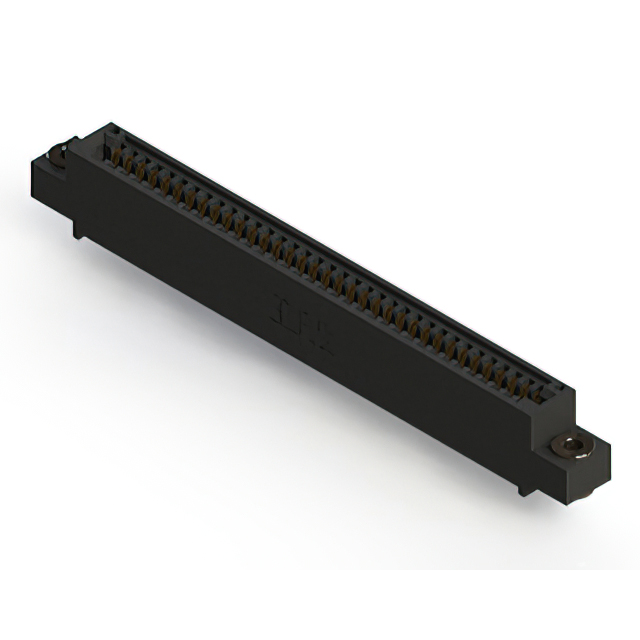

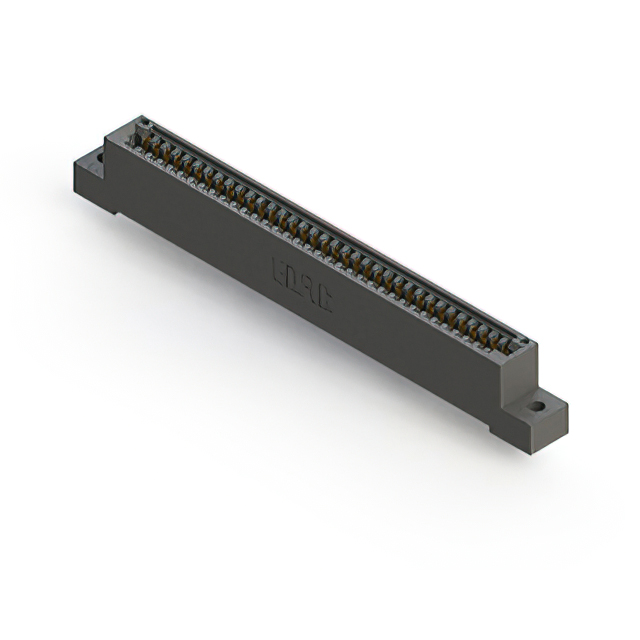

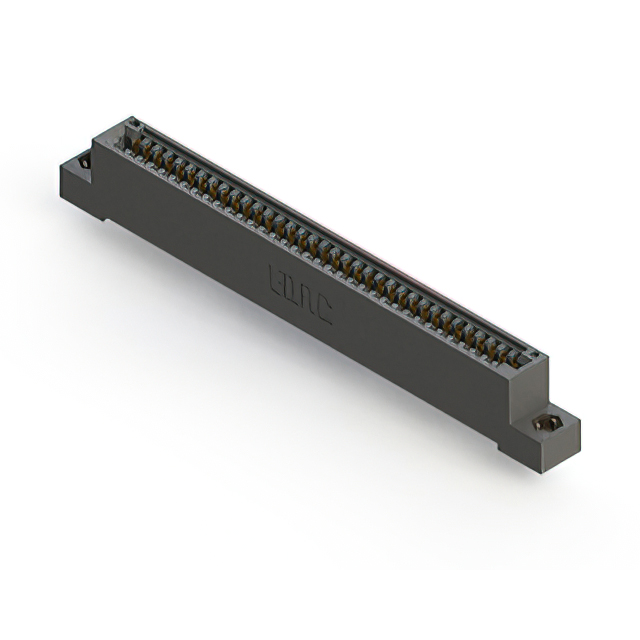

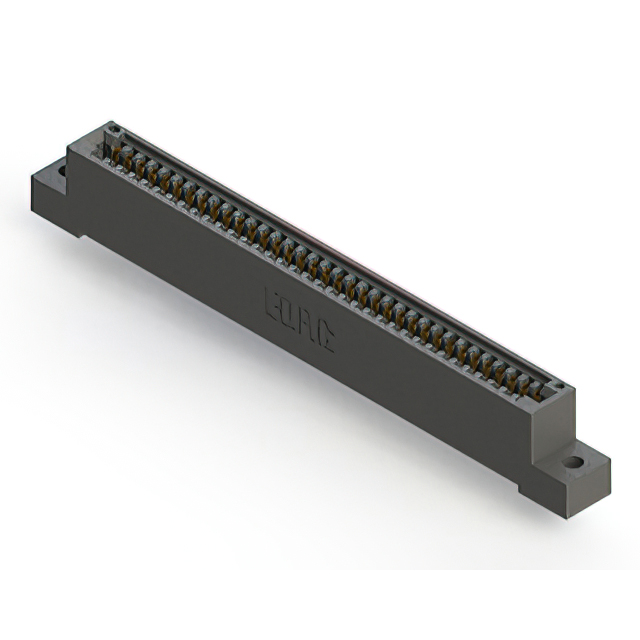

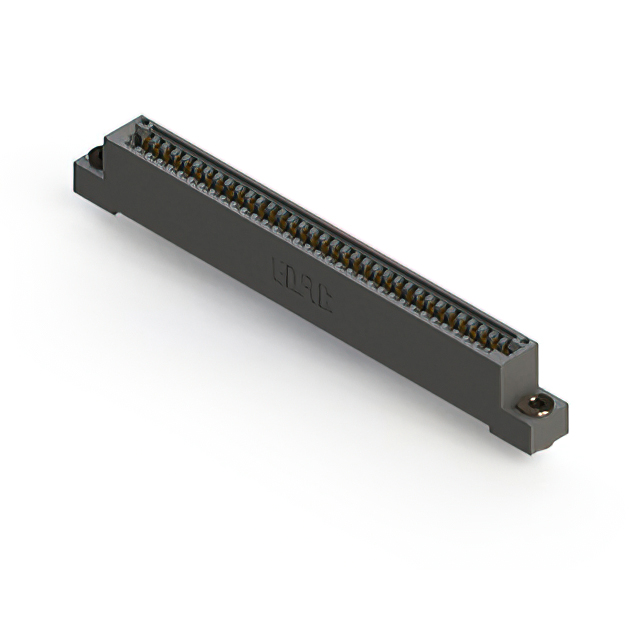

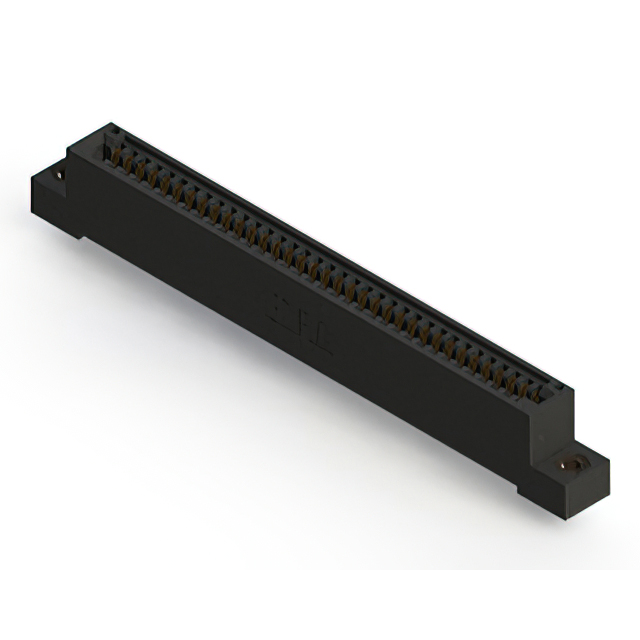

CONN EDGE SINGLE FML 35POS 0.100
...
| Part | Termination Rows | Material - Insulation | Flange Feature | Gender | Number of Rows | Pitch | Pitch | Read Out | Number of Positions/Bay/Row | Contact Material | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Color | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Contact Finish | Card Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 4-40 Threaded Insert Top Mount Opening | Female | 1 | 0.1 " | 2.54 mm | Single | 35 | Copper Alloy | Solder | 125 °C | -40 C | Cantilever | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.25 Ám | 10 Áin | 35 | Gold | Non Specified - Single Edge | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Flush Mount Top Opening Unthreaded | Female | 1 | 0.1 " | 2.54 mm | Single | 35 | Copper Alloy | Solder | 125 °C | -40 C | Cantilever | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.25 Ám | 10 Áin | 35 | Gold | Non Specified - Single Edge | 3.25 mm | 0.128 " |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 1 | 0.1 " | 2.54 mm | Single | 35 | Copper Alloy | Solder | 125 °C | -40 C | Cantilever | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.25 Ám | 10 Áin | 35 | Gold | Non Specified - Single Edge | 3.25 mm | 0.128 " | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Flush Mount Top Opening Unthreaded | Female | 1 | 0.1 " | 2.54 mm | Single | 35 | Copper Alloy | Wire Wrap | 125 °C | -40 C | Cantilever | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.25 Ám | 10 Áin | 35 | Gold | Non Specified - Single Edge | 3.25 mm | 0.128 " |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 1 | 0.1 " | 2.54 mm | Single | 35 | Copper Alloy | Wire Wrap | 125 °C | -40 C | Cantilever | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.25 Ám | 10 Áin | 35 | Gold | Non Specified - Single Edge | 3.25 mm | 0.128 " | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Flush Mount M3 Threaded Insert Top Opening | Female | 1 | 0.1 " | 2.54 mm | Single | 35 | Copper Alloy | Wire Wrap | 125 °C | -40 C | Cantilever | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.25 Ám | 10 Áin | 35 | Gold | Non Specified - Single Edge | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 1 | 0.1 " | 2.54 mm | Single | 35 | Copper Alloy | Wire Wrap | 125 °C | -40 C | Cantilever | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.25 Ám | 10 Áin | 35 | Gold | Non Specified - Single Edge | 3.96 mm | 0.156 " | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Flush Mount M3 Threaded Insert Top Opening | Female | 1 | 0.1 " | 2.54 mm | Single | 35 | Copper Alloy | Solder | 125 °C | -40 C | Cantilever | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.25 Ám | 10 Áin | 35 | Gold | Non Specified - Single Edge | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Floating Bobbin Flush Mount | Female | 1 | 0.1 " | 2.54 mm | Single | 35 | Copper Alloy | Wire Wrap | 125 °C | -40 C | Cantilever | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.25 Ám | 10 Áin | 35 | Gold | Non Specified - Single Edge | 2.95 mm | 0.116 " |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Floating Bobbin Top Mount Opening | Female | 1 | 0.1 " | 2.54 mm | Single | 35 | Copper Alloy | Solder | 125 °C | -40 C | Cantilever | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.25 Ám | 10 Áin | 35 | Gold | Non Specified - Single Edge | 2.95 mm | 0.116 " |
