9004-9213 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

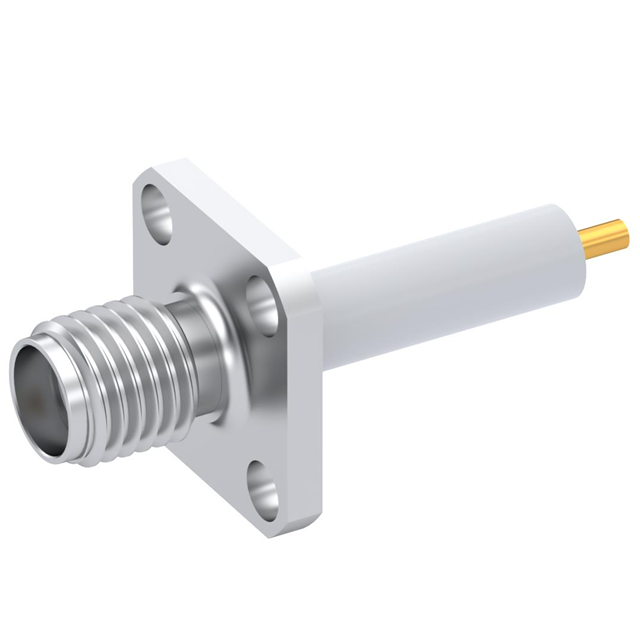

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Dielectric Material | Connector Style | Fastening Type | Features | Impedance | Mounting Type | Center Contact Material | Shield Termination | Housing Color | Frequency - Max [Max] | Number of Ports | Connector Type | Contact Termination | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | -65 ░C | 165 °C | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | SMA | Threaded | Extended Insulation | 50 Ohms | Panel Mount Through Hole | Beryllium Copper | Solder | Silver | 18 GHz | 1 | Female Socket Jack | Solder | Flange |
