796866 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

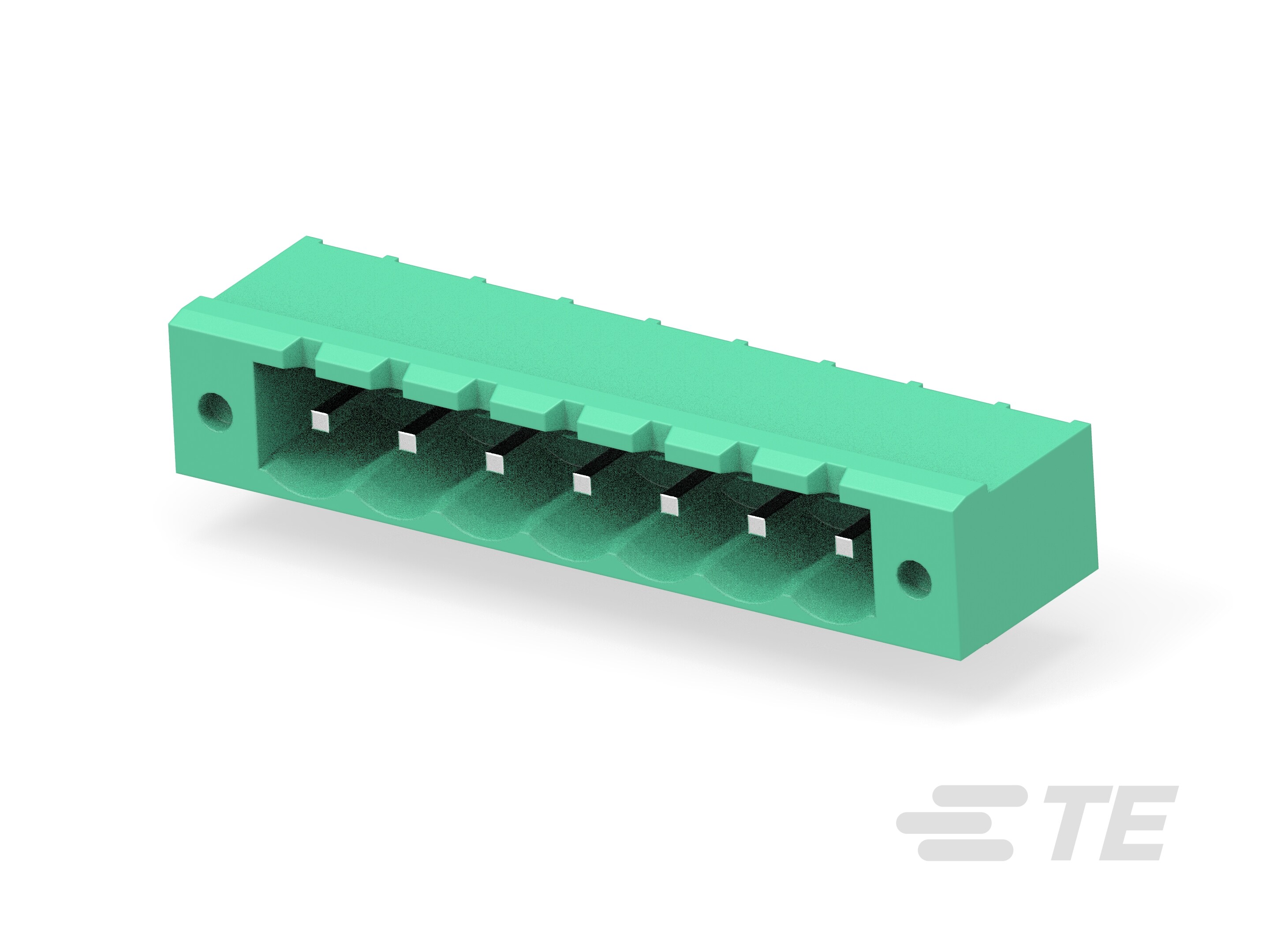

TERM BLOCK HDR 7POS 90DEG 5.08MM
| Part | Contact Tail Length | Contact Tail Length | Insulation Height [z] | Insulation Height [z] | Contact Material | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - UL | Number of Positions | Color | Contact Mating Finish | Mounting Type | Termination Style | Type | Features | Positions Per Level [custom] | Pitch | Pitch | Header Orientation | Number of Levels | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | 0.329 in | 8.36 mm | Copper Alloy | UL94 V-0 | -40 C | 110 °C | 300 V | 7 | Green | Tin | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | Mating Flange | 7 | 5.08 mm | 0.2 in | 90° Right Angle | 1 | |
 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | 0.329 in | 8.36 mm | Copper Alloy | UL94 V-0 | -40 C | 110 °C | 300 V | 12 | Green | Tin | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | Mating Flange | 5.08 mm | 0.2 in | 90° Right Angle | 1 | 12 | |
 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | 0.329 in | 8.36 mm | Copper Alloy | UL94 V-0 | -40 C | 110 °C | 300 V | 13 | Green | Tin | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | Mating Flange | 5.08 mm | 0.2 in | 90° Right Angle | 1 | 13 | |
TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | 0.329 in | 8.36 mm | Copper Alloy | UL94 V-0 | -40 C | 110 °C | 300 V | 21 | Green | Tin | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | Mating Flange | 5.08 mm | 0.2 in | 90° Right Angle | 1 | 21 | |
 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | 0.329 in | 8.36 mm | Copper Alloy | UL94 V-0 | -40 C | 110 °C | 300 V | 4 | Green | Tin | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | Mating Flange | 5.08 mm | 0.2 in | 90° Right Angle | 1 | 4 | |
TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | 0.329 in | 8.36 mm | Copper Alloy | UL94 V-0 | -40 C | 110 °C | 300 V | 15 | Green | Tin | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | Mating Flange | 5.08 mm | 0.2 in | 90° Right Angle | 1 | 15 | |
 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | 0.329 in | 8.36 mm | Copper Alloy | UL94 V-0 | -40 C | 110 °C | 300 V | 9 | Green | Tin | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | Mating Flange | 5.08 mm | 0.2 in | 90° Right Angle | 1 | 9 | |
TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | 0.329 in | 8.36 mm | Copper Alloy | UL94 V-0 | -40 C | 110 °C | 300 V | 20 | Green | Tin | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | Mating Flange | 5.08 mm | 0.2 in | 90° Right Angle | 1 | 20 | |
 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | 0.329 in | 8.36 mm | Copper Alloy | UL94 V-0 | -40 C | 110 °C | 300 V | 6 | Green | Tin | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | Mating Flange | 5.08 mm | 0.2 in | 90° Right Angle | 1 | 6 |
