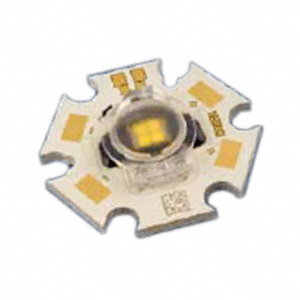

LE CW E2 Series

Catalog

LED MOD OSTAR WHT STARBRD 4200K

Part	CCT (K)	Luminous Flux @ Current/Temperature	Lens Type	Color	Height [z]	Temperature - Test	Size / Dimension [diameter]	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	Type	Lumens/Watt @ Current - Test	Current - Max [Max]	CRI (Color Rendering Index)	Configuration	Viewing Angle	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Light Emitting Surface (LES) [diameter]
ams-OSRAM USA INC. LE CW E2A-LYMZ-H3K5	4200 K	205 lm	Flat	Neutral White	2.53 mm	25 °C	19.9 mm	2.11 mm	2.11 mm	LED Module	21 lm/W	1 A	80	Starboard	120 °
ams-OSRAM USA INC. LE CW E2B-MYPX-QRRU	3500 K	365 lm	Flat	Warm White	5.25 mm	25 °C	19.9 mm			LED Module	37 lm/W	1 A	80	Starboard	130 °	520 lm	210 lm	2 mm

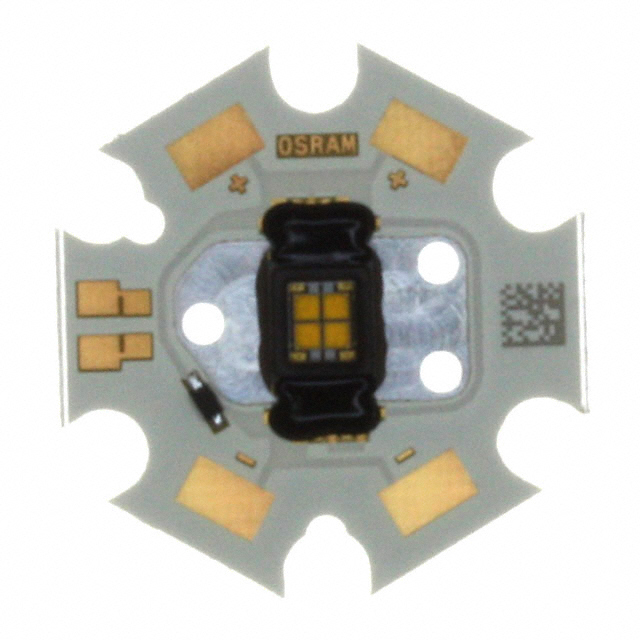

ams-OSRAM USA INC. LE CW E2A-MXNY-QRRU			Flat	Warm White	2.53 mm	25 °C	19.9 mm	2.11 mm	2.11 mm	LED Module		1 A	80	Starboard	120 °

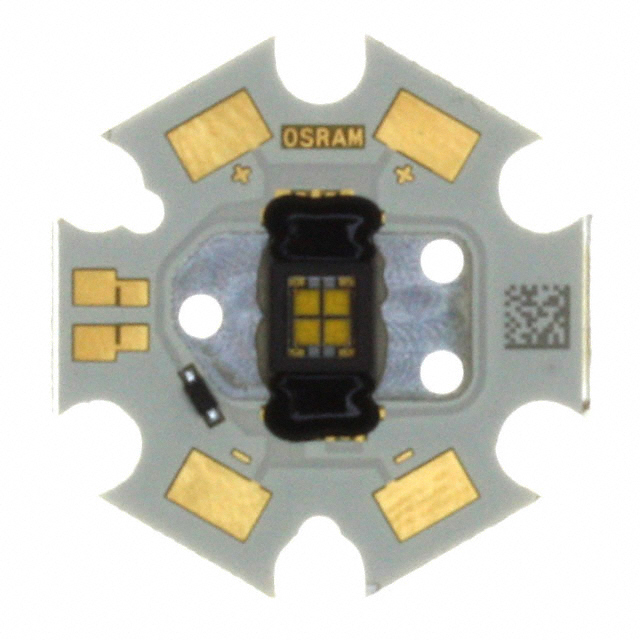

ams-OSRAM USA INC. LE CW E2A-MXNZ-ORPU			Flat	Warm White	2.53 mm	25 °C	19.9 mm	2.11 mm	2.11 mm	LED Module		1 A	80	Starboard	120 °
ams-OSRAM USA INC. LE CW E2A-LXMY-N3P5	3000 K	176 lm	Flat	Warm White	2.53 mm	25 °C	19.9 mm	2.11 mm	2.11 mm	LED Module	18 lm/W	1 A	80	Starboard	120 °

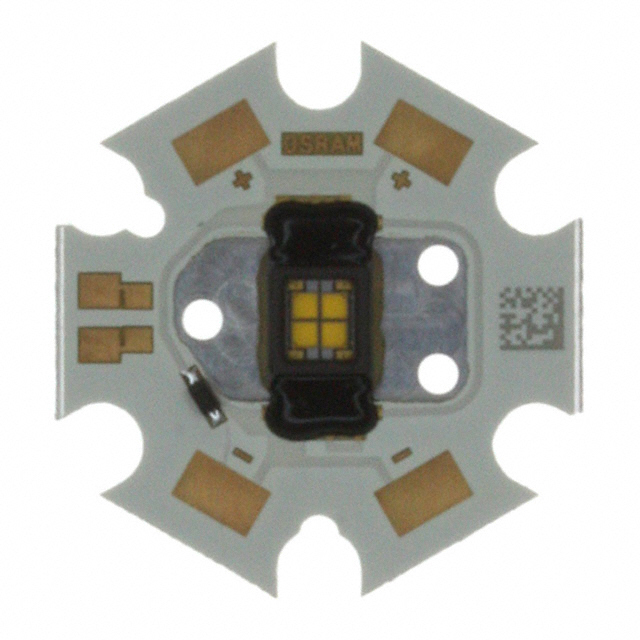

ams-OSRAM USA INC. LE CW E2A-LYNX-URVU			Flat	Warm White	2.53 mm	25 °C	19.9 mm	2.11 mm	2.11 mm	LED Module		1 A	80	Starboard	120 °

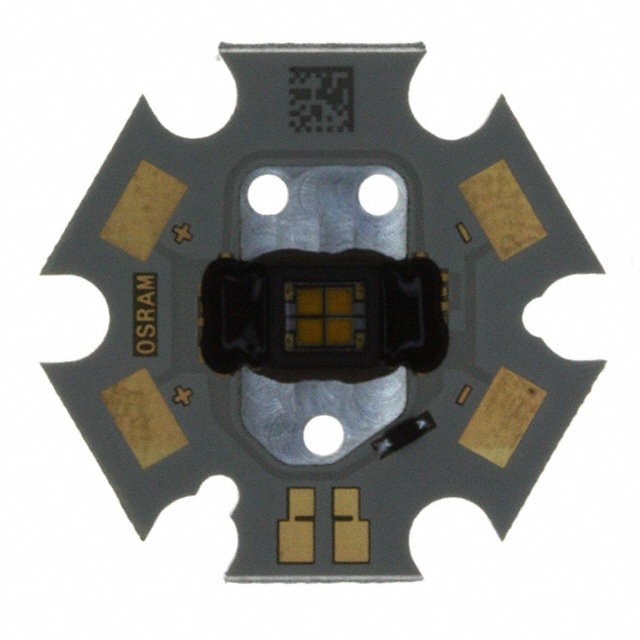

ams-OSRAM USA INC. LE CW E2A-LZNY-SRTU			Flat	Warm White	2.53 mm	25 °C	19.9 mm	2.11 mm	2.11 mm	LED Module		1 A	80	Starboard	120 °

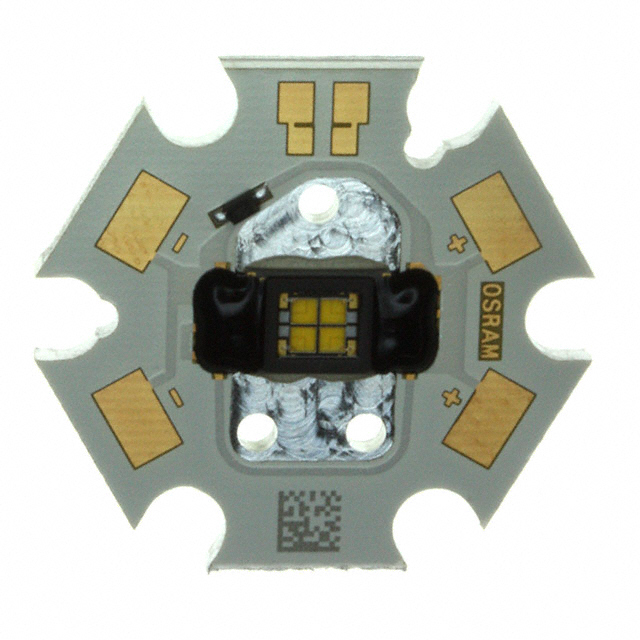

ams-OSRAM USA INC. LE CW E2A-MXNZ-MRNU			Flat	Warm White	2.53 mm	25 °C	19.9 mm	2.11 mm	2.11 mm	LED Module		1 A	80	Starboard	120 °
ams-OSRAM USA INC. LE CW E2B-MYNZ-SRTU	3000 K	330 lm	Flat	Warm White	5.25 mm	25 °C	19.9 mm			LED Module	34 lm/W	1 A	80	Starboard	130 °	450 lm	210 lm	2 mm
