M20-975 Series
Manufacturer: Harwin Inc.
Beta
⌘K

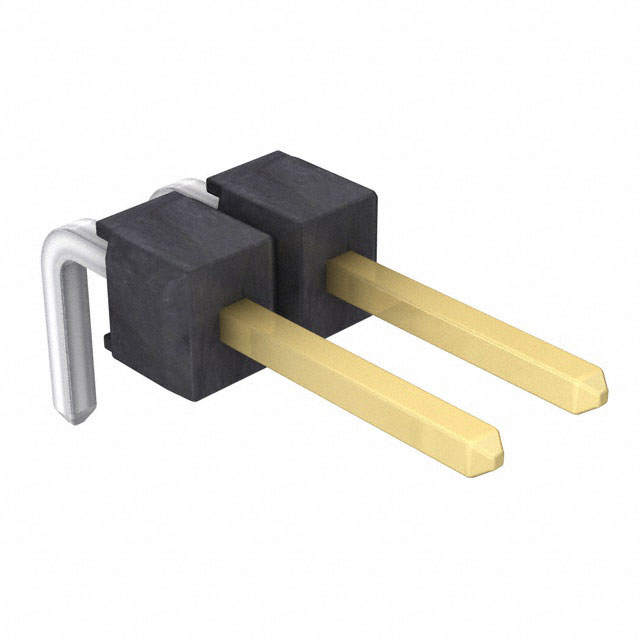

2 POS. MALE SIL HORIZONTAL THROUGHBOARD CONN. ROHS COMPLIANT: YES
| Part | Termination | Material Flammability Rating | Style | Number of Positions Loaded | Contact Material | Fastening Type | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Positions | Current Rating (Amps) | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post | Contact Finish - Mating | Insulation Material | Mounting Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Number of Rows | Shrouding | Connector Type | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Solder | UL94 V-0 | Board to Board Cable | All | Brass | Push-Pull | 0.118 in | 3 mm | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 2 | 3 A | 0.228 in | 5.8 mm | Tin | Gold | Nylon 6T Polyamide (PA6T) | Right Angle Through Hole | Male Pin | -40 C | 105 ░C | Square | 1 | Unshrouded | Header Cuttable | Black |
 Harwin Inc. | Solder | UL94 V-0 | Board to Board Cable | All | Brass | Push-Pull | 0.118 in | 3 mm | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 10 | 3 A | 0.228 in | 5.8 mm | Tin | Nylon 6T Polyamide (PA6T) | Right Angle Through Hole | Male Pin | -40 C | 105 ░C | Square | 1 | Unshrouded | Header Cuttable | Black | |
 Harwin Inc. | Solder | UL94 V-0 | Board to Board Cable | All | Brass | Push-Pull | 0.118 in | 3 mm | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 3 A | 0.228 in | 5.8 mm | Tin | Nylon 6T Polyamide (PA6T) | Right Angle Through Hole | Male Pin | -40 C | 105 ░C | Square | 1 | Unshrouded | Header Cuttable | Black | ||
 Harwin Inc. | Solder | UL94 V-0 | Board to Board Cable | All | Brass | Push-Pull | 0.118 in | 3 mm | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 16 | 3 A | 0.228 in | 5.8 mm | Tin | Nylon 6T Polyamide (PA6T) | Right Angle Through Hole | Male Pin | -40 C | 105 ░C | Square | 1 | Unshrouded | Header Cuttable | Black | |
 Harwin Inc. | Solder | UL94 V-0 | Board to Board Cable | All | Brass | Push-Pull | 0.118 in | 3 mm | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 6 | 3 A | 0.228 in | 5.8 mm | Tin | Gold | Nylon 6T Polyamide (PA6T) | Right Angle Through Hole | Male Pin | -40 C | 105 ░C | Square | 1 | Unshrouded | Header Cuttable | Black |
Harwin Inc. | Solder | UL94 V-0 | Board to Board Cable | All | Brass | Push-Pull | 0.118 in | 3 mm | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 7 | 3 A | 0.228 in | 5.8 mm | Tin | Nylon 6T Polyamide (PA6T) | Right Angle Through Hole | Male Pin | -40 C | 105 ░C | Square | 1 | Unshrouded | Header Cuttable | Black | |
Harwin Inc. | Solder | UL94 V-0 | Board to Board Cable | All | Brass | Push-Pull | 0.118 in | 3 mm | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 9 | 3 A | 0.228 in | 5.8 mm | Tin | Nylon 6T Polyamide (PA6T) | Right Angle Through Hole | Male Pin | -40 C | 105 ░C | Square | 1 | Unshrouded | Header Cuttable | Black | |
Harwin Inc. | Solder | UL94 V-0 | Board to Board Cable | All | Brass | Push-Pull | 0.118 in | 3 mm | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 12 | 3 A | 0.228 in | 5.8 mm | Tin | Nylon 6T Polyamide (PA6T) | Right Angle Through Hole | Male Pin | -40 C | 105 ░C | Square | 1 | Unshrouded | Header Cuttable | Black | |
Harwin Inc. | Solder | UL94 V-0 | Board to Board Cable | All | Brass | Push-Pull | 0.118 in | 3 mm | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 36 | 3 A | 0.228 in | 5.8 mm | Tin | Nylon 6T Polyamide (PA6T) | Right Angle Through Hole | Male Pin | -40 C | 105 ░C | Square | 1 | Unshrouded | Header Cuttable | Black | |
Harwin Inc. | Solder | UL94 V-0 | Board to Board Cable | All | Brass | Push-Pull | 0.118 in | 3 mm | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 40 | 3 A | 0.228 in | 5.8 mm | Tin | Nylon 6T Polyamide (PA6T) | Right Angle Through Hole | Male Pin | -40 C | 105 ░C | Square | 1 | Unshrouded | Header Cuttable | Black |
