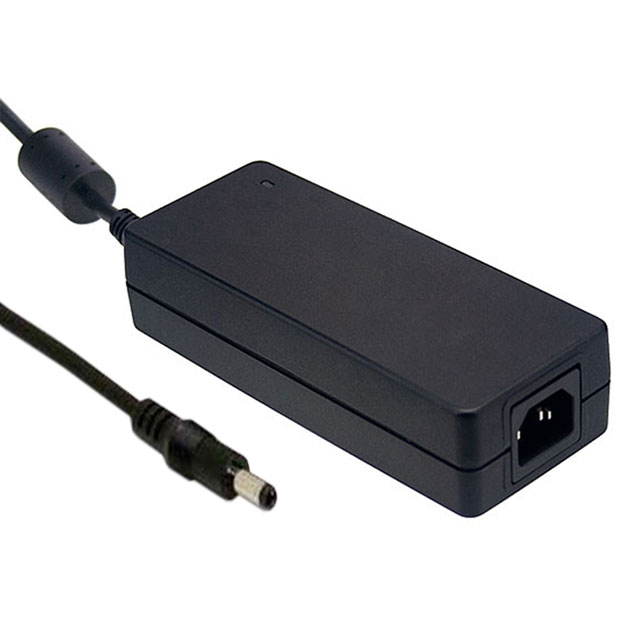

GST120A48 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC DESKTOP ADAPTER 48V 120W
| Part | Input Type | Applications | No Load Power Consumption | Output Connector [diameter] | Output Connector | Output Connector [x] | Input Connector | Cord Length | Cord Length | Region Utilized | Voltage - Output | Form | Approval Agency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Polarization | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Cord (Sold Separately) | ITE (Commercial) | 150 mW | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | IEC 320-C14 | 1.2 m | 47.2 in | International | 48 V | Desktop (Class I) | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 1.38 in | 67 mm | 35 mm | 167 mm | 2.64 " | 6.57 in | 2.5 A | -30 ░C | 70 °C | Level VI | Positive Center | 120 W |
