M2012TN Series

Catalog

SWITCH ROCKER SPDT 6A 125V

Part	Mechanical Life	Electrical Life	Circuit	Current Rating (Amps)	Mounting Type	Color - Actuator/Cap	Actuator Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - AC	Termination Style	Features	Actuator Marking	Switch Function	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC
NKK Switches M2012TNW01/UC-DA	50000 Cycles	25000 Steps	SPDT	6 A	Flange Panel Mount	Black	Concave	10.1 mm	17.8 mm	125 V	Solder Lug	Epoxy Sealed Terminals	No Marking	On-On	CSA UL	85 °C	-30 ░C

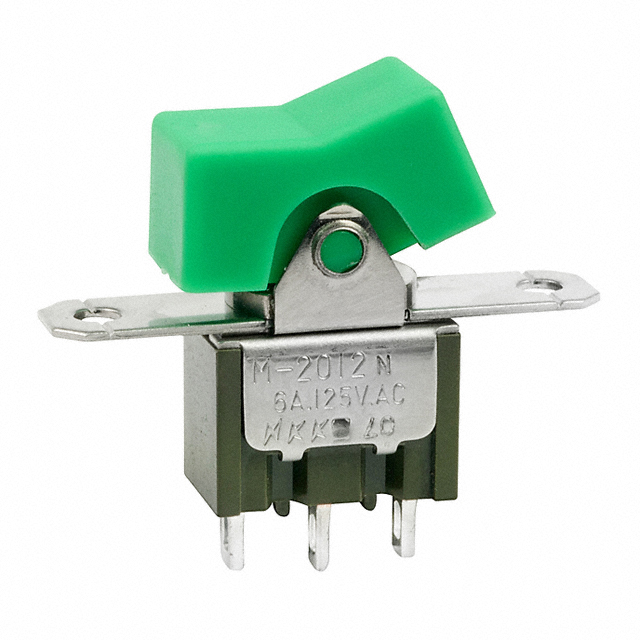

NKK Switches M2012TNW01-DF	50000 Cycles	25000 Steps	SPDT	4 A 6 A	Flange Panel Mount	Green	Concave	10.1 mm	17.8 mm	125 V	Solder Lug	Epoxy Sealed Terminals	No Marking	On-On	CSA UL	85 °C	-30 ░C	30 V

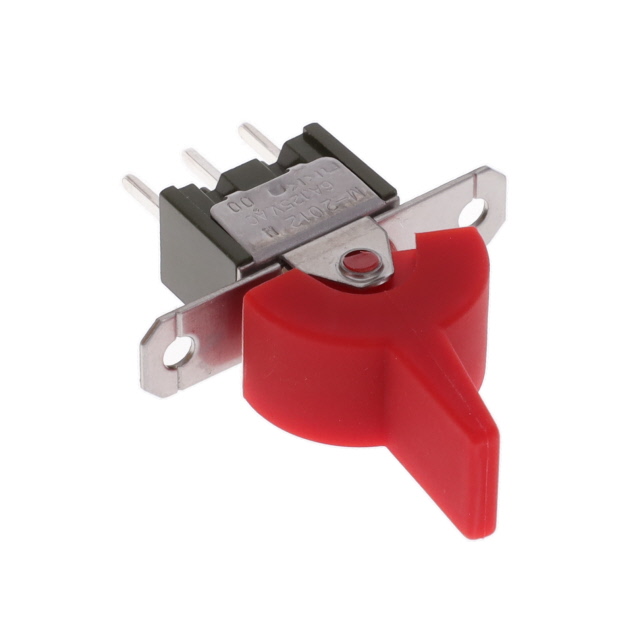

NKK Switches M2012TNW03-EC	50000 Cycles	25000 Steps	SPDT	4 A 6 A	Flange Panel Mount	Red	Paddle	10.1 mm	17.8 mm	125 V	PC Pin	Epoxy Sealed Terminals	No Marking	On-On	CSA UL	85 °C	-30 ░C	30 V

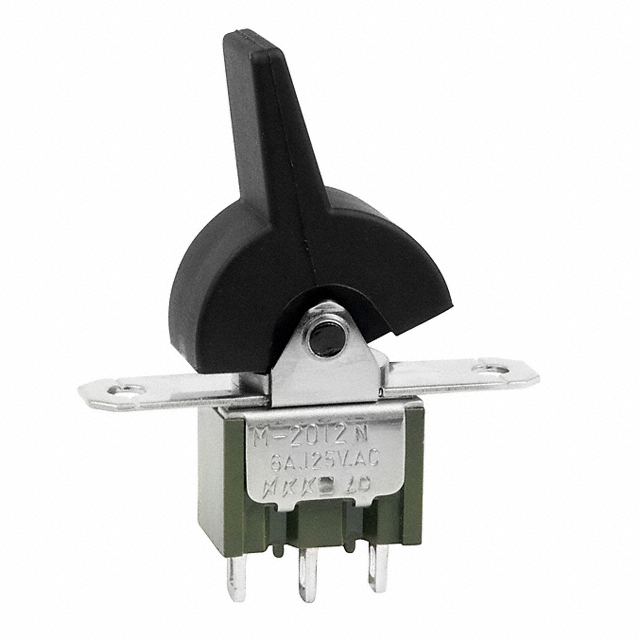

NKK Switches M2012TNW01-EA	50000 Cycles	25000 Steps	SPDT	4 A 6 A	Flange Panel Mount	Black	Paddle	10.1 mm	17.8 mm	125 V	Solder Lug	Epoxy Sealed Terminals	No Marking	On-On	CSA UL	85 °C	-30 ░C	30 V

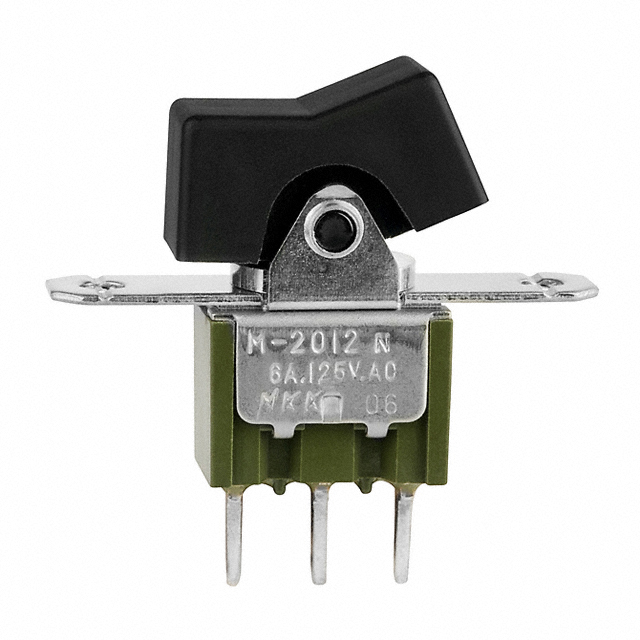

NKK Switches M2012TNW03-DA	50000 Cycles	25000 Steps	SPDT	4 A 6 A	Flange Panel Mount	Black	Concave	10.1 mm	17.8 mm	125 V	PC Pin	Epoxy Sealed Terminals	No Marking	On-On	CSA UL	85 °C	-30 ░C	30 V

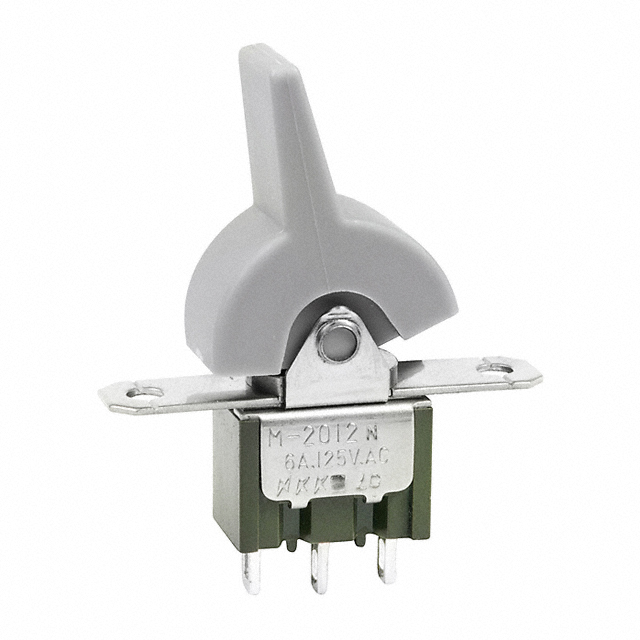

NKK Switches M2012TNW01-EH	50000 Cycles	25000 Steps	SPDT	4 A 6 A	Flange Panel Mount		Paddle	10.1 mm	17.8 mm	125 V	Solder Lug	Epoxy Sealed Terminals	No Marking	On-On	CSA UL	85 °C	-30 ░C	30 V

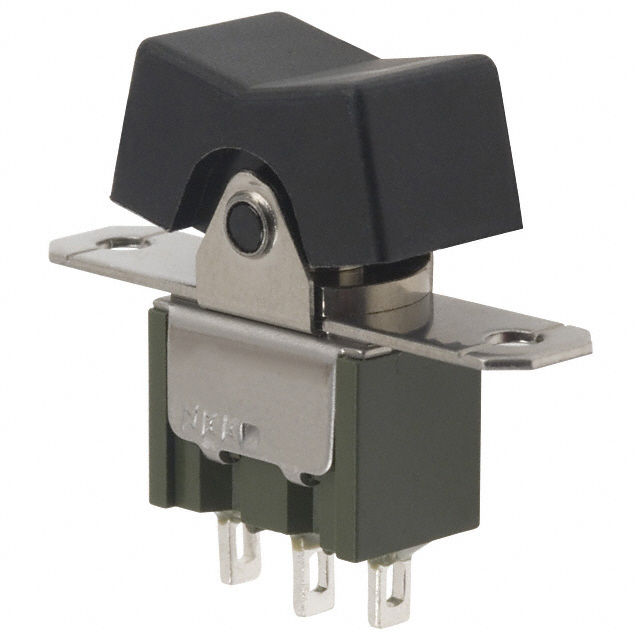

NKK Switches M2012TNW01-DA	50000 Cycles	25000 Steps	SPDT	4 A 6 A	Flange Panel Mount	Black	Concave	10.1 mm	17.8 mm	125 V	Solder Lug	Epoxy Sealed Terminals	No Marking	On-On	CSA UL	85 °C	-30 ░C	30 V
NKK Switches M2012TNW01-FA	50000 Cycles	25000 Steps	SPDT	4 A 6 A	Flange Panel Mount	Black	Concave	12.4 mm	0.5 in	125 V	Solder Lug	Epoxy Sealed Terminals	No Marking	On-On	CSA UL	85 °C	-30 ░C	30 V
NKK Switches M2012TNW03-EA	50000 Cycles	25000 Steps	SPDT	4 A 6 A	Flange Panel Mount	Black	Paddle	10.1 mm	17.8 mm	125 V	PC Pin	Epoxy Sealed Terminals	No Marking	On-On	CSA UL	85 °C	-30 ░C	30 V

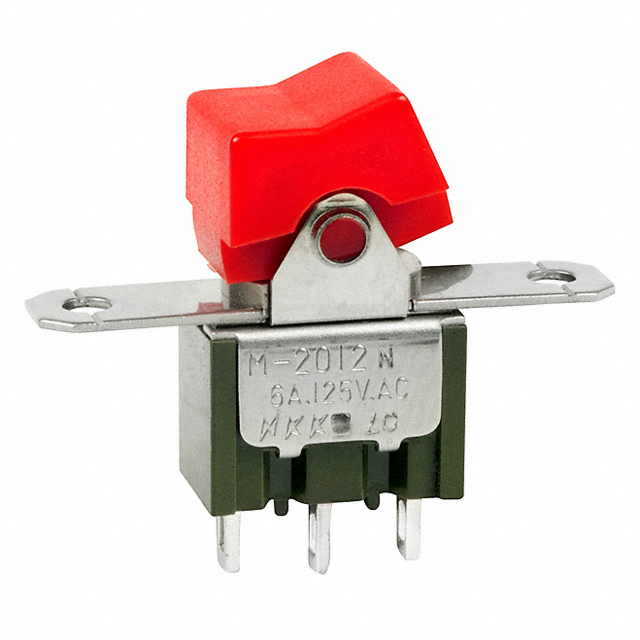

NKK Switches M2012TNW01-FC	50000 Cycles	25000 Steps	SPDT	4 A 6 A	Flange Panel Mount	Red	Concave	12.4 mm	0.5 in	125 V	Solder Lug	Epoxy Sealed Terminals	No Marking	On-On	CSA UL	85 °C	-30 ░C	30 V
