2823360 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,SHRD HDR,DRRT,2.8,0.76AU,

Part	Connector Type	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Termination	Mounting Type	Fastening Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Type	Current Rating (Amps)	Insulation Height	Insulation Height	Insulation Material	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Finish - Mating	Contact Finish - Post	Insulation Color	Contact Shape	Number of Positions
TE Connectivity Raychem Cable Protection 2823360-6	Header	2	0.11 in	2.8 mm	Phosphor Bronze	4 mm	0.157 in	125 °C	-40 °C	157.5 Áin	4 Ám	0.079 in	2 mm	All	Solder	Through Hole Right Angle	Detent Lock	Shrouded - 2 Wall	30 Áin	0.76 Ám	UL94 V-0	Male Pin	2 A	0.244 in	6.2 mm	Thermoplastic	6	0.079 in	2 mm	125 VAC	Gold	Tin	Black	Square

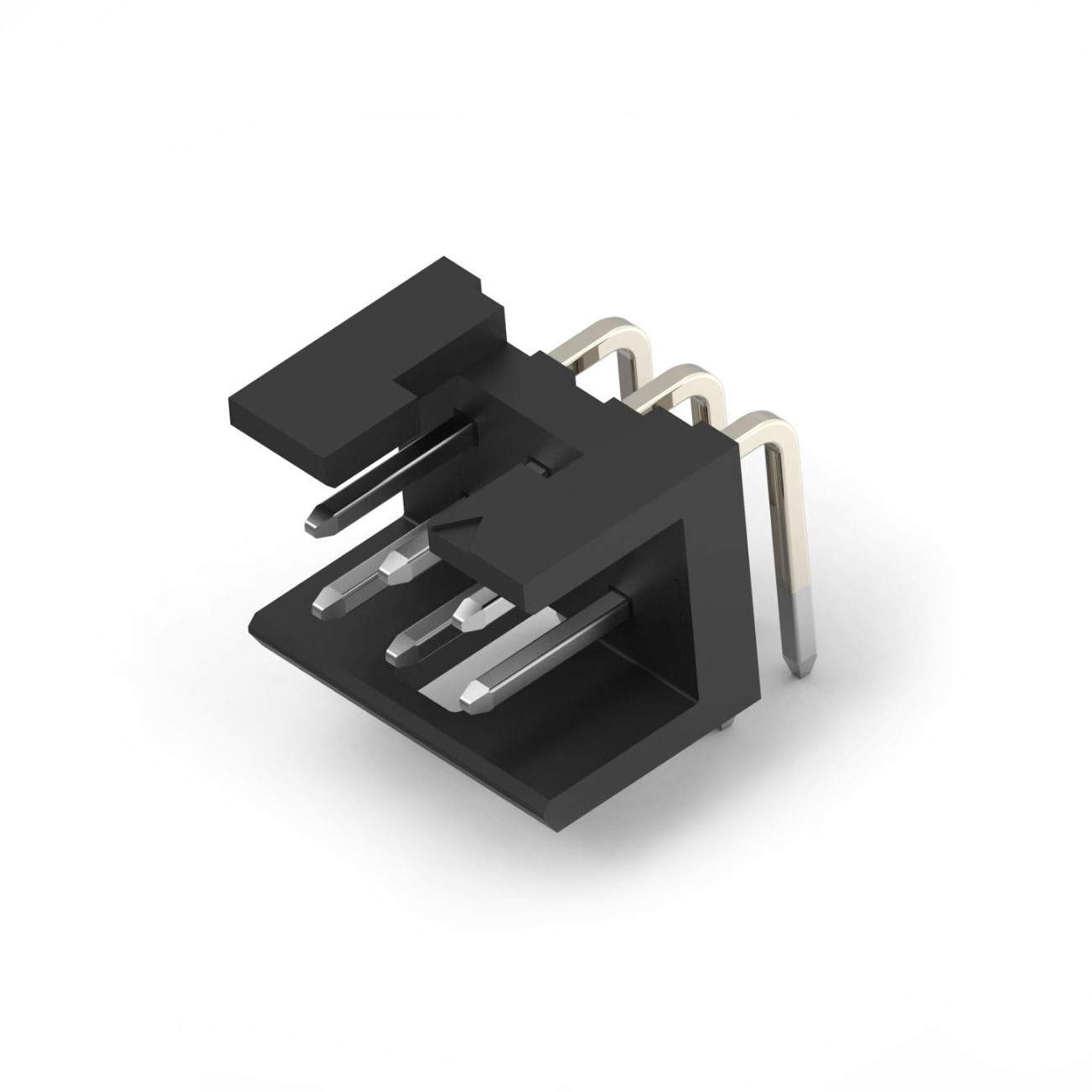

TE Connectivity Raychem Cable Protection 2-2823360-0	Header	2	0.11 in	2.8 mm	Phosphor Bronze	4 mm	0.157 in	125 °C	-40 °C	157.5 Áin	4 Ám	0.079 in	2 mm	All	Solder	Through Hole Right Angle	Detent Lock	Shrouded - 2 Wall	30 Áin	0.76 Ám	UL94 V-0	Male Pin	2 A	0.244 in	6.2 mm	Thermoplastic	20	0.079 in	2 mm	125 VAC	Gold	Tin	Black	Square

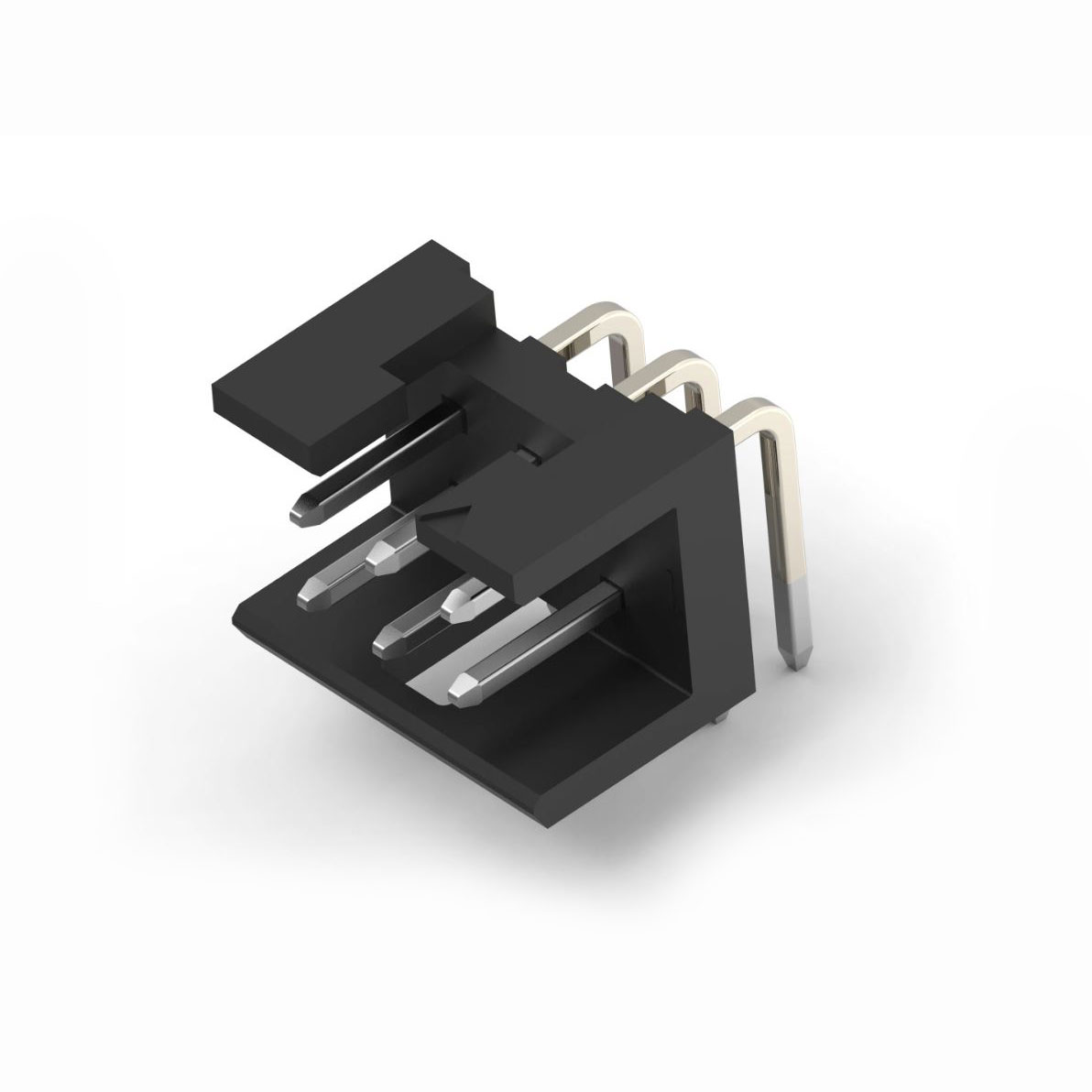

TE Connectivity Raychem Cable Protection 5-2823360-0	Header	2	0.11 in	2.8 mm	Phosphor Bronze	4 mm	0.157 in	125 °C	-40 °C	157.5 Áin	4 Ám	0.079 in	2 mm	All	Solder	Through Hole Right Angle	Detent Lock	Shrouded - 2 Wall	30 Áin	0.76 Ám	UL94 V-0	Male Pin	2 A	0.244 in	6.2 mm	Thermoplastic	50	0.079 in	2 mm	125 VAC	Gold	Tin	Black	Square
TE Connectivity Raychem Cable Protection 2823360-8	Header	2	0.11 in	2.8 mm	Phosphor Bronze	4 mm	0.157 in	125 °C	-40 °C	157.5 Áin	4 Ám	0.079 in	2 mm	All	Solder	Through Hole Right Angle	Detent Lock	Shrouded - 2 Wall	30 Áin	0.76 Ám	UL94 V-0	Male Pin	2 A	0.244 in	6.2 mm	Thermoplastic	8	0.079 in	2 mm	125 VAC	Gold	Tin	Black	Square

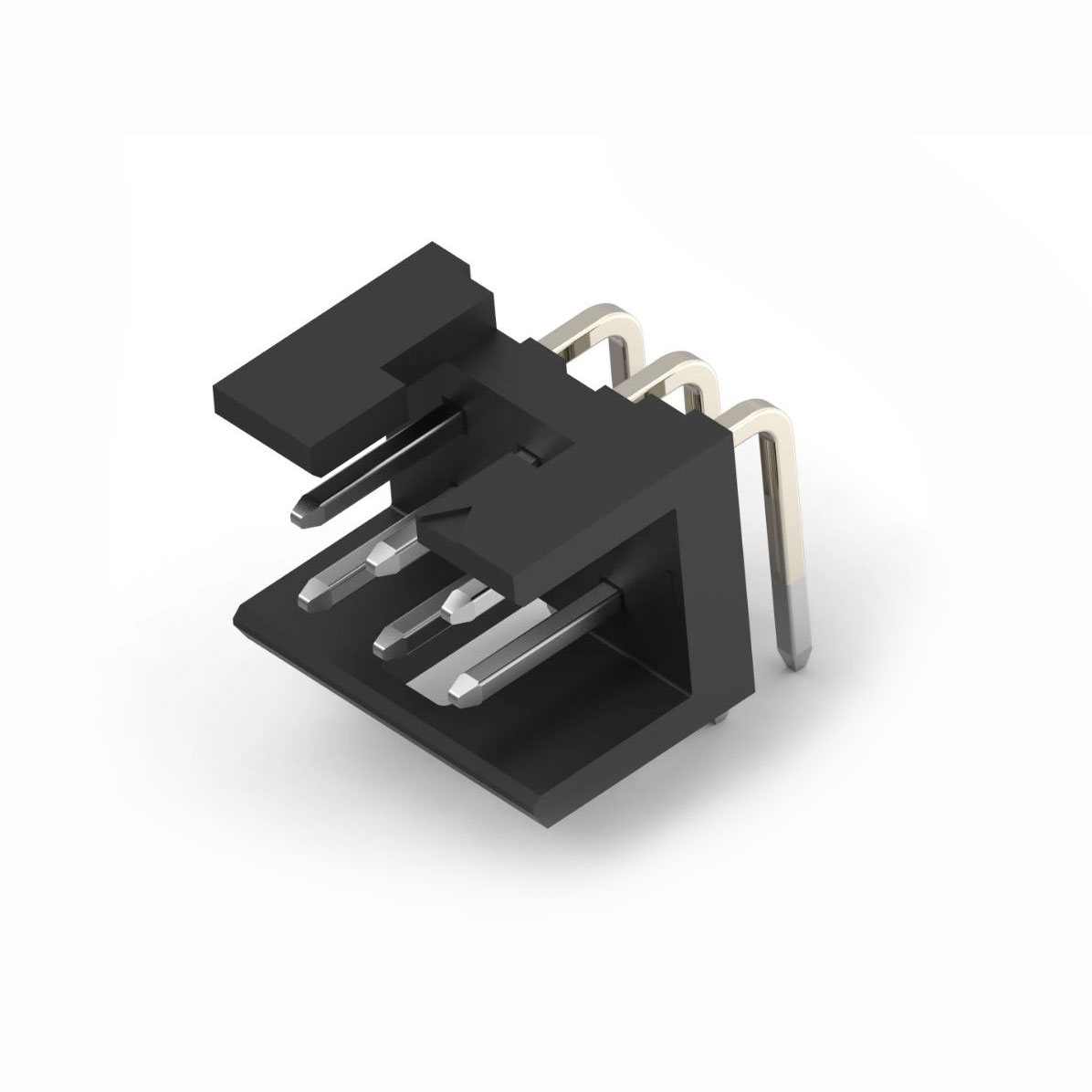

TE Connectivity Raychem Cable Protection 1-2823360-8	Header	2	0.11 in	2.8 mm	Phosphor Bronze	4 mm	0.157 in	125 °C	-40 °C	157.5 Áin	4 Ám	0.079 in	2 mm	All	Solder	Through Hole Right Angle	Detent Lock	Shrouded - 2 Wall	30 Áin	0.76 Ám	UL94 V-0	Male Pin	2 A	0.244 in	6.2 mm	Thermoplastic	18	0.079 in	2 mm	125 VAC	Gold	Tin	Black	Square
TE Connectivity Raychem Cable Protection 1-2823360-0	Header	2	0.11 in	2.8 mm	Phosphor Bronze	4 mm	0.157 in	125 °C	-40 °C	157.5 Áin	4 Ám	0.079 in	2 mm	All	Solder	Through Hole Right Angle	Detent Lock	Shrouded - 2 Wall	30 Áin	0.76 Ám	UL94 V-0	Male Pin	2 A	0.244 in	6.2 mm	Thermoplastic	10	0.079 in	2 mm	125 VAC	Gold	Tin	Black	Square
TE Connectivity Raychem Cable Protection 1-2823360-6	Header	2	0.11 in	2.8 mm	Phosphor Bronze	4 mm	0.157 in	125 °C	-40 °C	157.5 Áin	4 Ám	0.079 in	2 mm	All	Solder	Through Hole Right Angle	Detent Lock	Shrouded - 2 Wall	30 Áin	0.76 Ám	UL94 V-0	Male Pin	2 A	0.244 in	6.2 mm	Thermoplastic		0.079 in	2 mm	125 VAC	Gold	Tin	Black	Square	16

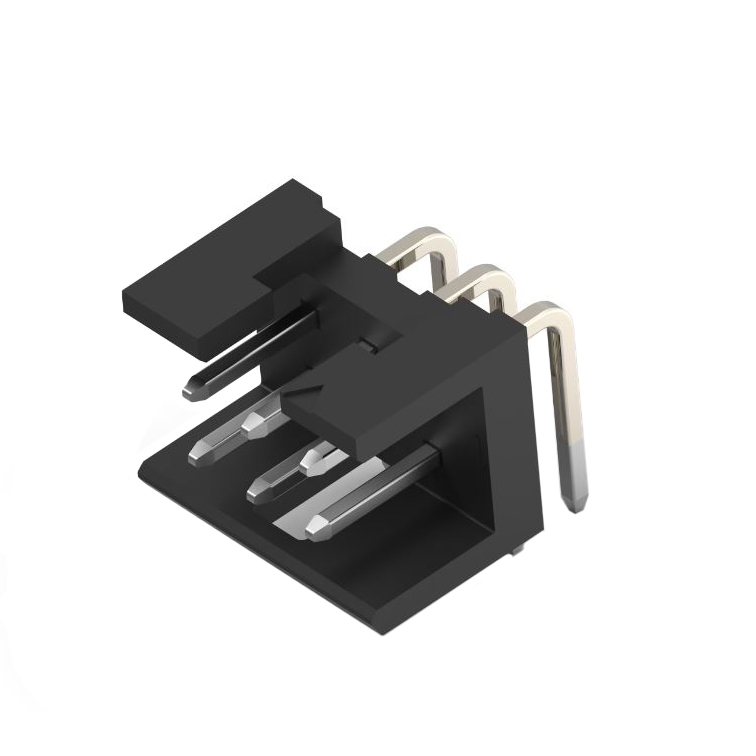

TE Connectivity Raychem Cable Protection 1-2823360-2	Header	2	0.11 in	2.8 mm	Phosphor Bronze	4 mm	0.157 in	125 °C	-40 °C	157.5 Áin	4 Ám	0.079 in	2 mm	All	Solder	Through Hole Right Angle	Detent Lock	Shrouded - 2 Wall	30 Áin	0.76 Ám	UL94 V-0	Male Pin	2 A	0.244 in	6.2 mm	Thermoplastic	12	0.079 in	2 mm	125 VAC	Gold	Tin	Black	Square
TE Connectivity Raychem Cable Protection 2823360-4	Header	2	0.11 in	2.8 mm	Phosphor Bronze	4 mm	0.157 in	125 °C	-40 °C	157.5 Áin	4 Ám	0.079 in	2 mm	All	Solder	Through Hole Right Angle	Detent Lock	Shrouded - 2 Wall	30 Áin	0.76 Ám	UL94 V-0	Male Pin	2 A	0.244 in	6.2 mm	Thermoplastic	4	0.079 in	2 mm	125 VAC	Gold	Tin	Black	Square
TE Connectivity Raychem Cable Protection 4-2823360-0	Header	2	0.11 in	2.8 mm	Phosphor Bronze	4 mm	0.157 in	125 °C	-40 °C	157.5 Áin	4 Ám	0.079 in	2 mm	All	Solder	Through Hole Right Angle	Detent Lock	Shrouded - 2 Wall	30 Áin	0.76 Ám	UL94 V-0	Male Pin	2 A	0.244 in	6.2 mm	Thermoplastic	40	0.079 in	2 mm	125 VAC	Gold	Tin	Black	Square
