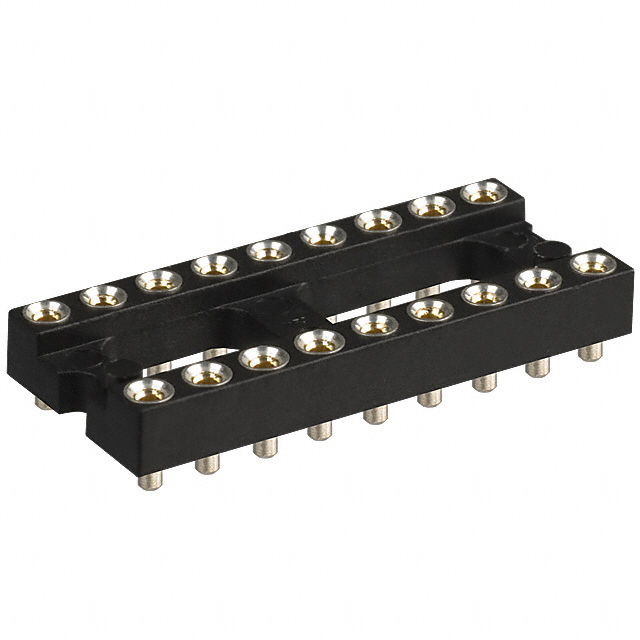

BU180Z Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
CONN IC DIP SOCKET 18POS GOLD
| Part | Current Rating (Amps) | Material Flammability Rating | Termination Post Length | Termination Post Length | Contact Resistance | Features | Number of Positions or Pins (Grid) | Pitch - Mating | Pitch - Mating | Contact Material - Mating | Pitch - Post | Pitch - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Type | Type | Type | Mounting Type | Contact Finish Thickness - Post | Contact Material - Post [custom] | Contact Finish - Mating | Housing Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1 A | UL94 V-0 | 0.059 " | 1.5 mm | 7 mOhm | Open Frame | 18 | 0.1 " | 2.54 mm | Beryllium Copper | 0.1 in | 2.54 mm | -55 C | 125 °C | Copper | 7.62 mm | 0.3 in | DIP | Surface Mount | Flash | Brass | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 78.7 µin | 2 µm | Solder |
