R12307 Series

Catalog

QMA / STRAIGHT PLUG FULL CRIMP T

Part	Body Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Dielectric Material	Voltage Rating	Center Contact Plating	Number of Ports	Cable Group	Fastening Type	Contact Termination	Housing Color	Shield Termination	Frequency - Max [Max]	Connector Type	Center Contact Material	Mounting Type	Impedance	Cable Group
Radiall USA, Inc. R123076000W	Brass	White Bronze	-40 C	105 ░C	0.25 dB	Polytetrafluoroethylene (PTFE)	335 V	Gold	1	223 400 RG-142	Snap-On	Crimp	Silver	Crimp	6000 MHz	Plug Male Pin	Brass	Free Hanging (In-Line)	50 Ohms

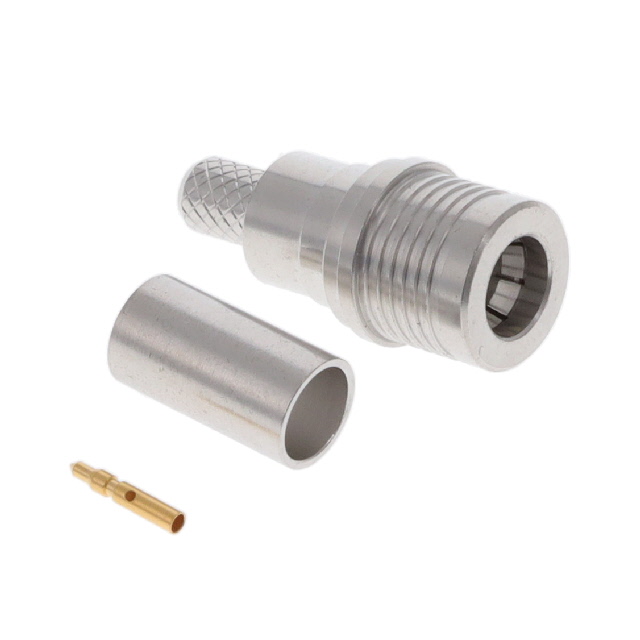

Radiall USA, Inc. R123075000W	Brass	White Bronze	-40 C	105 ░C	0.25 dB	Polytetrafluoroethylene (PTFE)	335 V	Gold	1	RG-58	Snap-On	Crimp	Silver	Crimp	6000 MHz	Plug Male Pin	Brass	Free Hanging (In-Line)	50 Ohms	141

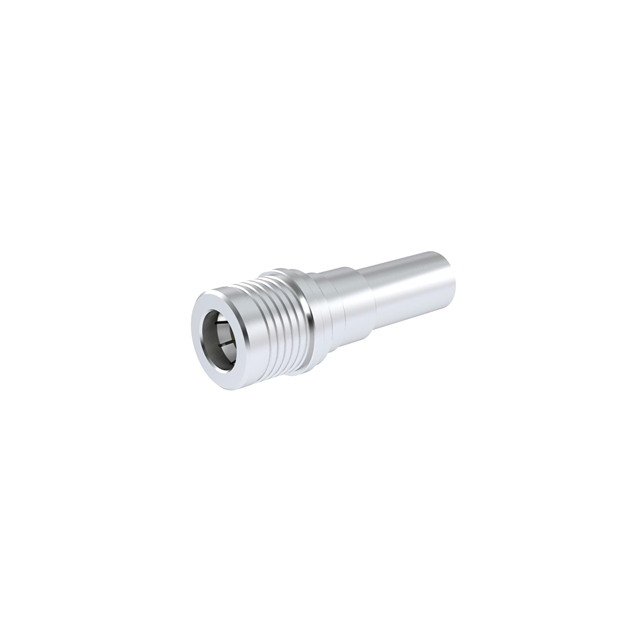

Radiall USA, Inc. R123075200	Brass	White Bronze	-40 C	105 ░C		Polytetrafluoroethylene (PTFE)	335 V	Gold	1	RG-58	Snap-On	Crimp	Silver	Crimp	6000 MHz	Plug Male Pin	Brass	Free Hanging (In-Line)	50 Ohms	141

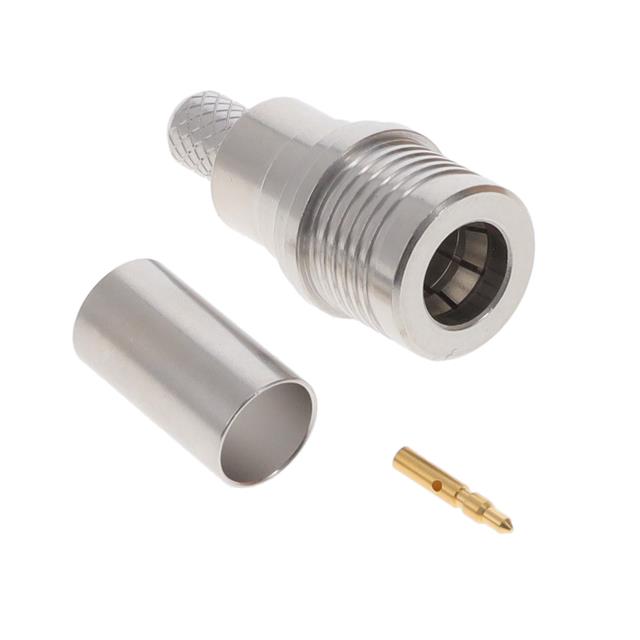

Radiall USA, Inc. R123076000	Brass	White Bronze	-40 C	105 ░C	0.25 dB	Polytetrafluoroethylene (PTFE)	335 V	Gold	1	223 400 RG-142	Snap-On	Crimp	Silver	Crimp	6000 MHz	Plug Male Pin	Brass	Free Hanging (In-Line)	50 Ohms
Radiall USA, Inc. R123071000W	Brass	White Bronze	-40 C	105 ░C	0.25 dB	Polytetrafluoroethylene (PTFE)	250 V	Gold	1	316 RG-188	Snap-On	Crimp	Silver	Crimp	6000 MHz	Plug Male Pin	Brass	Free Hanging (In-Line)	50 Ohms

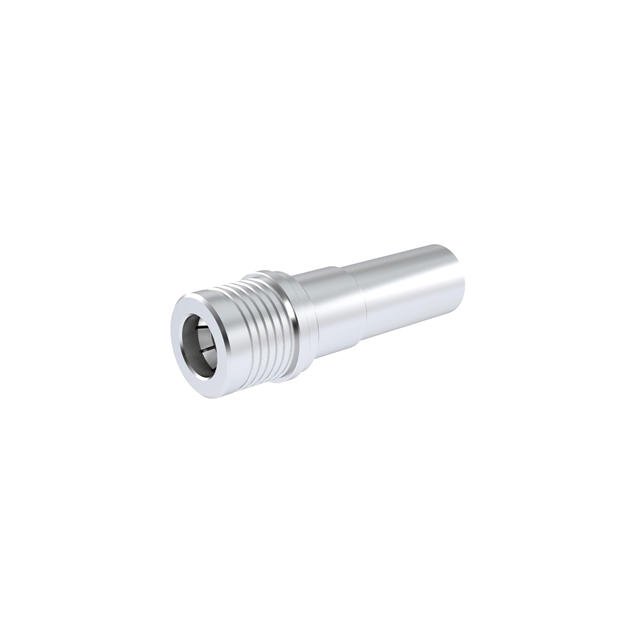

Radiall USA, Inc. R123076310	Brass	White Bronze	-40 C	105 ░C	0.25 dB	Polytetrafluoroethylene (PTFE)	335 V	Gold	1	LMR-240	Snap-On	Crimp	Silver	Crimp	6000 MHz	Plug Male Pin	Brass	Free Hanging (In-Line)	50 Ohms
Radiall USA, Inc. R123075000	Brass	White Bronze	-40 C	105 ░C	0.25 dB	Polytetrafluoroethylene (PTFE)	335 V	Gold	1	RG-58	Snap-On	Crimp	Silver	Crimp	6000 MHz	Plug Male Pin	Brass	Free Hanging (In-Line)	50 Ohms	141

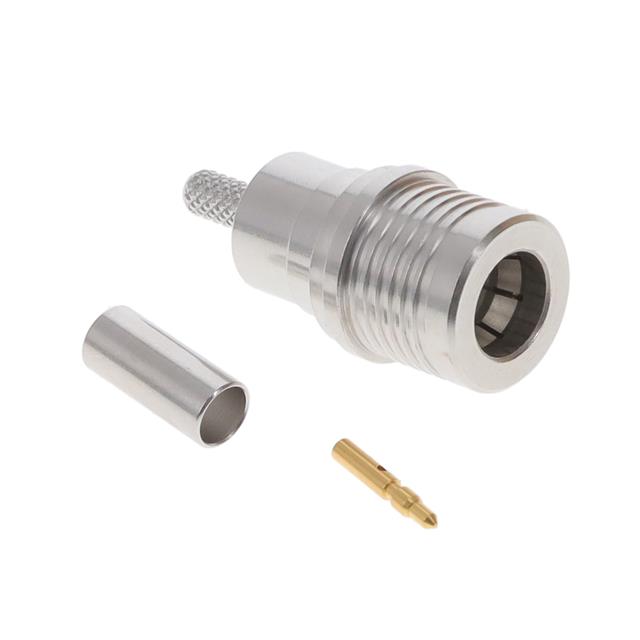

Radiall USA, Inc. R123071000	Brass	White Bronze	-40 C	105 ░C	0.25 dB	Polytetrafluoroethylene (PTFE)	335 V	Gold	1	316 RG-188	Snap-On	Crimp	Silver	Crimp	6000 MHz	Plug Male Pin	Brass	Free Hanging (In-Line)	50 Ohms

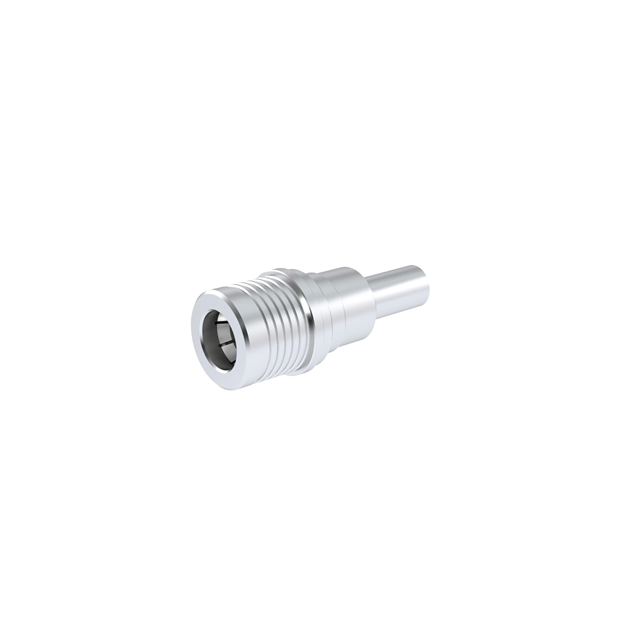

Radiall USA, Inc. R123072000	Brass	White Bronze	-40 C	105 ░C		Polytetrafluoroethylene (PTFE)	250 V	Gold	1	RG-316 Double Braid	Snap-On	Crimp	Silver	Crimp	6000 MHz	Plug Male Pin	Brass	Free Hanging (In-Line)	50 Ohms
