LW3122 Series

Catalog

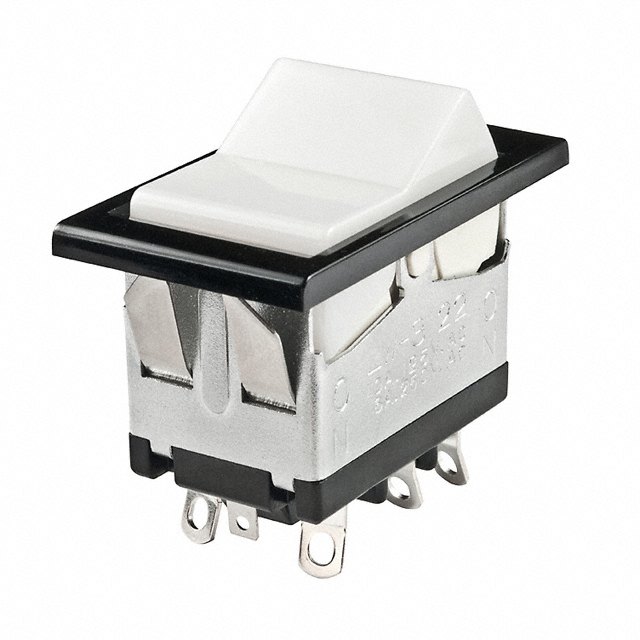

SWITCH ROCKER DPDT 10A 125V

Part	Electrical Life	Mechanical Life	Voltage Rating - DC	Switch Function	Termination Style	Circuit	Illumination Voltage (Nominal)	Approval Agency	Mounting Type	Actuator Type	Color - Actuator/Cap	Features	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating (Amps)	Actuator Marking	Illumination Type, Color
NKK Switches LW3122-K3CF-A	10000 Cycles	30000 Steps	30 V	On-On	Solder Lug	DPDT	24 VAC	CSA UL	Panel Mount Snap-In	Concave (Standard V) - Illuminated	White	With Lamp Covers	125 V	-20 ░C	50 °C	32 mm	19.8 mm	6 A 10 A	No Marking	Green/Red Incandescent
NKK Switches LW3122-F2DC-A	10000 Cycles	30000 Steps	30 V	On-On	Solder Lug	DPDT	12 VAC	CSA UL	Panel Mount Snap-In	Concave (Standard V) - Illuminated	White		125 V	-20 ░C	50 °C	32 mm	19.8 mm	6 A 10 A	No Marking	Amber/Red Incandescent
NKK Switches LW3122-F3CC-G	10000 Cycles	30000 Steps	30 V	On-On	Solder Lug	DPDT	12 VAC	CSA UL	Panel Mount Snap-In	Concave (Standard V) - Illuminated	White	With Lamp Covers	125 V	-20 ░C	50 °C	32 mm	19.8 mm	6 A 10 A	No Marking	Incandescent Red
NKK Switches LW3122-F2CG-A	10000 Cycles	30000 Steps	30 V	On-On	Solder Lug	DPDT	12 VAC	CSA UL	Panel Mount Snap-In	Concave (Standard V) - Illuminated	White		125 V	-20 ░C	50 °C	32 mm	19.8 mm	6 A 10 A	No Marking	Blue Incandescent Red
NKK Switches LW3122-L4FC-A	10000 Cycles	30000 Steps	30 V	On-On	Solder Lug	DPDT	28 VAC	CSA UL	Panel Mount Snap-In	Concave (Standard V) - Illuminated	Clear (Red Green Filter/Diffuser)		125 V	-20 ░C	50 °C	32 mm	19.8 mm	6 A 10 A	No Marking	Green/Red Incandescent
NKK Switches LW3122-L3FD-H	10000 Cycles	30000 Steps	30 V	On-On	Solder Lug	DPDT	28 VAC	CSA UL	Panel Mount Snap-In	Concave (Standard V) - Illuminated	White	With Lamp Covers	125 V	-20 ░C	50 °C	32 mm	19.8 mm	6 A 10 A	No Marking	Amber/Green Incandescent
NKK Switches LW3122-L4EF-A	10000 Cycles	30000 Steps	30 V	On-On	Solder Lug	DPDT	28 VAC	CSA UL	Panel Mount Snap-In	Concave (Standard V) - Illuminated	Clear		125 V	-20 ░C	50 °C	32 mm	19.8 mm	6 A 10 A	No Marking	Green/Yellow Incandescent
NKK Switches LW3122-F4DF-A	10000 Cycles	30000 Steps	30 V	On-On	Solder Lug	DPDT	12 VAC	CSA UL	Panel Mount Snap-In	Concave (Standard V) - Illuminated	Clear		125 V	-20 ░C	50 °C	32 mm	19.8 mm	6 A 10 A	No Marking	Amber/Green Incandescent
NKK Switches LW3122-N4FC-A	10000 Cycles	30000 Steps	30 V	On-On	Solder Lug	DPDT	110 VAC	CSA UL	Panel Mount Snap-In	Concave (Standard V) - Illuminated	Clear (Red Green Filter/Diffuser)		125 V	-20 ░C	50 °C	32 mm	19.8 mm	6 A 10 A	No Marking	Green/Red Neon
NKK Switches LW3122-L4BF-A	10000 Cycles	30000 Steps	30 V	On-On	Solder Lug	DPDT	28 VAC	CSA UL	Panel Mount Snap-In	Concave (Standard V) - Illuminated	Clear		125 V	-20 ░C	50 °C	32 mm	19.8 mm	6 A 10 A	No Marking	Green/White Incandescent
