R12107 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

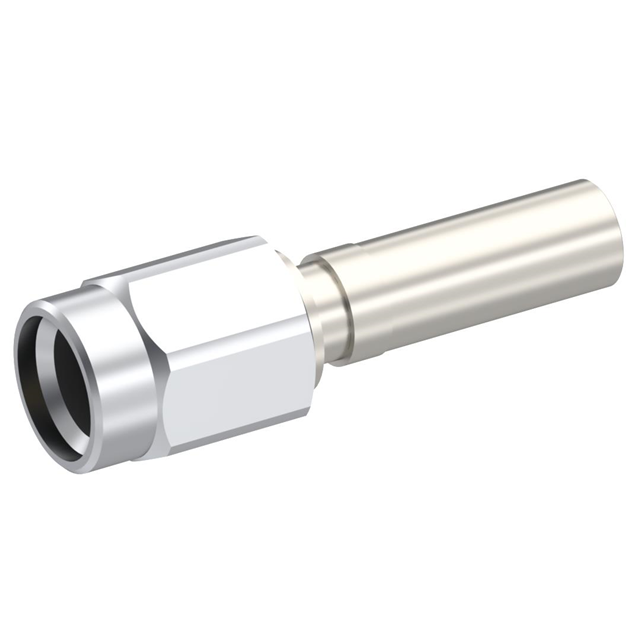

SSMA / STRAIGHT PLUG SOLDER TYPE
| Part | Dielectric Material | Body Material | Center Contact Plating | Voltage Rating | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Number of Ports | Fastening Type | Connector Type | Cable Group | Cable Group | Connector Style | Frequency - Max [Max] | Impedance | Mounting Type | Shield Termination | Contact Termination | Housing Color | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 250 V | 500 | 155 C | -55 C | Nickel | 1 | Threaded | Plug Male Pin | RG-174 | 316 | SSMA | 18 GHz | 50 Ohms | Free Hanging (In-Line) | Crimp | Crimp | Silver | Brass |
