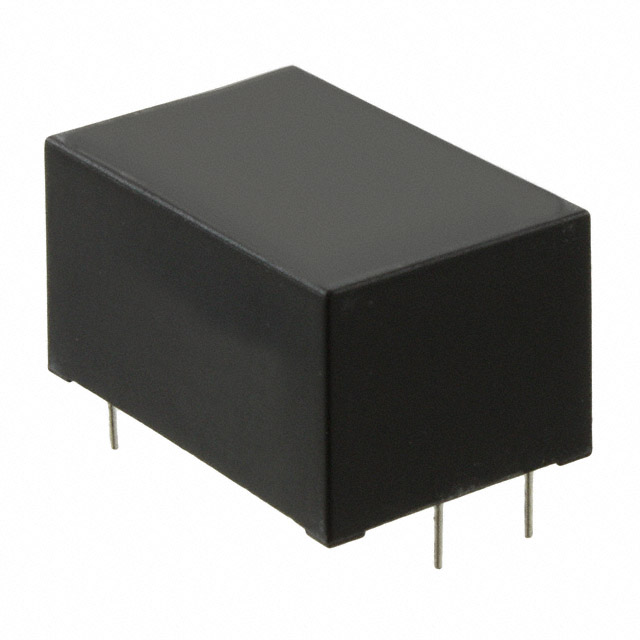

VSK-S2 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 9V 2W

Part	Weight [custom]	Weight [custom]	Approval Agency	Package / Case	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Voltage - Output 1	Efficiency	Features	Mounting Type	Applications	Load Regulation	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Current - Output (Max) [Max]	Line Regulation	Line Regulation
CUI Inc. VSK-S2-9U	0.044 lb	19.96 g	CE cURus EN UL	4-DIP Module	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm	Enclosed	9 V	72 %	Universal Input	Through Hole	ITE (Commercial)	Ý5%	2 W	-25 °C	70 °C	1	305 VAC	85 VAC	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	222 mA	Ý2%
CUI Inc. VSK-S2-3R3U	0.044 lb	19.96 g	CE cURus EN UL	4-DIP Module	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm	Enclosed	3.3 V	65 %	Universal Input	Through Hole	ITE (Commercial)	±5%	2 W	-25 °C	70 °C	1	305 VAC	85 VAC	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	600 mA		2 %
CUI Inc. VSK-S2-15U	0.044 lb	19.96 g	CE cURus EN UL	4-DIP Module	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm	Enclosed	15 V	76 %	Universal Input	Through Hole	ITE (Commercial)	±5%	2 W	-25 °C	70 °C	1	305 VAC	85 VAC	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	133 mA		2 %
CUI Inc. VSK-S2-12U	0.044 lb	19.96 g	CE cURus EN UL	4-DIP Module	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm	Enclosed	12 V	76 %	Universal Input	Through Hole	ITE (Commercial)	±5%	2 W	-25 °C	70 °C	1	305 VAC	85 VAC	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	167 mA		2 %
CUI Inc. VSK-S2-5U	0.044 lb	19.96 g	CE cURus EN UL	4-DIP Module	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm	Enclosed	5 V	70 %	Universal Input	Through Hole	ITE (Commercial)	±5%	2 W	-25 °C	70 °C	1	305 VAC	85 VAC	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	400 mA		2 %
