043020 Series

Manufacturer: Molex

Catalog

CONN PLUG HSG 8POS 3.00MM

Part	Color	Contact Type	Row Spacing [x]	Row Spacing [x]	Fastening Type	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Contact Termination	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Note	Insulation Material	Number of Positions

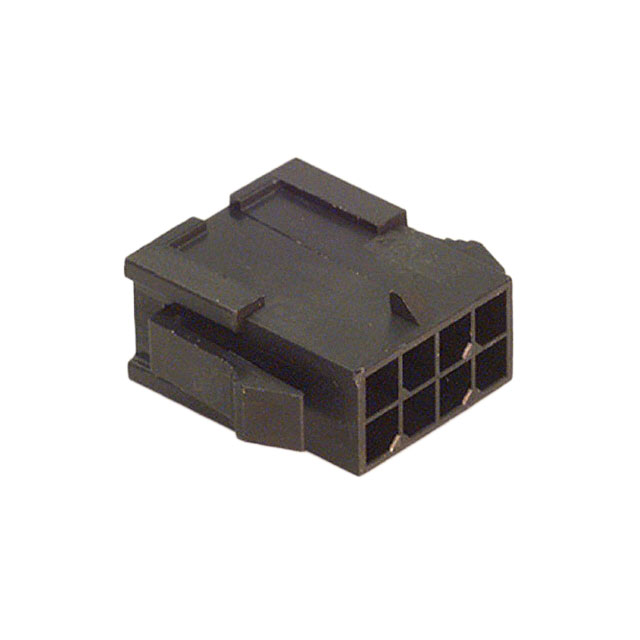

Molex 0430200800	Black	Male Pin	0.118 in	3 mm	Locking Ramp	Plug	Panel Mount Snap-In	3 mm	0.118 in	Crimp	Glow Wire Compliant	-40 °C	105 ░C	2	Contacts Not Included	Nylon Polyamide (PA)	8
Molex 0430200801	Black	Male Pin	0.118 in	3 mm	Locking Ramp	Plug	Free Hanging (In-Line)	3 mm	0.118 in	Crimp	Glow Wire Compliant	-40 °C	105 ░C	2	Contacts Not Included	Nylon Polyamide (PA)	8

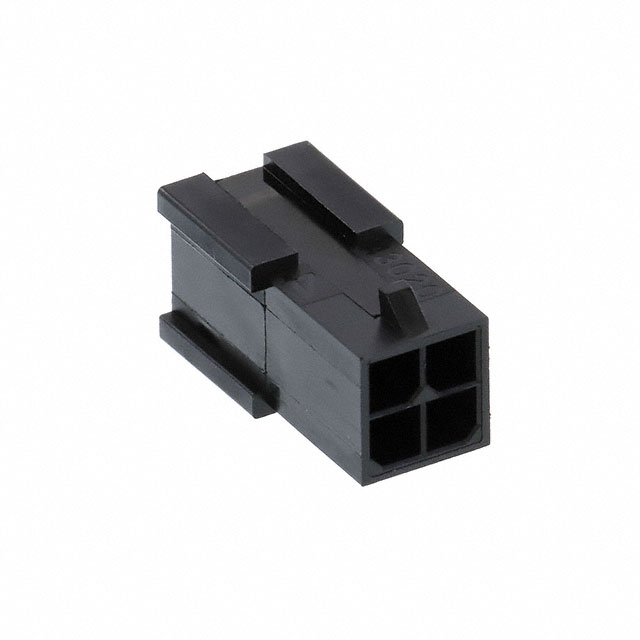

Molex 0430200401	Black	Male Pin	0.118 in	3 mm	Locking Ramp	Plug	Free Hanging (In-Line)	3 mm	0.118 in	Crimp	Glow Wire Compliant	-40 °C	105 ░C	2	Contacts Not Included	Nylon Polyamide (PA)	4

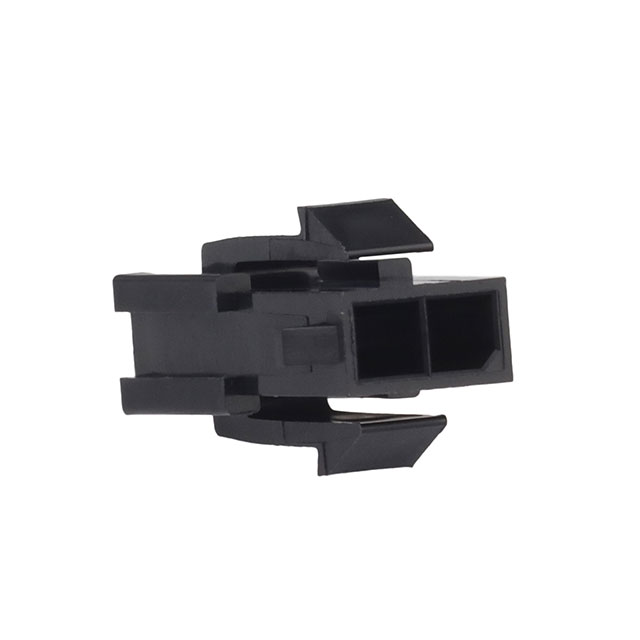

Molex 0430200200	Black	Male Pin	0.118 in	3 mm	Locking Ramp	Plug	Panel Mount Snap-In			Crimp	Glow Wire Compliant	-40 °C	105 ░C	2	Contacts Not Included	Nylon Polyamide (PA)	2
Molex 0430202211	Black	Male Pin	0.118 in	3 mm	Locking Ramp	Plug	Free Hanging (In-Line)	3 mm	0.118 in	Crimp	Glow Wire Compliant	-40 °C	105 ░C	2	Contacts Not Included	Nylon Polyamide (PA)	22 positions

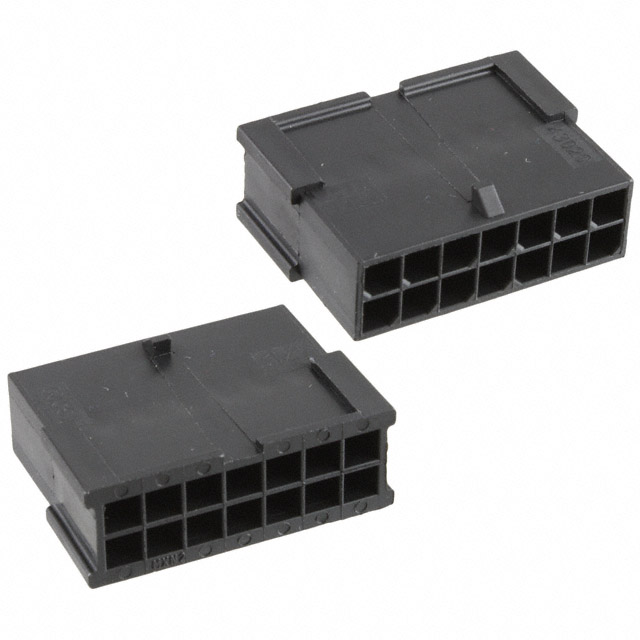

Molex 0430201401	Black	Male Pin	0.118 in	3 mm	Locking Ramp	Plug	Free Hanging (In-Line)	3 mm	0.118 in	Crimp		-40 °C	105 ░C	2	Contacts Not Included	Halogen Free Nylon Polyamide (PA)	14
Molex 0430200600	Black	Male Pin	0.118 in	3 mm	Locking Ramp	Plug	Panel Mount Snap-In	3 mm	0.118 in	Crimp	Glow Wire Compliant	-40 °C	105 ░C	2	Contacts Not Included	Nylon Polyamide (PA)	6

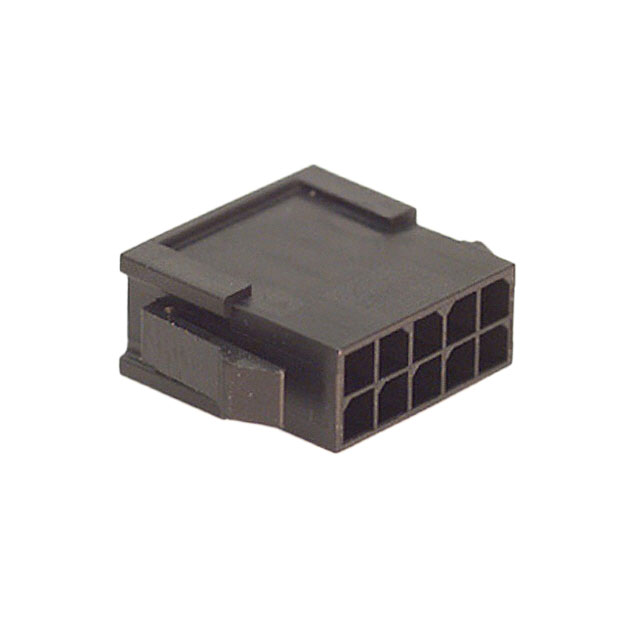

Molex 0430201000	Black	Male Pin	0.118 in	3 mm	Locking Ramp	Plug	Panel Mount Snap-In	3 mm	0.118 in	Crimp	Glow Wire Compliant	-40 °C	105 ░C	2	Contacts Not Included	Nylon Polyamide (PA)	10

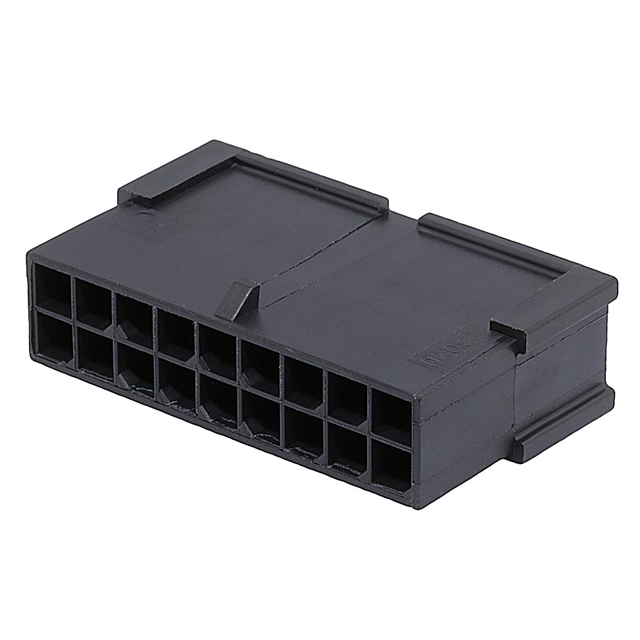

Molex 0430201811	Black	Male Pin	0.118 in	3 mm	Locking Ramp	Plug	Free Hanging (In-Line)	3 mm	0.118 in	Crimp	Glow Wire Compliant	-40 °C	105 ░C	2	Contacts Not Included	Nylon Polyamide (PA)	18
Molex 0430201801	Black	Male Pin	0.118 in	3 mm	Locking Ramp	Plug	Free Hanging (In-Line)	3 mm	0.118 in	Crimp		-40 °C	105 ░C	2	Contacts Not Included	Halogen Free Nylon Polyamide (PA)	18
