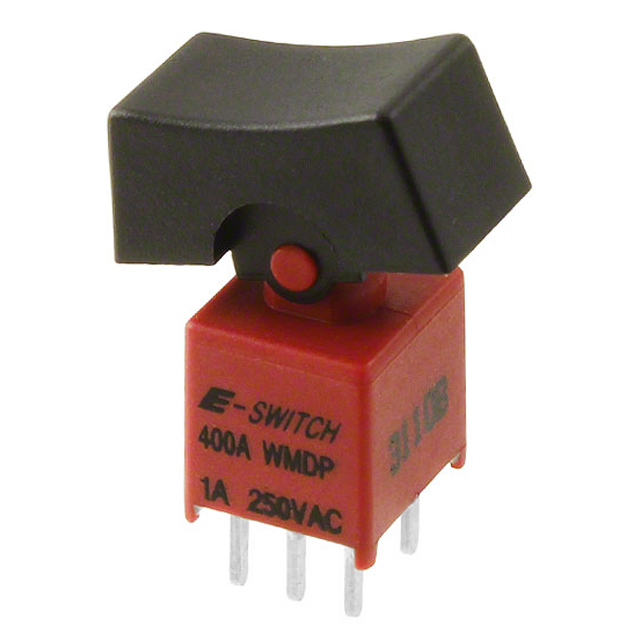

400AWMDP3 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER DPDT 3A 120V
| Part | Electrical Life | Mechanical Life | Color - Actuator/Cap | Current Rating (Amps) | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking | Mounting Type | Actuator Type | Switch Function | Features | Circuit | Voltage Rating - AC | Ingress Protection | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 30000 Cycles | 30000 Steps | Black | 3 A | 28 V | 85 °C | -30 ░C | No Marking | Through Hole | Concave (Curved) | On-Off-On | Epoxy Sealed Terminals | DPDT | 120 V | IP67 - Dust Tight Waterproof | PC Pin |
 E-Switch | 30000 Cycles | 30000 Steps | Black | 0.4 VA | 20 V | 85 °C | -30 ░C | No Marking | Right Angle Through Hole | Concave (Curved) | On-Off-On | Epoxy Sealed Terminals | DPDT | 20 V | IP67 - Dust Tight Waterproof | PC Pin |
