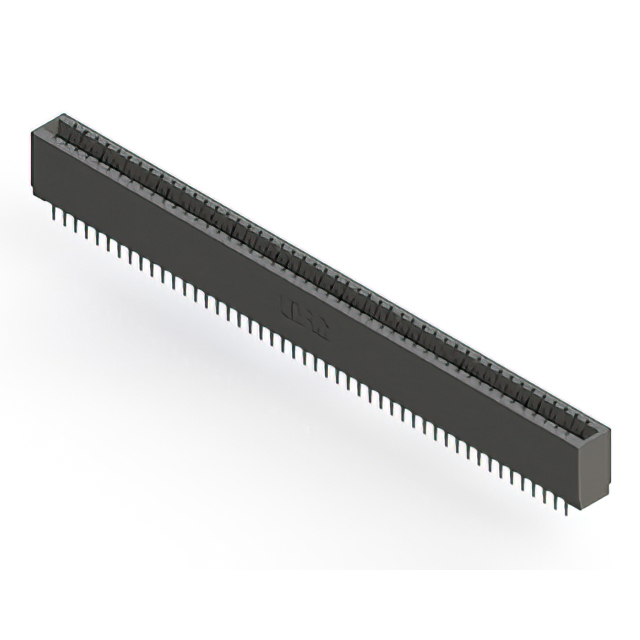

746-096 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 96POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Type	Number of Rows [custom]	Gender	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Number of Positions	Contact Finish	Color	Card Type	Mounting Type	Number of Positions/Bay/Row	Pitch	Pitch	Termination
EDAC Inc. 746-096-553-606	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Copper Alloy	Cantilever	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Dual	96	Gold	Black	Non Specified - Dual Edge	Through Hole	48	3.18 mm	0.125 in	Press-Fit Wire Wrap
EDAC Inc. 746-096-545-601	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Copper Alloy	Cantilever	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Dual	96	Gold	Black	Non Specified - Dual Edge	Through Hole	48	3.18 mm	0.125 in	Press-Fit Wire Wrap
EDAC Inc. 746-096-541-606	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Copper Alloy	Cantilever	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Dual	96	Gold	Black	Non Specified - Dual Edge	Through Hole	48	3.18 mm	0.125 in	Press-Fit Wire Wrap
EDAC Inc. 746-096-520-606	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Copper Alloy	Cantilever	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Dual	96	Gold	Black	Non Specified - Dual Edge	Through Hole	48	3.18 mm	0.125 in	Press-Fit
EDAC Inc. 746-096-525-201	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Copper Alloy	Cantilever	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Dual	96	Gold	Black	Non Specified - Dual Edge	Through Hole	48	3.18 mm	0.125 in	Press-Fit
EDAC Inc. 746-096-553-206	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Copper Alloy	Cantilever	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Dual	96	Gold	Black	Non Specified - Dual Edge	Through Hole	48	3.18 mm	0.125 in	Press-Fit Wire Wrap
EDAC Inc. 746-096-541-601	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Copper Alloy	Cantilever	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Dual	96	Gold	Black	Non Specified - Dual Edge	Through Hole	48	3.18 mm	0.125 in	Press-Fit Wire Wrap
EDAC Inc. 746-096-545-201	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Copper Alloy	Cantilever	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Dual	96	Gold	Black	Non Specified - Dual Edge	Through Hole	48	3.18 mm	0.125 in	Press-Fit Wire Wrap
EDAC Inc. 746-096-525-206	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Copper Alloy	Cantilever	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Dual	96	Gold	Black	Non Specified - Dual Edge	Through Hole	48	3.18 mm	0.125 in	Press-Fit
EDAC Inc. 746-096-545-606	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Copper Alloy	Cantilever	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Dual	96	Gold	Black	Non Specified - Dual Edge	Through Hole	48	3.18 mm	0.125 in	Press-Fit Wire Wrap
