TPS2032-Q1 Series

Automotive 1A loading, 2.7-5.5V, 33mΩ USB power switch, active-high

Catalog

Automotive 1A loading, 2.7-5.5V, 33mΩ USB power switch, active-high

Part	Rds On (Typ)	Voltage - Load [Max]	Voltage - Load [Min]	Output Type	Input Type	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Interface	Ratio - Input:Output [custom]	Features	Current - Output (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Type	Output Configuration	Number of Outputs	Fault Protection	Secondary Attributes	Type	Primary Attributes [Min]	Primary Attributes [Max]	Function	Utilized IC / Part	Supplied Contents	Package / Case	Package / Case	Grade	Qualification
Texas Instruments TPS2032DG4	33 mOhm	5.5 V	2.7 V	N-Channel	Non-Inverting	8-SOIC	8-SOIC	3.9 mm	0.154 in	On/Off	1:1	Status Flag	1 A	Surface Mount	-40 °C	125 ¯C	General Purpose	High Side	1	Current Limiting (Fixed) Over Temperature UVLO

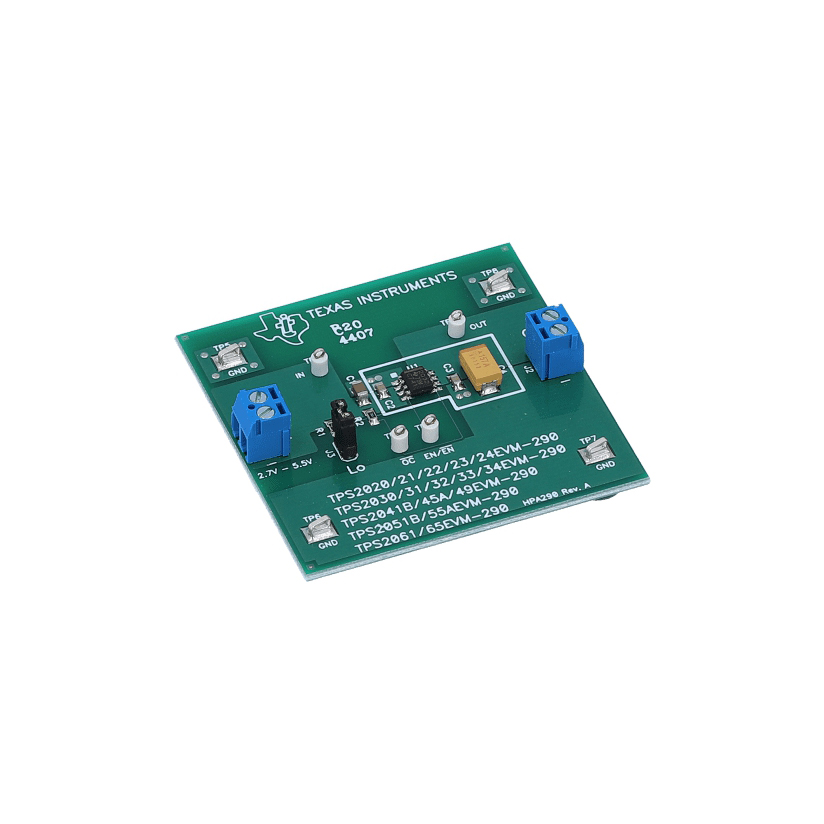

Texas Instruments TPS2032EVM-290																					Overvoltage Short-Circuit Thermal Undervoltage Protection	Power Management	2.7 V	5.5 V	Power Distribution Switch (Load Switch)	TPS2032	Board(s)
Texas Instruments TPS2032PG4	33 mOhm	5.5 V	2.7 V	N-Channel	Non-Inverting	8-PDIP	8-DIP			On/Off	1:1	Status Flag	1 A	Through Hole	-40 °C	125 ¯C	General Purpose	High Side	1	Current Limiting (Fixed) Over Temperature UVLO								0.3 in	7.62 mm
Texas Instruments TPS2032DR	33 mOhm	5.5 V	2.7 V	N-Channel	Non-Inverting	8-SOIC	8-SOIC	3.9 mm	0.154 in	On/Off	1:1	Status Flag	1 A	Surface Mount	-40 °C	125 ¯C	General Purpose	High Side	1	Current Limiting (Fixed) Over Temperature UVLO
Texas Instruments TPS2032P	33 mOhm	5.5 V	2.7 V	N-Channel	Non-Inverting	8-PDIP	8-DIP			On/Off	1:1	Status Flag	1 A	Through Hole	-40 °C	125 ¯C	General Purpose	High Side	1	Current Limiting (Fixed) Over Temperature UVLO								0.3 in	7.62 mm
Texas Instruments TPS2032QDRQ1	33 mOhm	5.5 V	2.7 V	N-Channel	Non-Inverting	8-SOIC	8-SOIC	3.9 mm	0.154 in	On/Off	1:1	Status Flag	1 A	Surface Mount	-40 °C	125 ¯C	General Purpose	High Side	1	Current Limiting (Fixed) Over Temperature UVLO										Automotive	AEC-Q100

Catalog

Automotive 1A loading, 2.7-5.5V, 33mΩ USB power switch, active-high

Key Features

• Qualified for Automotive Applications33-m(5-V Input) High-Side MOSFET SwitchShort-Circuit and Thermal ProtectionOvercurrent Logic OutputOperating Range: 2.7 V to 5.5 VLogic-Level Enable InputTypical Rise Time: 6.1 msUndervoltage LockoutMaximum Standby Supply Current: 10 µANo Drain-Source Back-Gate DiodeAvailable in 8-pin SOIC PackageAmbient Temperature Range, –40°C to 125°C2-kV Human-Body-Model, 200-V Machine-Model ESD ProtectionUL Listed – File No. E169910Qualified for Automotive Applications33-m(5-V Input) High-Side MOSFET SwitchShort-Circuit and Thermal ProtectionOvercurrent Logic OutputOperating Range: 2.7 V to 5.5 VLogic-Level Enable InputTypical Rise Time: 6.1 msUndervoltage LockoutMaximum Standby Supply Current: 10 µANo Drain-Source Back-Gate DiodeAvailable in 8-pin SOIC PackageAmbient Temperature Range, –40°C to 125°C2-kV Human-Body-Model, 200-V Machine-Model ESD ProtectionUL Listed – File No. E169910

Description

The TPS2032 power distribution switch is intended for applications where heavy capacitive loads and short circuits are likely to be encountered. These devices are 50-mN-channel MOSFET high-side power switches. The switch is controlled by a logic enable compatible with 5-V logic and 3-V logic. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V. When the output load exceeds the current-limit threshold or a short is present, the TPS2032 limits the output current to a safe level by switching into a constant-current mode, pulling the overcurrent (OC) logic output low. When continuous heavy overloads and short circuits increase the power dissipation in the switch, causing the junction temperature to rise, a thermal protection circuit shuts off the switch to prevent damage. Recovery from a thermal shutdown is automatic once the device has cooled sufficiently. Internal circuitry ensures the switch remains off until valid input voltage is present. The TPS2032 limits at 1.5-A load. The TPS2032 is available in an 8-pin small-outline integrated-circuit (SOIC) package and operates over a temperature range of –40°C to 125°C. The TPS2032 power distribution switch is intended for applications where heavy capacitive loads and short circuits are likely to be encountered. These devices are 50-mN-channel MOSFET high-side power switches. The switch is controlled by a logic enable compatible with 5-V logic and 3-V logic. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V. When the output load exceeds the current-limit threshold or a short is present, the TPS2032 limits the output current to a safe level by switching into a constant-current mode, pulling the overcurrent (OC) logic output low. When continuous heavy overloads and short circuits increase the power dissipation in the switch, causing the junction temperature to rise, a thermal protection circuit shuts off the switch to prevent damage. Recovery from a thermal shutdown is automatic once the device has cooled sufficiently. Internal circuitry ensures the switch remains off until valid input voltage is present. The TPS2032 limits at 1.5-A load. The TPS2032 is available in an 8-pin small-outline integrated-circuit (SOIC) package and operates over a temperature range of –40°C to 125°C.
