SC40-19 Series

Catalog

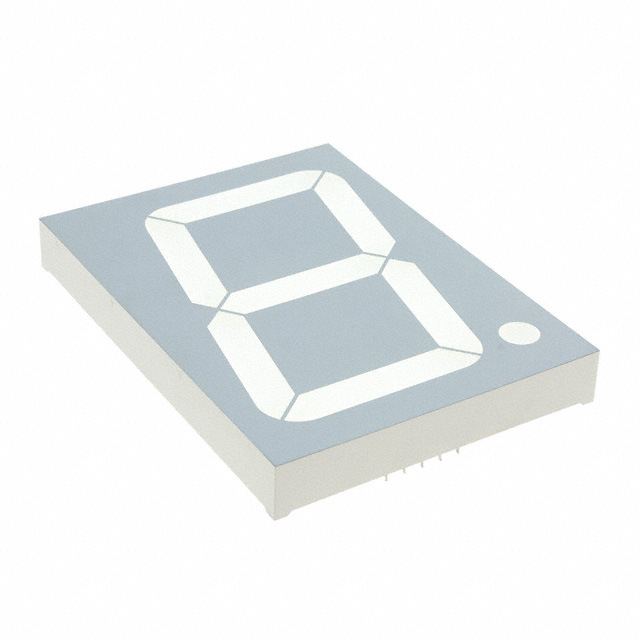

DISPLAY 7SEG 3.98" SGL RED 10DIP

Part	Number of Characters	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Color	Common Pin	Millicandela Rating	Package / Case	Package / Case	Display Type	Wavelength - Peak	Current - Test	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max)
Kingbright SC40-19SRWA	1	122 mm	3.543 in	4.803 in	90 mm	15 mm	0.591 in	600 mW	7.4 V	Red	Common Cathode	110 mcd	4.21 in 107 mm	10-DIP	7-Segment	660 nm	20 mA	3.98 in	101.2 mm

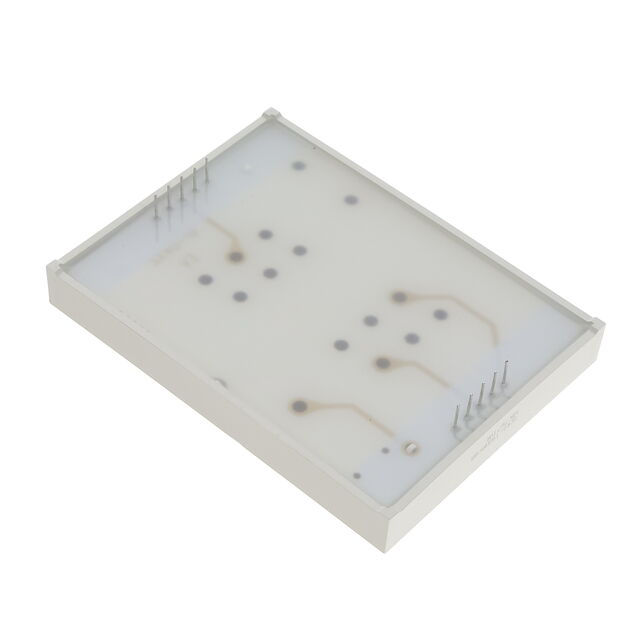

Kingbright SC40-19SURKWA	1	122 mm	3.543 in	4.803 in	90 mm	15 mm	0.591 in		3.9 V	Red	Common Cathode	250 mcd	4.21 in 107 mm	10-DIP	7-Segment	645 nm	20 mA	3.98 in	101.2 mm	150 mW
Kingbright SC40-19YWA	1	122 mm	3.543 in	4.803 in	90 mm	15 mm	0.591 in	600 mW	8.4 V	Yellow	Common Cathode	22 mcd	4.21 in 107 mm	10-DIP	7-Segment	590 nm	20 mA	3.98 in	101.2 mm
Kingbright SC40-19EWA	1	122 mm	3.543 in	4.803 in	90 mm	15 mm	0.591 in	600 mW	8 V	Red	Common Cathode	23 mcd	4.21 in 107 mm	10-DIP	7-Segment	627 nm	20 mA	3.98 in	101.2 mm
Kingbright SC40-19SYKWA	1	122 mm	3.543 in	4.803 in	90 mm	15 mm	0.591 in		4 V	Yellow	Common Cathode	450 mcd	4.21 in 107 mm	10-DIP	7-Segment	590 nm	20 mA	3.98 in	101.2 mm	150 mW
