SPM5030VT Series

Catalog

POW INDUCTOR, AEC-Q200, 100NH, SHLD/51.1A ROHS COMPLIANT: YES

Part	Ratings	Inductance	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Inductance Frequency - Test	Current - Saturation (Isat)	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	DC Resistance (DCR)	Supplier Device Package	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current Rating (Amps)
TDK Corporation SPM5030VT-R10M-D	AEC-Q200	100 nH	Metal Composite	0.118 "	3 mm	Shielded	100 kHz	37.1 A	Surface Mount	Nonstandard	155 C	-55 C	20 %	2.7 mOhm	5030	Drum Core Wirewound	0.209 "	5.3 mm	0.201 "	5.1 mm	18.3 A
TDK Corporation SPM5030VT-1R5M-D	AEC-Q200	1.5 µH	Metal Composite	0.118 "	3 mm	Shielded	100 kHz	9.2 A	Surface Mount	Nonstandard	155 C	-55 C	20 %	14.1 mOhm	5030	Drum Core Wirewound	0.209 "	5.3 mm	0.201 "	5.1 mm	7.9 A

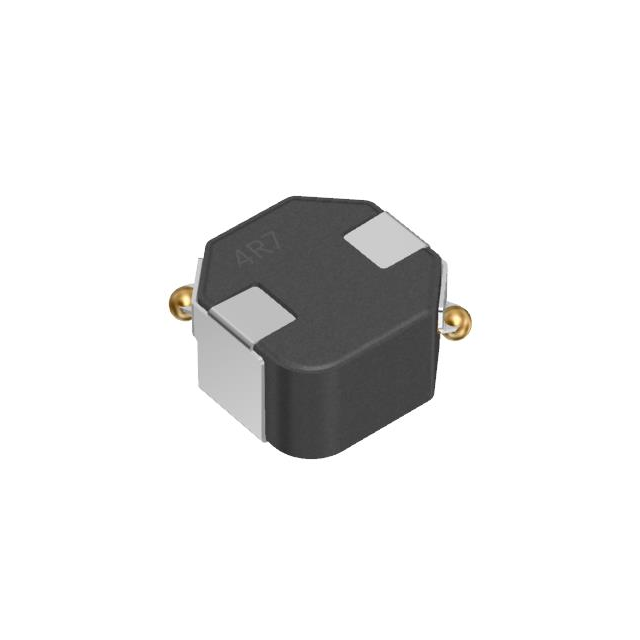

TDK Corporation SPM5030VT-4R7M-D	AEC-Q200	4.7 ÁH	Metal Composite	0.118 "	3 mm	Shielded	100 kHz	5.9 A	Surface Mount	Nonstandard	155 C	-55 C	20 %	59.1 mOhm	5030	Drum Core Wirewound	0.209 "	5.3 mm	0.201 "	5.1 mm	3.8 A
