BD2221 Series

1ch Small Package High Side Switch ICs for USB Devices and Memory Cards

Catalog

1ch Small Package High Side Switch ICs for USB Devices and Memory Cards

Part	Fault Protection	Ratio - Input:Output	Input Type	Output Configuration	Output Type	Interface	Current - Output (Max) [Max]	Number of Outputs	Features	Switch Type	Package / Case	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Rds On (Typ)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Vcc/Vdd)
Rohm Semiconductor BD2221G-TR	Current Limiting (Fixed) Over Temperature Reverse Current UVLO	1:1	Non-Inverting	High Side	N-Channel	On/Off	500 mA	1	Slew Rate Controlled Status Flag	USB Switch	SC-74A SOT-753	Surface Mount	2.7 V	5.5 V	160 mOhm	5-SSOP	85 C	-40 ¯C	Not Required
Rohm Semiconductor BD2221G-LBTR	Current Limiting (Fixed) Over Temperature Reverse Current UVLO	1:1	Non-Inverting	High Side	N-Channel	On/Off	500 mA	1	Slew Rate Controlled Status Flag	USB Switch	SC-74A SOT-753	Surface Mount	2.7 V	5.5 V	160 mOhm	5-SSOP	85 C	-40 ¯C	Not Required

Catalog

1ch Small Package High Side Switch ICs for USB Devices and Memory Cards

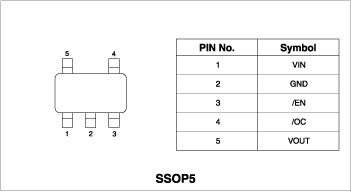

Description

The High-side switch for memory card slot is an IC High-side switch with a function of over-current protection used in the power supply line of a memory card slot. In the switch part an N channel MOSFET low ON resistance has been 1 circuit integrated. Moreover, a soft start function, an under voltage lockout function and an over temperature protection function are integrated.
