ND3FR16 Series

Catalog

SWITCH ROTARY DIP HEX 0.1A 5V

Part	Body Material	Electrical Life	Length [x]	Length [x]	Mechanical Life	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Termination Style	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Actuator Level	Features	Contact Material	Number of Positions	Contact Finish	Mounting Type	Circuit	Current Rating (Amps)	Pitch	Pitch	Height Above Board	Height Above Board
NKK Switches ND3FR16B	Polyamide (PA) Nylon Glass Filled	20000 Steps	0.32 in	8.13 mm	20000 Cycles	0.22 in	5.59 mm	2.54 mm	0.1 "	Gull Wing	Rotary for Tool	85 °C	-25 °C	5 V	Flush Recessed	Epoxy Sealed Terminals	Beryllium Copper	16	Gold	Surface Mount	Hexadecimal	100 mA

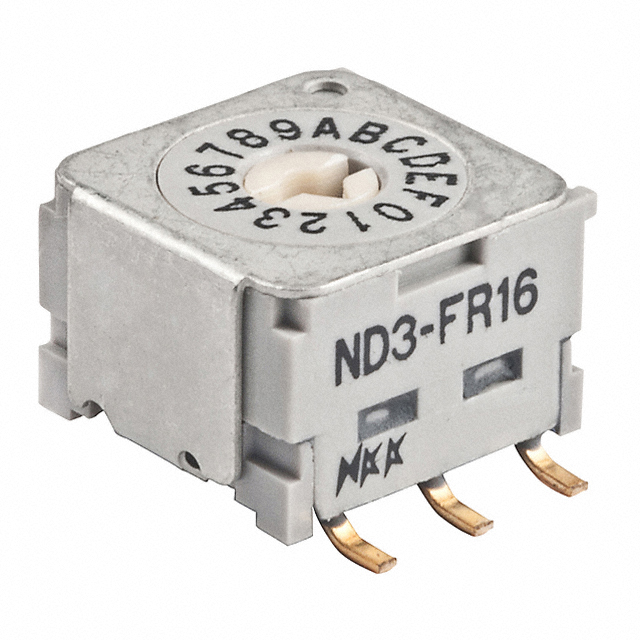

NKK Switches ND3FR16P	Polyamide (PA) Nylon Glass Filled	20000 Steps	0.32 in	8.13 mm	20000 Cycles	0.22 in	5.59 mm	2.54 mm	0.1 "	Gull Wing	Rotary for Tool	85 °C	-25 °C	5 V	Flush Recessed	Epoxy Sealed Terminals	Beryllium Copper	16	Gold	Surface Mount	Hexadecimal	100 mA
NKK Switches ND3FR16H	Polyamide (PA) Nylon Glass Filled	20000 Steps	0.32 in	8.13 mm	20000 Cycles			1.27 mm		Gull Wing	Rotary for Tool	85 °C	-25 °C	5 V	Flush Recessed	Epoxy Sealed Terminals	Beryllium Copper	16	Gold	Right Angle Surface Mount	Hexadecimal	100 mA	0.05 "	Half	8.03 mm	0.316 in
