1888196 Series

Catalog

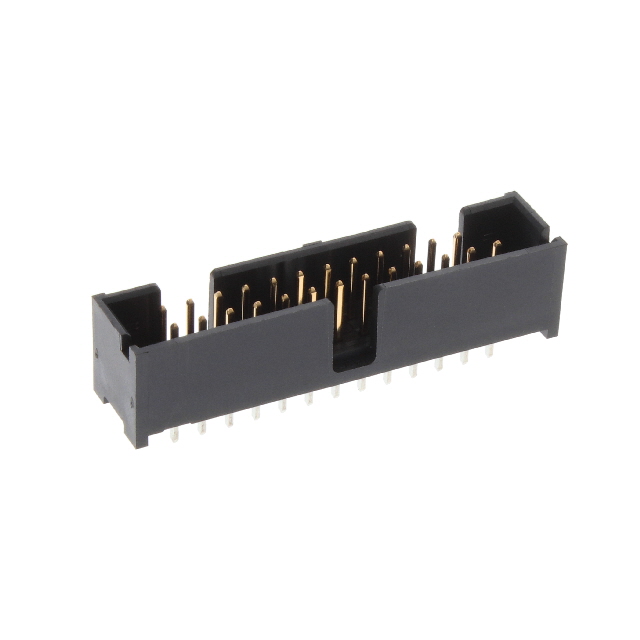

HEADER CONNECTOR,PCB MNT,PLUG,28 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,LATCH,BLACK

Part	Insulation Height [custom]	Insulation Height [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish - Mating	Fastening Type	Insulation Color	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Features	Contact Shape	Number of Positions	Pitch - Mating	Pitch - Mating	Termination	Number of Rows	Contact Material	Connector Type	Current Rating (Amps)	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Type	Number of Positions Loaded	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating [x]
TE Connectivity Raychem Cable Protection 1888196-1	9.86 mm	0.388 in	-65 ░C	105 ░C	250 VAC	Gold	Push-Pull	Black	Shrouded - 4 Wall	2.54 mm	0.1 in	UL94 V-0	Keying Slot	Square	26	0.1 in	2.54 mm	Solder	2	Brass	Header	1 A	Board to Cable/Wire	2.54 µm	100 µin	Through Hole	0.12 in	3.05 mm	Flash	Male Pin	25	Tin	6.1 mm	0.24 in
