1376478 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN HEADER VERT 2POS 2.5MM
| Part | Applications | Insulation Color | Pitch - Mating | Pitch - Mating | Style | Number of Positions | Contact Type | Number of Rows | Number of Positions Loaded | Contact Shape | Mounting Type | Current Rating (Amps) | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Features | Voltage Rating | Connector Type | Insulation Material | Contact Finish - Post | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

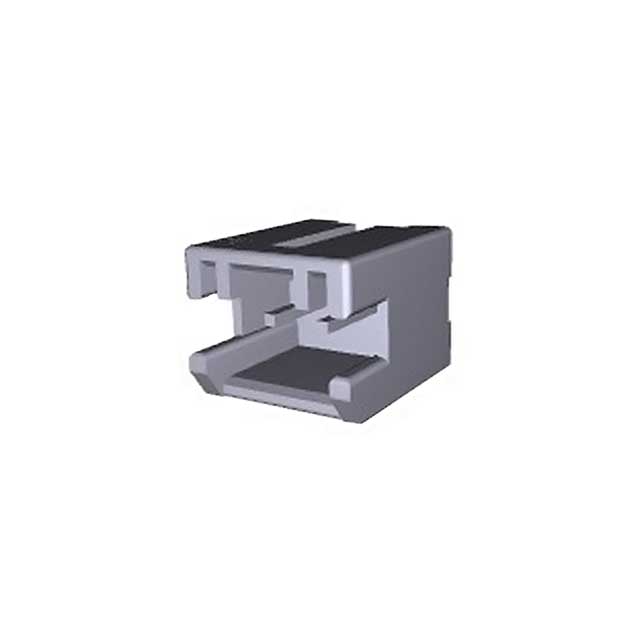

 TE Connectivity AMP Connectors | General Purpose | Natural | 2.5 mm | 0.098 in | Board to Cable/Wire | 2 | Male Pin | 1 | All | Square | Through Hole | Varies by Wire Gauge | Latch Holder | -30 ░C | 105 ░C | Shrouded - 4 Wall | 8.8 mm | 0.346 in | UL94 V-0 | Brass | 0.126 " | 3.2 mm | Board Guide | 50 V | Header | Glass Filled Nylon 6/6 Polyamide (PA66) | Tin | Kinked Pin Solder |

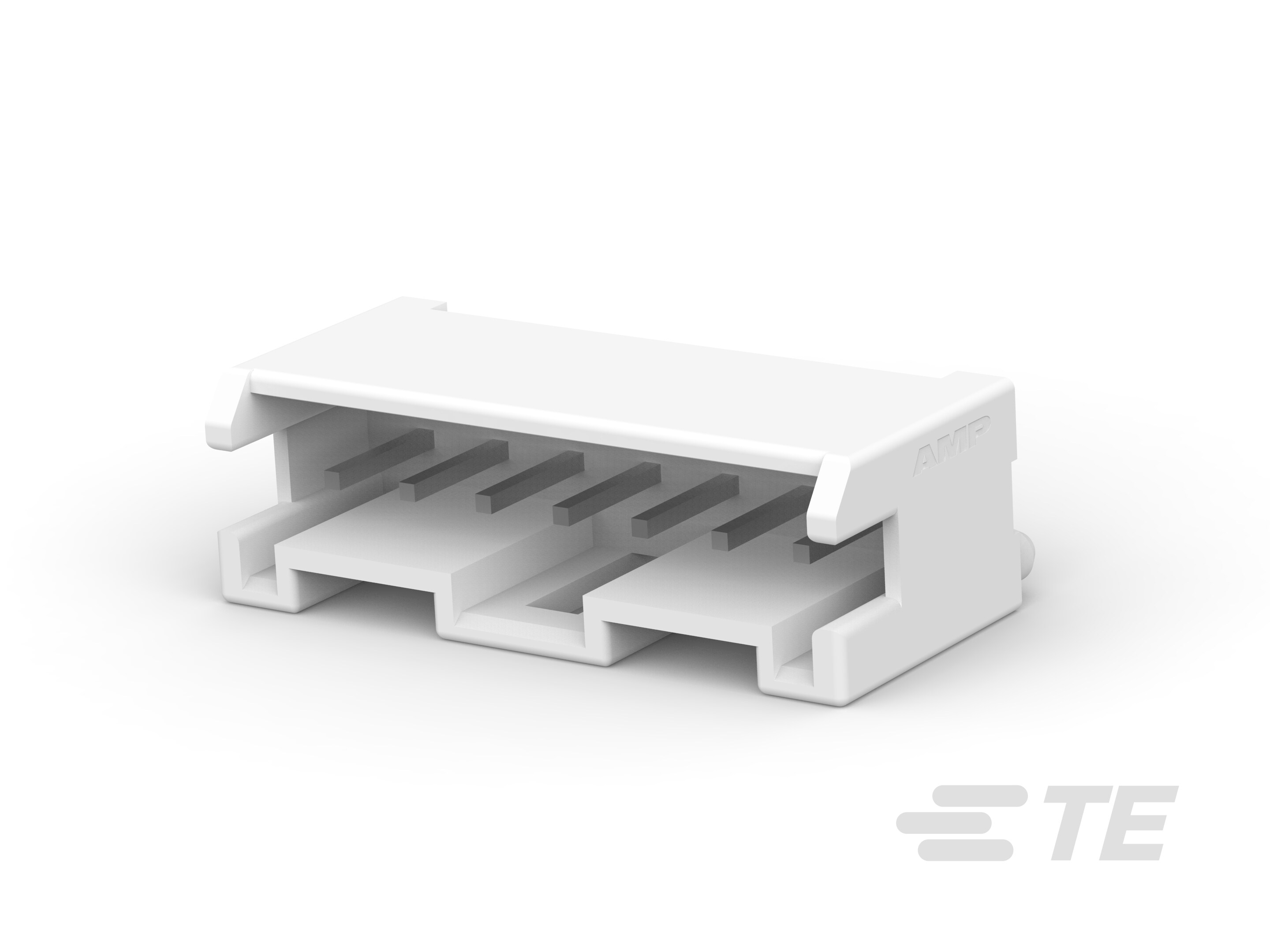

 TE Connectivity AMP Connectors | General Purpose | Natural | 2.5 mm | 0.098 in | Board to Cable/Wire | 7 | Male Pin | 1 | All | Square | Through Hole | Varies by Wire Gauge | Latch Holder | -30 ░C | 105 ░C | Shrouded - 4 Wall | 8.8 mm | 0.346 in | UL94 V-0 | Brass | 0.126 " | 3.2 mm | Board Guide | 50 V | Header | Glass Filled Nylon 6/6 Polyamide (PA66) | Tin | Kinked Pin Solder |

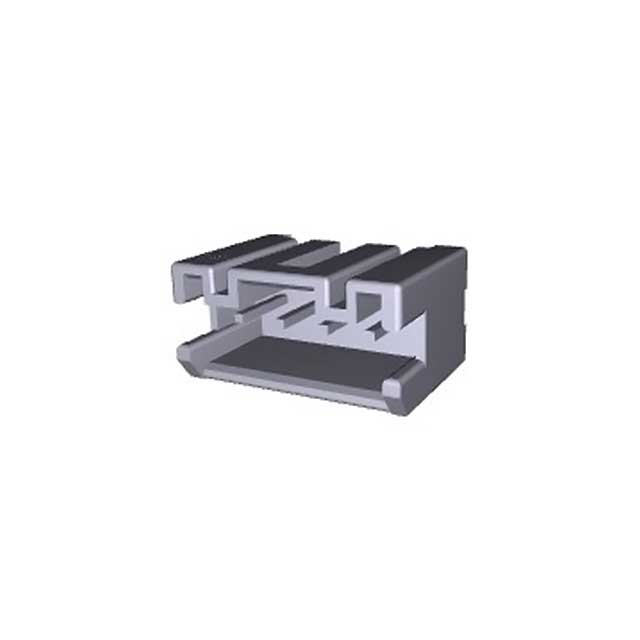

 TE Connectivity AMP Connectors | General Purpose | Natural | 2.5 mm | 0.098 in | Board to Cable/Wire | 4 | Male Pin | 1 | All | Square | Through Hole | Varies by Wire Gauge | Latch Holder | -30 ░C | 105 ░C | Shrouded - 4 Wall | 8.8 mm | 0.346 in | UL94 V-0 | Brass | 0.126 " | 3.2 mm | Board Guide | 50 V | Header | Glass Filled Nylon 6/6 Polyamide (PA66) | Tin | Kinked Pin Solder |

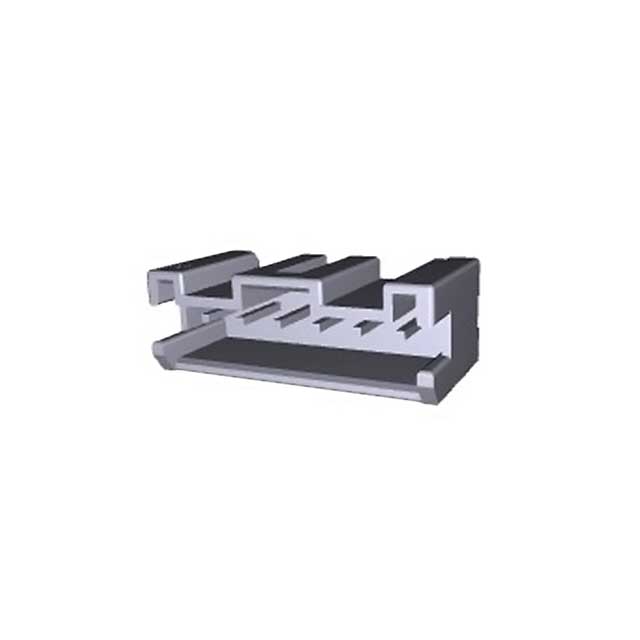

 TE Connectivity AMP Connectors | General Purpose | Natural | 2.5 mm | 0.098 in | Board to Cable/Wire | 6 | Male Pin | 1 | All | Square | Through Hole | Varies by Wire Gauge | Latch Holder | -30 ░C | 105 ░C | Shrouded - 4 Wall | 8.8 mm | 0.346 in | UL94 V-0 | Brass | 0.126 " | 3.2 mm | Board Guide | 50 V | Header | Glass Filled Nylon 6/6 Polyamide (PA66) | Tin | Kinked Pin Solder |

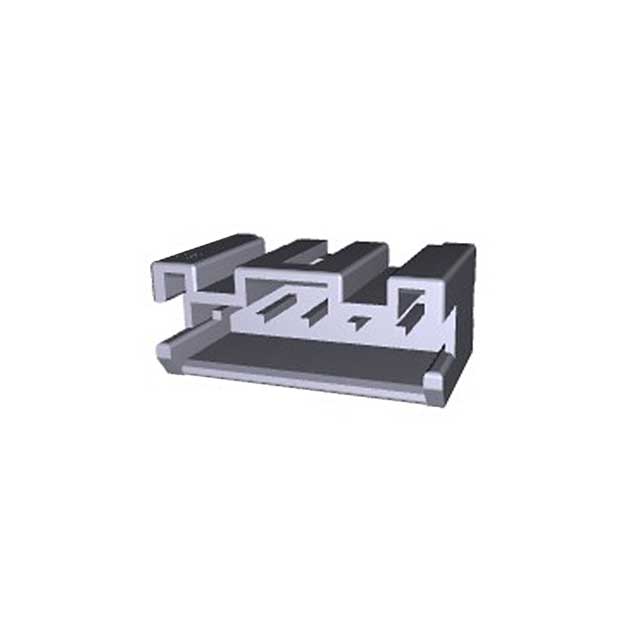

 TE Connectivity AMP Connectors | General Purpose | Natural | 2.5 mm | 0.098 in | Board to Cable/Wire | 5 | Male Pin | 1 | All | Square | Through Hole | Varies by Wire Gauge | Latch Holder | -30 ░C | 105 ░C | Shrouded - 4 Wall | 8.8 mm | 0.346 in | UL94 V-0 | Brass | 0.126 " | 3.2 mm | Board Guide | 50 V | Header | Glass Filled Nylon 6/6 Polyamide (PA66) | Tin | Kinked Pin Solder |
