19302101 Series
Manufacturer: HARTING
Beta
⌘K
ENCLOSURE FOR CONNECTORS: HDC; SIZE 10B; HAN® HMC; IP65; CLOSED
| Part | Housing Material | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Connector Type | Thread Size | Lock Location | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Housing Finish | Size | Style | Features | Ingress Protection | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Aluminum Die Cast | 53.8 mm | 3.701 in | 2.118 in | 52 mm | 2.047 in | 94 mm | Base - Box Mount | M20 | Locking Clip (1) on Base Bottom | 125 °C | -40 C | Gray | Powder Coated | 10B | Side Entry Dual | Feed Through | IP65 - Dust Tight Water Resistant | ||
 HARTING | Aluminum Die Cast | 2.858 in | 1.866 " | 1.693 " | 72.6 mm | Hood - Coupling | M20 | Locking Clip (1) on Hood | 125 °C | -40 C | Gray | Powder Coated | 10B | Top Entry Top or Bottom Entry | Cable to Cable | IP65 - Dust Tight Water Resistant | 43 mm | 47.4 mm | ||

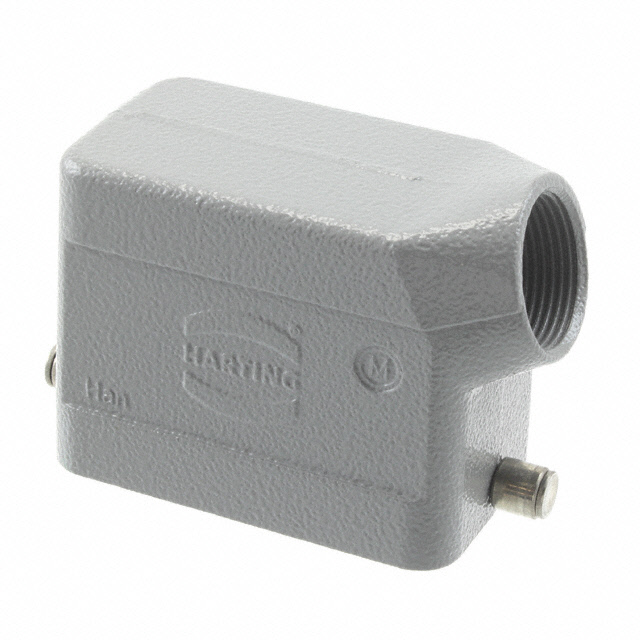

 HARTING | Aluminum Die Cast | 57 mm | 2.858 in | 2.244 " | 43 mm | 1.693 " | 72.6 mm | Hood | M25 | Locking Clip (1) on Base Bottom | 125 °C | -40 C | Gray | Powder Coated | 10B | Side Entry | IP65 - Dust Tight Water Resistant |
