CC56-12 Series
Manufacturer: Kingbright
Beta
⌘K

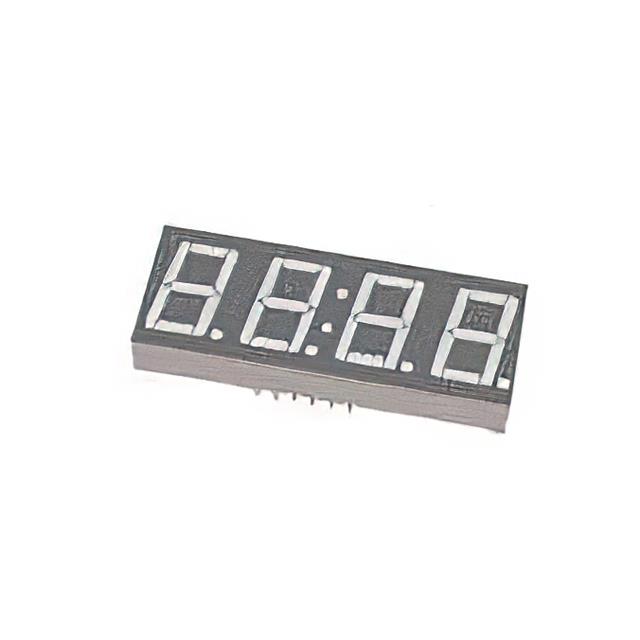

.56" 4-DIGIT RED LED DISPLAY
| Part | Voltage - Forward (Vf) (Typ) | Number of Characters | Wavelength - Peak | Display Type | Color | Package / Case | Package / Case | Package / Case | Common Pin | Power Dissipation (Max) [Max] | Millicandela Rating | Digit/Alpha Size | Digit/Alpha Size | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | 1.85 V | 4 | 645 nm | 7-Segment | Red | 15.24 mm | 0.6 in | 12-DIP | Common Cathode | 75 mw | 72 mcd | 0.56 in | 14.2 mm | 50.3 mm | 0.748 in | 8.35 mm | 0.329 in | 1.98 " | 19 mm | 10 mA |
