PEC13 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 26POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Style	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Contact Shape	Current Rating (Amps)	Insulation Material	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Type	Connector Type	Termination	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Color	Number of Positions	Fastening Type	Insulation Height	Insulation Height	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Number of Rows [custom]	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length

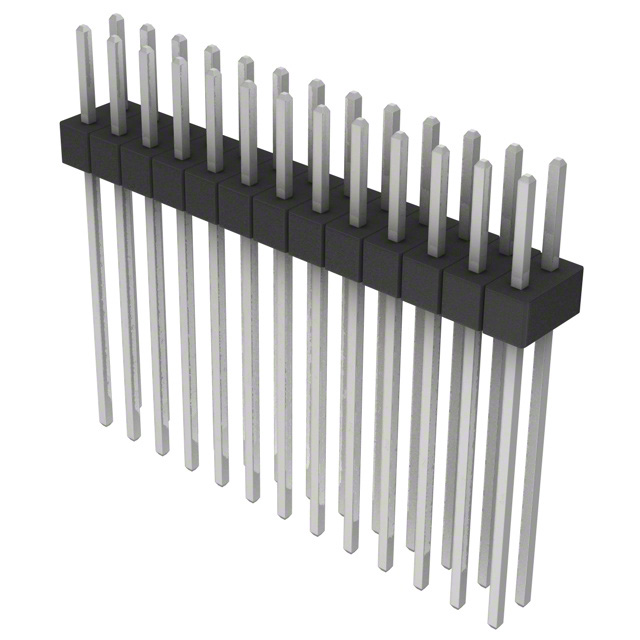

Sullins Connector Solutions PEC13DAGN	2.54 µm	100 µin	0.72 "	18.29 mm	Phosphor Bronze	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	26.67 mm	1.05 in	Square	3 A	Polybutylene Terephthalate (PBT)	Through Hole	0.23 in	5.84 mm	Male Pin	Header Breakaway	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	All	Black	26	Push-Pull	0.1 in	2.54 mm	Tin	0.1 in	2.54 mm	Unshrouded	2

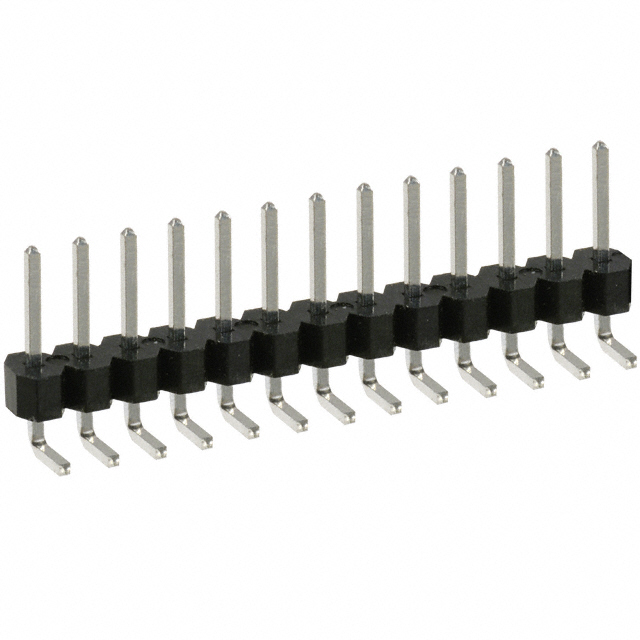

Sullins Connector Solutions PEC13SBAN	2.54 µm	100 µin	0.1 in	2.54 mm	Phosphor Bronze	-65 ░C	125 °C	Board to Board Cable	UL94 V-0			Square	3 A	Polybutylene Terephthalate (PBT)	Right Angle Through Hole	0.23 in	5.84 mm	Male Pin	Header Breakaway	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	All	Black	13	Push-Pull	0.14 in	3.56 mm	Tin			Unshrouded		1

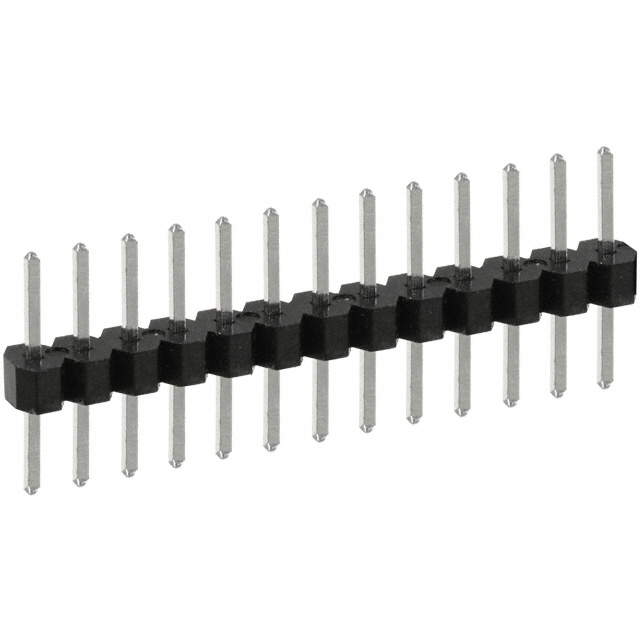

Sullins Connector Solutions PEC13SABN	2.54 µm	100 µin	0.23 "	5.84 mm	Phosphor Bronze	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	14.22 mm	0.56 in	Square	3 A	Polybutylene Terephthalate (PBT)	Through Hole	0.23 in	5.84 mm	Male Pin	Header Breakaway	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	All	Black	13	Push-Pull	0.1 in	2.54 mm	Tin			Unshrouded		1

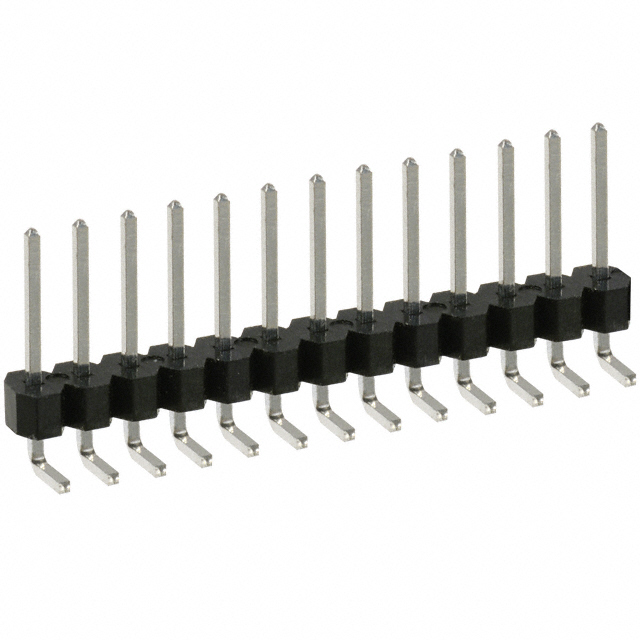

Sullins Connector Solutions PEC13SGAN	2.54 µm	100 µin	0.1 in	2.54 mm	Phosphor Bronze	-65 ░C	125 °C	Board to Board Cable	UL94 V-0			Square	3 A	Polybutylene Terephthalate (PBT)	Right Angle Through Hole	0.318 in	8.08 mm	Male Pin	Header Breakaway	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	All	Black	13	Push-Pull	0.14 in	3.56 mm	Tin			Unshrouded		1

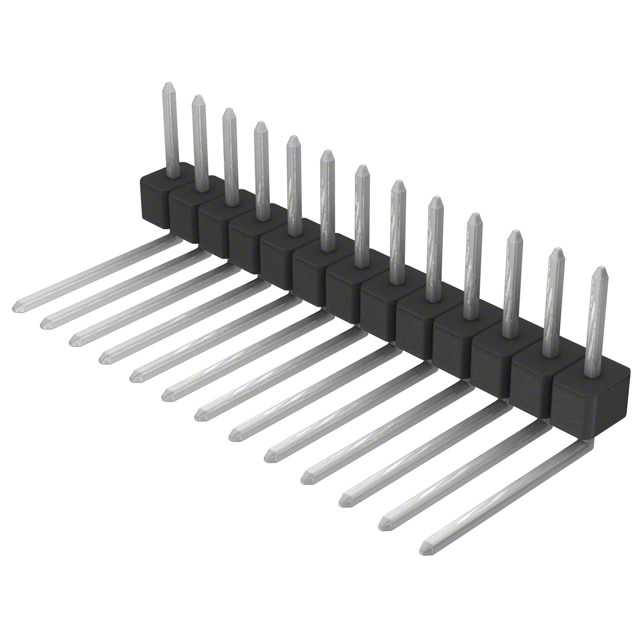

Sullins Connector Solutions PEC13SBDN	2.54 µm	100 µin	0.4 in	10.16 mm	Phosphor Bronze	-65 ░C	125 °C	Board to Board Cable	UL94 V-0			Square	3 A	Polybutylene Terephthalate (PBT)	Right Angle Through Hole	0.23 in	5.84 mm	Male Pin	Header Breakaway	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	All	Black	13	Push-Pull	0.14 in	3.56 mm	Tin			Unshrouded		1
Sullins Connector Solutions PEC13DAHN	2.54 µm	100 µin	0.82 in	20.83 mm	Phosphor Bronze	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	29.21 mm	1.15 in	Square	3 A	Polybutylene Terephthalate (PBT)	Through Hole	0.23 in	5.84 mm	Male Pin	Header Breakaway	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	All	Black	26	Push-Pull	0.1 in	2.54 mm	Tin	0.1 in	2.54 mm	Unshrouded	2

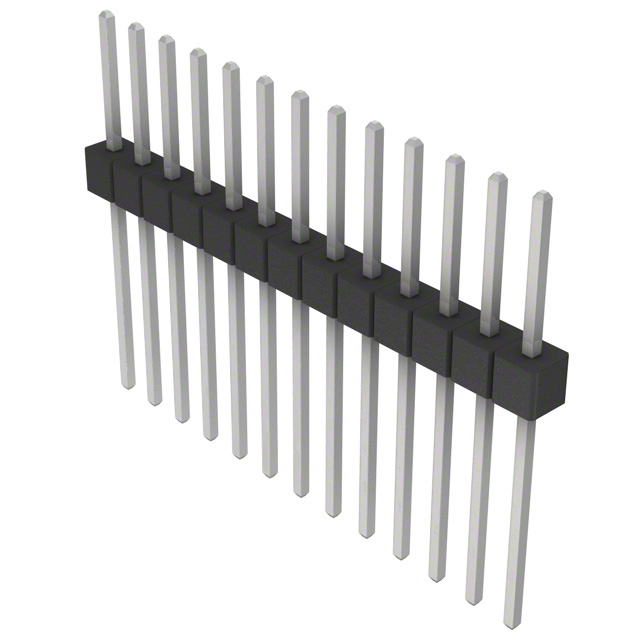

Sullins Connector Solutions PEC13SFEN	2.54 µm	100 µin	0.52 in	13.21 mm	Phosphor Bronze	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	23.83 mm	0.938 in	Square	3 A	Polybutylene Terephthalate (PBT)	Through Hole	0.318 in	8.08 mm	Male Pin	Header Breakaway	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	All	Black	13	Push-Pull	0.1 in	2.54 mm	Tin			Unshrouded		1
Sullins Connector Solutions PEC13SAAN	2.54 µm	100 µin	0.12 in	3.05 mm	Phosphor Bronze	-65 ░C	125 °C	Board to Board Cable	UL94 V-0			Square	3 A	Polybutylene Terephthalate (PBT)	Through Hole	0.23 in	5.84 mm	Male Pin	Header Breakaway	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	All	Black	13	Push-Pull	0.1 in	2.54 mm	Tin			Unshrouded		1	11.43 mm	0.45 in

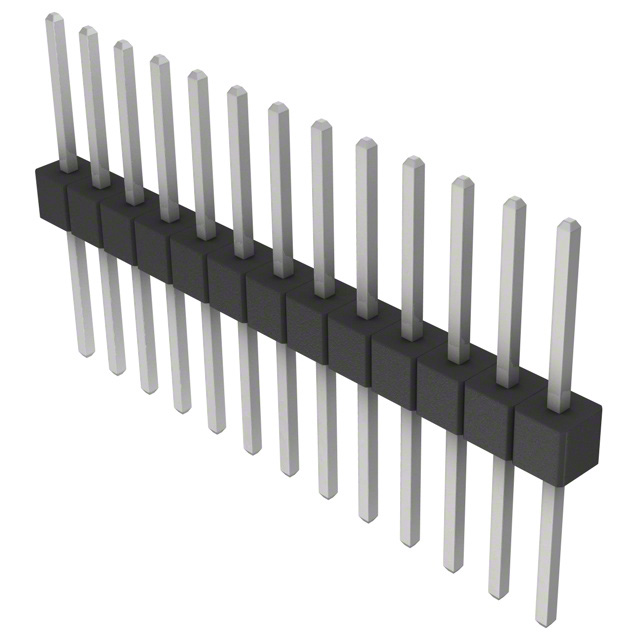

Sullins Connector Solutions PEC13SFCN	2.54 µm	100 µin	0.32 in	8.13 mm	Phosphor Bronze	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	18.75 mm		Square	3 A	Polybutylene Terephthalate (PBT)	Through Hole	0.318 in	8.08 mm	Male Pin	Header Breakaway	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	All	Black	13	Push-Pull	0.1 in	2.54 mm	Tin			Unshrouded		1			0.738 in

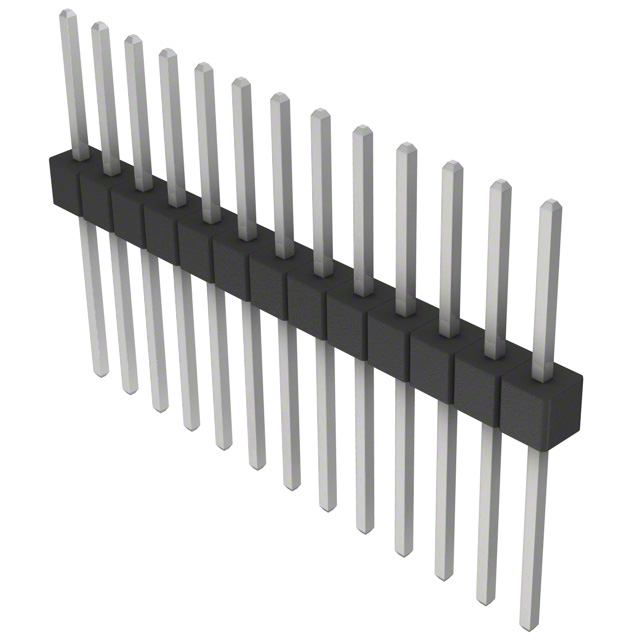

Sullins Connector Solutions PEC13SFDN	2.54 µm	100 µin	0.42 in	10.67 mm	Phosphor Bronze	-65 ░C	125 °C	Board to Board Cable	UL94 V-0	21.29 mm	0.838 in	Square	3 A	Polybutylene Terephthalate (PBT)	Through Hole	0.318 in	8.08 mm	Male Pin	Header Breakaway	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	All	Black	13	Push-Pull	0.1 in	2.54 mm	Tin			Unshrouded		1
