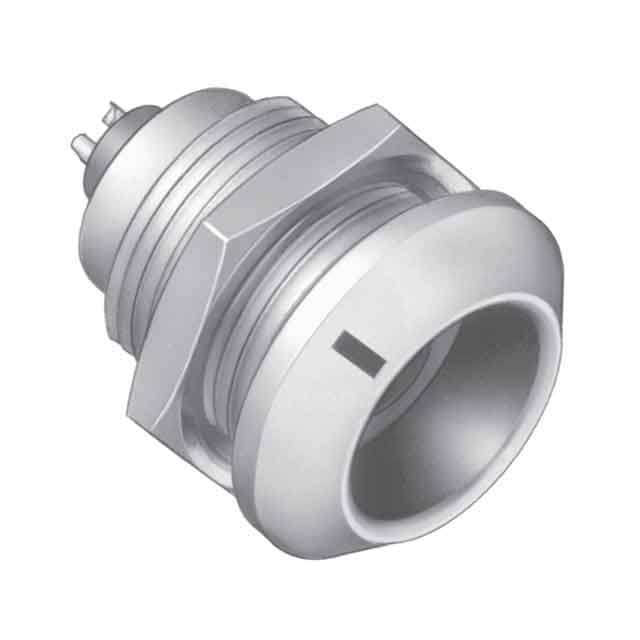

EGG.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 10P SOLDER CUP

Part	Connector Type	Primary Material	Insert Material	Number of Positions	Mounting Feature	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Ingress Protection	Mounting Type	Contact Finish - Mating	Shell Material	Shell Finish	Contact Material	Orientation [custom]	Shielding	Current Rating (Amps)	Fastening Type	Shell Size - Insert [custom]	Termination	Features	Type	Contact Finish	Contact Termination	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Size	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Type

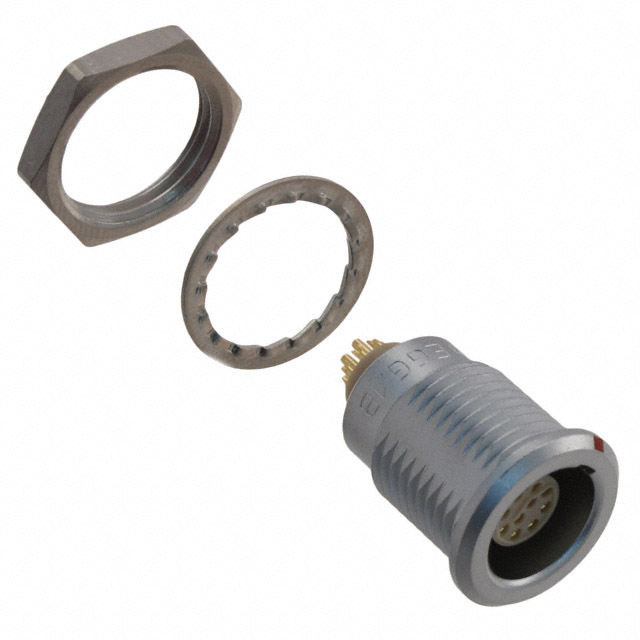

LEMO EGG.1B.310.CLL	Receptacle Female Sockets	Metal	Polyetheretherketone (PEEK)	10	Bulkhead - Rear Side Nut	UL94 V-0	1.5 Ám	59 Áin	Silver	-55 C	250 °C	310	IP50 - Dust Protected	Panel Mount	Gold	Brass	Chrome	Bronze	G	Shielded	2.5 A	Push-Pull
LEMO EGG.1B.307.CLL	Receptacle Female Sockets	Metal	Polyetheretherketone (PEEK)	7	Bulkhead - Rear Side Nut	UL94 V-0	1.5 Ám	59 Áin	Silver	-55 C	250 °C		IP50 - Dust Protected	Panel Mount	Gold	Brass	Chrome	Bronze	G	Shielded	7 A	Push-Pull	307
LEMO EGG.1B.305.CLL	Receptacle Female Sockets	Metal	Polyetheretherketone (PEEK)	5	Bulkhead - Rear Side Nut	UL94 V-0	1.5 Ám	59 Áin	Silver	-55 C	250 °C	305	IP50 - Dust Protected	Panel Mount	Gold	Brass	Chrome	Bronze	G	Shielded	9 A	Push-Pull
LEMO EGG.1B.306.CLN	Receptacle Female Sockets	Metal	Polyetheretherketone (PEEK)	6	Bulkhead - Rear Side Nut	UL94 V-0	1.5 Ám	59 Áin	Silver	-55 C	250 °C	306	IP50 - Dust Protected	Panel Mount Through Hole	Gold	Brass	Chrome	Bronze	G	Shielded	7 A	Push-Pull		Solder
LEMO EGG.1B.307.ZLLT	Insert Female Sockets		Polyetheretherketone (PEEK)	7		UL94 V-0	1.5 Ám	59 Áin		-55 C	250 °C		IP50 - Dust Protected		Gold			Bronze	G	Shielded	7 A		307		Insert Only Requires Shell
LEMO EGG.1B.314.CLL	Receptacle Female Sockets	Metal	Polyetheretherketone (PEEK)	14	Bulkhead - Rear Side Nut	UL94 V-0	1.5 Ám	59 Áin	Silver	-55 C	250 °C	314	IP50 - Dust Protected	Panel Mount	Gold	Brass	Chrome	Bronze	G	Shielded	2 A	Push-Pull
LEMO EGG.1B.305.ZYM	Insert Female Sockets		Polyetheretherketone (PEEK)	5		UL94 V-0	1.5 Ám	59 Áin		-55 C	250 °C	305	IP50 - Dust Protected		Gold			Bronze	G	Shielded	9 A			Crimp	Insert Only Requires Shell
LEMO EGG.1B.314.CLN	Receptacle Female Sockets	Metal	Polyetheretherketone (PEEK)	14	Bulkhead - Rear Side Nut	UL94 V-0	1.5 Ám	59 Áin	Silver	-55 C	250 °C	314	IP50 - Dust Protected	Panel Mount Through Hole	Gold	Brass	Chrome	Bronze	G	Shielded	2 A	Push-Pull		Solder
LEMO EGG.1B.665.ZZE																		Bronze								Signal Machined	Gold	Crimp	1 mm²	0.5 mm²	1.3 mm	18 AWG	20 AWG	Socket
LEMO EGG.1B.702.CJL	Receptacle Female Sockets	Metal	Polyetheretherketone (PEEK)		Bulkhead - Rear Side Nut	UL94 V-0	1.5 Ám	59 Áin	Silver	-55 C	250 °C	702	IP50 - Dust Protected	Panel Mount	Gold	Brass	Chrome	Bronze	G	Shielded	12 Amps	Push-Pull
