KH-102 Series
Manufacturer: KOINO
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY GEN PURPOSE 3PDT 10A 24V
| Part | Features | Operate Time | Release Time | Coil Type | Contact Material | Mounting Type | Contact Form | Contact Rating (Current) | Coil Current | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Pin Count | Termination Style | Load - Max Switching (Real Power) | Relay Type | Approval Agency | Operating Temperature (Min) | Operating Temperature (Max) | Coil Voltage | Must Operate Voltage | Must Release Voltage | Coil Resistance | Load - Max Switching (Apparent Power) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KOINO | Lighted Indicator | 25 ms | 25 ms | Non Latching | Phosphor Bronze Polybutylene Succinate (PBS) | Socketable | 2 2 Form C C DPDT Form | 10 A | 0.06 A | 24 VDC | 220 VAC | 8 | Plug In | 240 W | General Purpose | CCC cURus | -5 °C | 40 °C | 24 VDC | 19.2 V | 3.6 VAC | 400 Ohms | |

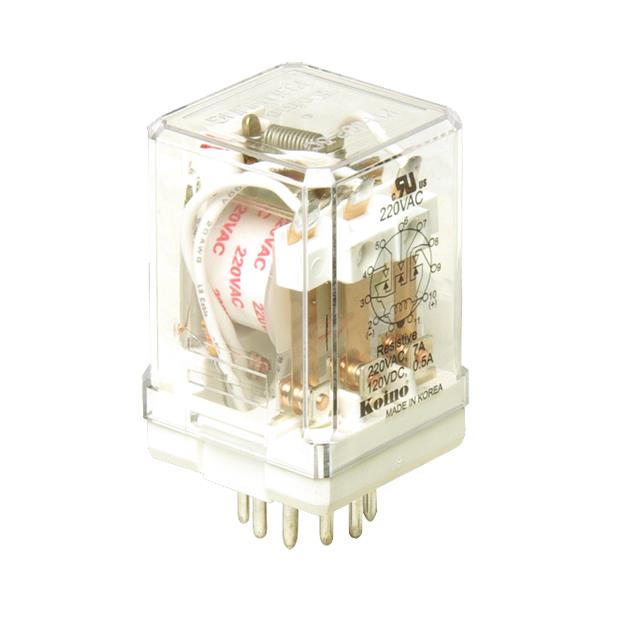

 KOINO | Lighted Indicator | 25 ms | 25 ms | Non Latching | Phosphor Bronze Polybutylene Succinate (PBS) | Socketable | 3 Form C PDT | 10 A | 23 mA | 24 VDC | 220 VAC | 3 pins 11 pins | Plug In | General Purpose | CCC cURus | -5 °C | 40 °C | 110 V | 88 V | 33 VAC | 1.64 kOhms | 1650 VA | |
KOINO | Lighted Indicator | 25 ms | 25 ms | Non Latching | Phosphor Bronze Polybutylene Succinate (PBS) | Socketable | 3 Form C PDT | 10 A | 11.5 mA | 24 VDC | 220 VAC | 3 pins 11 pins | Plug In | General Purpose | CCC cURus | -5 °C | 40 °C | 220 V | 176 VAC | 66 VAC | 6.8 kOhms | 1650 VA | |

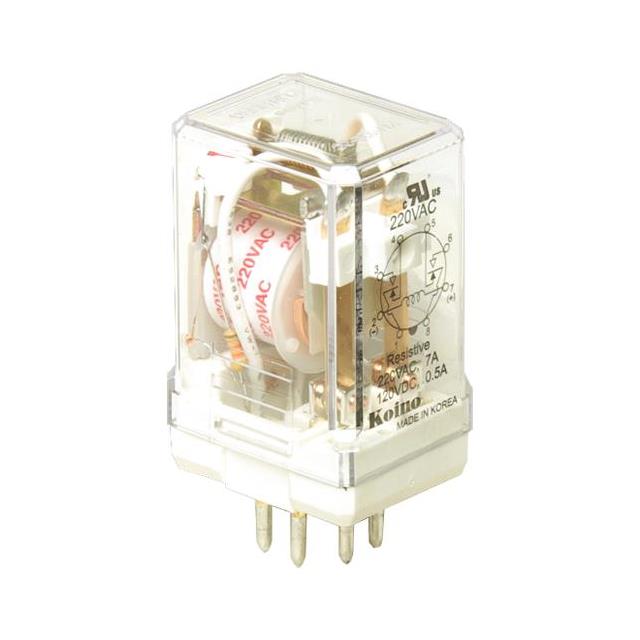

KOINO | 25 ms | 25 ms | Non Latching | Phosphor Bronze Polybutylene Succinate (PBS) | Socketable | 2 2 Form C C DPDT Form | 10 A | 11.5 mA | 24 VDC | 220 VAC | 8 | Plug In | General Purpose | CCC cURus | -5 °C | 40 °C | 220 V | 176 VAC | 66 VAC | 6.8 kOhms | 1650 VA | ||
KOINO | Lighted Indicator | 25 ms | 25 ms | Non Latching | Phosphor Bronze Polybutylene Succinate (PBS) | Socketable | 2 2 Form C C DPDT Form | 10 A | 0.12 A | 24 VDC | 220 VAC | 8 | Plug In | 240 W | General Purpose | CCC cURus | -5 °C | 40 °C | 12 VAC | 9.6 VDC | 1.8 VAC | 100 Ohms | |
KOINO | 25 ms | 25 ms | Non Latching | Phosphor Bronze Polybutylene Succinate (PBS) | Socketable | 3 Form C PDT | 10 A | 23 mA | 24 VDC | 220 VAC | 3 pins 11 pins | Plug In | General Purpose | CCC cURus | -5 °C | 40 °C | 110 V | 88 V | 33 VAC | 1.64 kOhms | 1650 VA | ||
KOINO | Lighted Indicator | 25 ms | 25 ms | Non Latching | Phosphor Bronze Polybutylene Succinate (PBS) | Socketable | 2 2 Form C C DPDT Form | 10 A | 11.5 mA | 24 VDC | 220 VAC | 8 | Plug In | General Purpose | CCC cURus | -5 °C | 40 °C | 220 V | 176 VAC | 66 VAC | 6.8 kOhms | 1650 VA | |
KOINO | Lighted Indicator | 25 ms | 25 ms | Non Latching | Phosphor Bronze Polybutylene Succinate (PBS) | Socketable | 3 Form C PDT | 10 A | 0.12 A | 24 VDC | 220 VAC | 3 pins 11 pins | Plug In | 240 W | General Purpose | CCC cURus | -5 °C | 40 °C | 12 VAC | 9.6 VDC | 1.8 VAC | 100 Ohms | |
KOINO | 25 ms | 25 ms | Non Latching | Phosphor Bronze Polybutylene Succinate (PBS) | Socketable | 3 Form C PDT | 10 A | 0.06 A | 24 VDC | 220 VAC | 3 pins 11 pins | Plug In | 240 W | General Purpose | CCC cURus | -5 °C | 40 °C | 24 VDC | 19.2 V | 3.6 VAC | 400 Ohms | ||
KOINO | Lighted Indicator | 25 ms | 25 ms | Non Latching | Phosphor Bronze Polybutylene Succinate (PBS) | Socketable | 3 Form C PDT | 10 A | 0.06 A | 24 VDC | 220 VAC | 3 pins 11 pins | Plug In | 240 W | General Purpose | CCC cURus | -5 °C | 40 °C | 24 VDC | 19.2 V | 3.6 VAC | 400 Ohms |
