ML15 Series
Manufacturer: PULS, LP
Beta
⌘K
AC/DC DIN RAIL SUPPLY 5V 15W
| Part | Current - Output (Max) [Max] | Applications | Standard Number | Voltage - Output 1 | Features | Voltage - Isolation | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Approval Agency | Efficiency | Input Type | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PULS, LP | 3 A | ITE (Commercial) | 508 60950-1 61010-2-201 Class 2 Class I Div 2 | 5 V | Adjustable Output Load Sharing | 500 V | 264 VAC | 85 VAC | 70 °C | 0 °C | 1 | ABS CSA DNV GL EAC IEC NEC UL | 77.2 % | AC | 15 W |

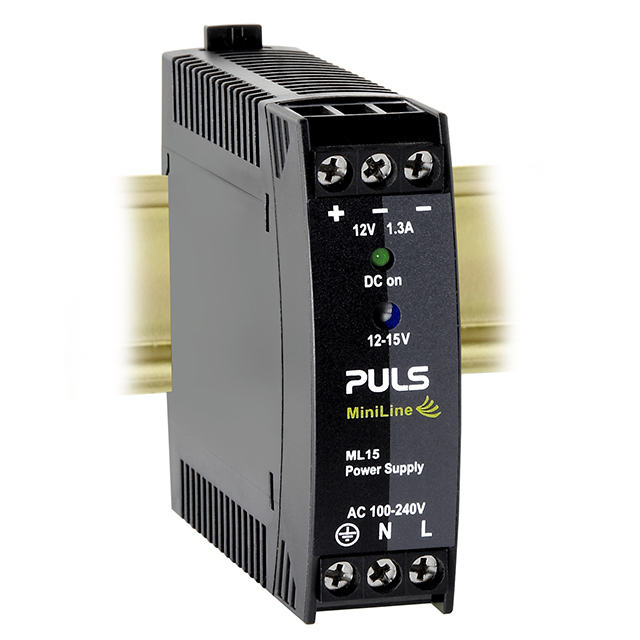

 PULS, LP | 1.3 A | ITE (Commercial) | 508 60950-1 61010-2-201 Class 2 Class I Div 2 | 12 V | Adjustable Output Load Sharing | 500 V | 264 VAC | 85 VAC | 70 °C | 0 °C | 1 | ABS CSA DNV GL EAC IEC NEC UL | 83 % | AC | 15 W |

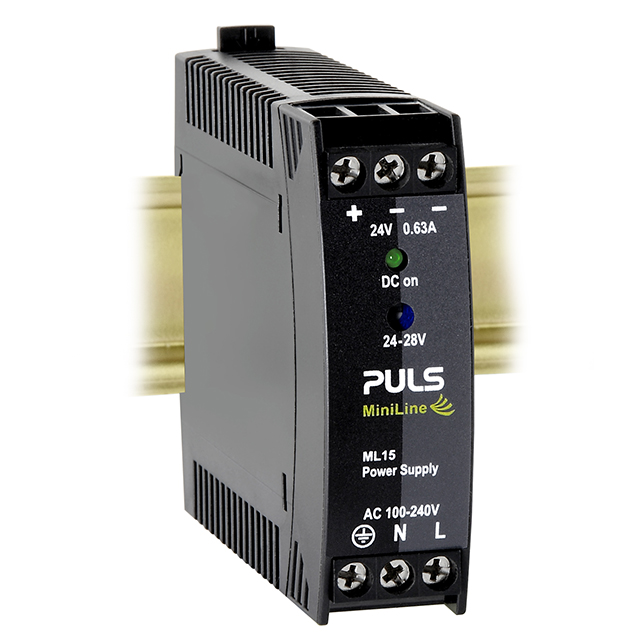

 PULS, LP | 630 mA | ITE (Commercial) | 508 60950-1 61010-2-201 Class 2 Class I Div 2 | 24 V | Adjustable Output Load Sharing | 500 V | 264 VAC | 85 VAC | 70 °C | 0 °C | 1 | ABS CSA DNV GL EAC IEC NEC UL | 86.1 % | AC | 15 W |
