8600 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

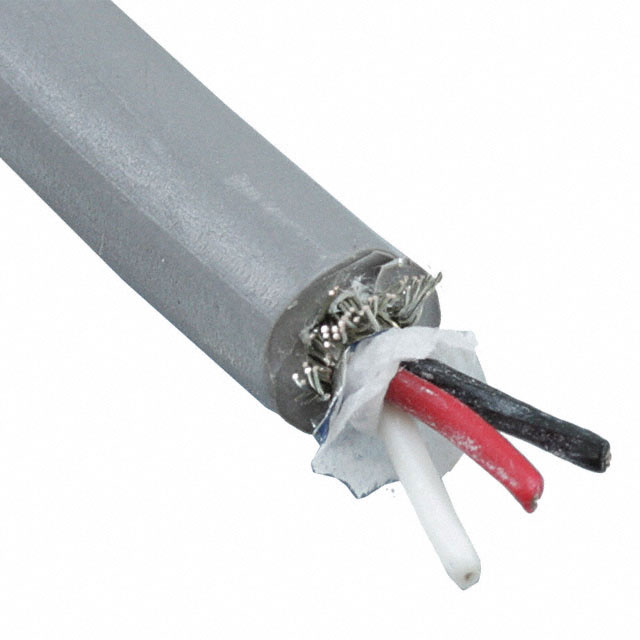

MULTI-CONDUCTOR CABLES 28AWG 3C SHIELD 100FT SPOOL SLATE
| Part | Shield Coverage | Shield Material | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Jacket (Insulation) Material | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Conductor Insulation | Features | Voltage | Ratings | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 90 % 100 % | Aluminum Copper Tinned | 100 ft | 30.5 m | 1.016 mm | 0.04 in | Copper Tinned | Poly-Vinyl Chloride (PVC) | 3 | 7 | 36 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire | 300 VDC | ISO 10993 UL Style 2661 | Slate | 4.57 mm | 0.18 in | Braid Foil | 28 AWG | ||
 ALPHA WIRE | 100 ft | 30.5 m | 1.016 mm | 0.04 in | Copper Tinned | Poly-Vinyl Chloride (PVC) | 5 | 7 | 36 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire | 300 VDC | ISO 10993 UL Style 2661 | Slate | 5.08 mm | 0.2 in | Braid Foil | 28 AWG | ||||
 ALPHA WIRE | 1.016 mm | 0.04 in | Copper Tinned | Poly-Vinyl Chloride (PVC) | 5 | 7 | 36 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire | 300 VDC | ISO 10993 UL Style 2661 | Slate | 5.08 mm | 0.2 in | Braid Foil | 28 AWG | 152.4 m | 500 ft | ||||
 ALPHA WIRE | 100 ft | 30.5 m | 1.016 mm | 0.04 in | Copper Tinned | Poly-Vinyl Chloride (PVC) | 2 | 7 | 36 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire | 300 VDC | ISO 10993 UL Style 2661 | Slate | 4.42 mm | 0.174 in | Braid Foil | 28 AWG |
