QMS-026 Series

Isolated DC/DC Converters - Through Hole

Manufacturer: Samtec Inc.

Catalog

Isolated DC/DC Converters - Through Hole

Catalog

Isolated DC/DC Converters - Through Hole

Part	Contact Finish	Features	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mated Stacking Heights	Number of Positions	Connector Type	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Samtec Inc. QMS-026-06.75-L-D-PC4	Gold	Board Guide Ground Bus (Plane) Power Pins (8)	Surface Mount Through Hole	10 Áin	0.25 Ám	2	11 mm 13 mm	52	Header Outer Shroud Contacts	0.265 in	6.73 mm	0.64 mm	0.025 in
Samtec Inc. QMS-026-06.75-L-D-A-GP	Gold	Board Guide Ground Bus (Plane) Mating Guide	Surface Mount	10 Áin	0.25 Ám	2	11 mm 13 mm	52	Header Outer Shroud Contacts	0.25 in	6.35 mm	0.64 mm	0.025 in

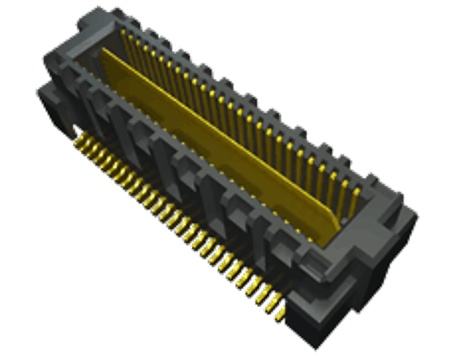

Samtec Inc. QMS-026-01-S-D-EM2	Gold	Ground Bus (Plane) Mating Guide	Board Edge Straddle Mount	30 Áin	0.76 Ám	2		52	Header Outer Shroud Contacts			0.64 mm	0.025 in

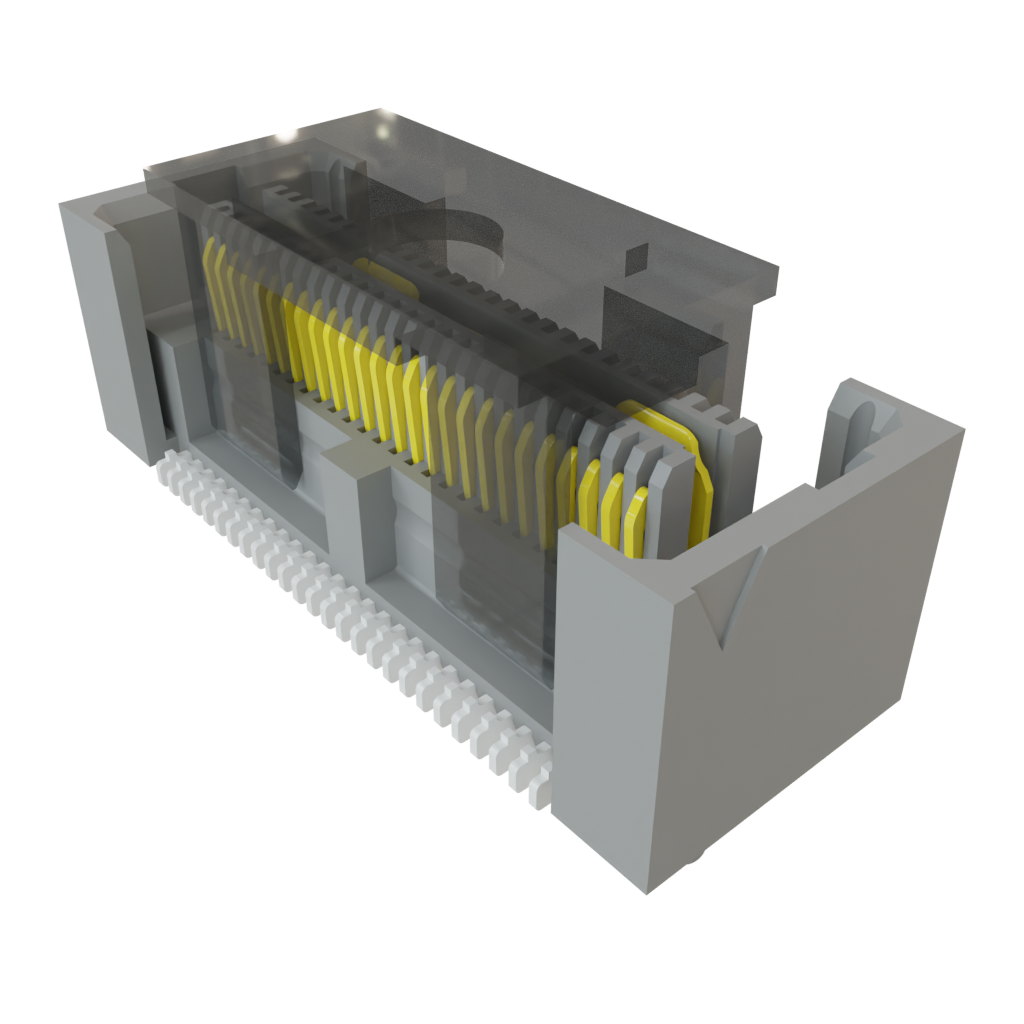

Samtec Inc. QMS-026-01-SL-D-RA-K-TR	Gold	Ground Bus (Plane) Pick and Place	Surface Mount Right Angle Through Hole	10 Áin	0.25 Ám	2		52	Header Outer Shroud Contacts			0.64 mm	0.025 in	8.12 mm	0.32 in

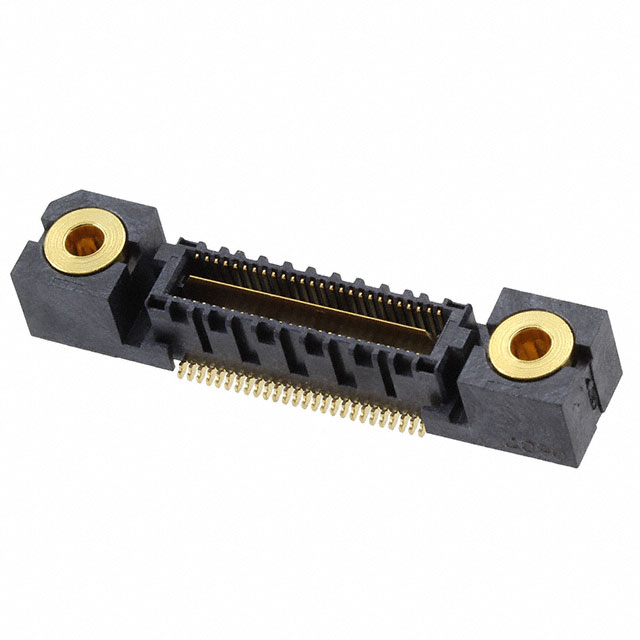

Samtec Inc. QMS-026-05.75-H-D-A-RT1	Gold	Board Guide Ground Bus (Plane) Mounting Flange	Surface Mount	10 Áin	0.25 Ám	2	10 mm 12 mm	52	Header Outer Shroud Contacts	0.227 in	5.76 mm	0.64 mm	0.025 in
Samtec Inc. QMS-026-06.75-L-D-PT8	Gold	Board Guide Ground Bus (Plane) Power Pins (16)	Surface Mount Through Hole	10 Áin	0.25 Ám	2	11 mm 13 mm		Header Outer Shroud Contacts	0.25 in	6.35 mm	0.64 mm	0.025 in			60	8	52

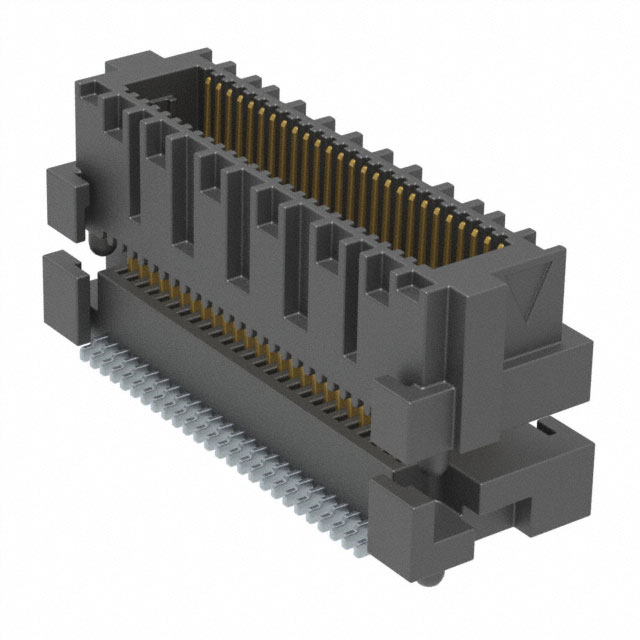

Samtec Inc. QMS-026-09.75-S-D-A-K-TR	Gold	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	30 Áin	0.76 Ám	2	14 mm 16 mm	52	Header Outer Shroud Contacts	0.368 in	9.35 mm	0.64 mm	0.025 in

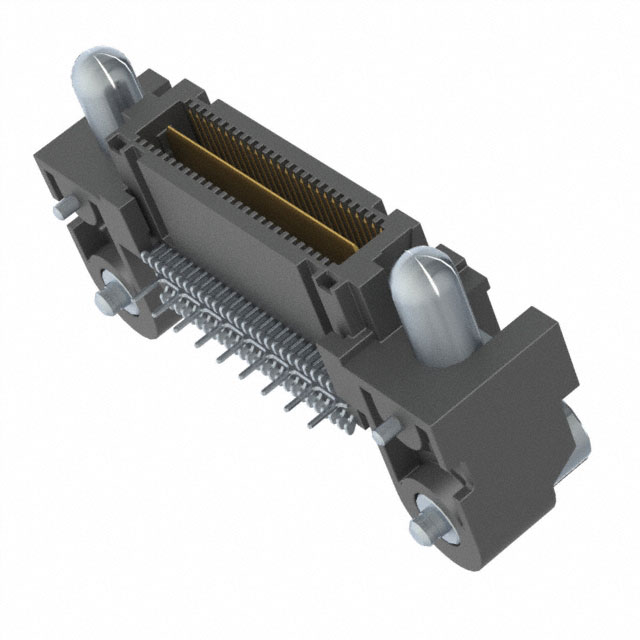

Samtec Inc. QMS-026-01-S-D-RA-MG-K-TR	Gold	Ground Bus (Plane) Mating Guide Pick and Place	Surface Mount Right Angle Through Hole	30 Áin	0.76 Ám	2		52	Header Outer Shroud Contacts			0.64 mm	0.025 in	8.12 mm	0.32 in
Samtec Inc. QMS-026-05.75-H-D-PC4-TR	Gold	Board Guide Ground Bus (Plane) Power Pins (8)	Surface Mount Through Hole	30 Áin	0.76 Ám	2	10 mm 12 mm		Header Outer Shroud Contacts	0.212 in	5.38 mm	0.64 mm	0.025 in			60	8	52
Samtec Inc. QMS-026-02-S-D-RA-PC4	Gold	Ground Bus (Plane) Power Pins (8)	Surface Mount Right Angle Through Hole	30 Áin	0.76 Ám	2			Header Outer Shroud Contacts			0.64 mm	0.025 in	8.12 mm	0.32 in	60	8	52
