887-008 Series
Manufacturer: EDAC Inc.
Beta
⌘K

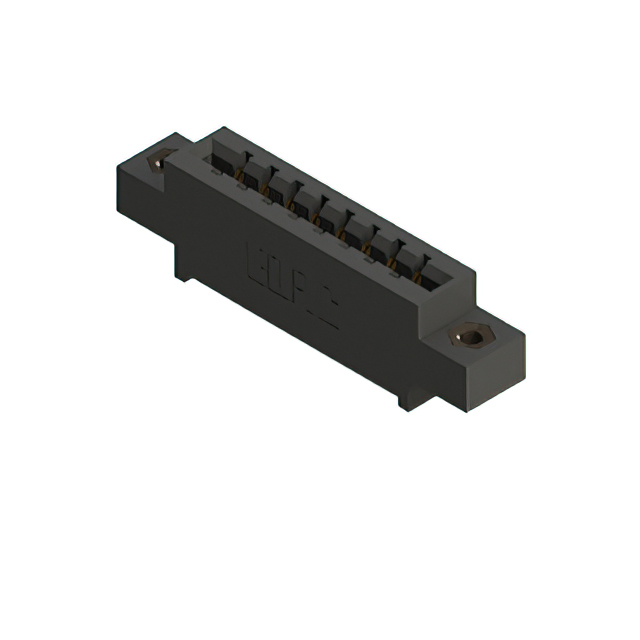

CONN EDGE SGL FMALE 8POS 0.156
| Part | Termination Rows | Material - Insulation | Card Type | Card Thickness [Max] | Card Thickness [Min] | Gender | Read Out | Number of Positions | Number of Positions/Bay/Row | Contact Finish | Number of Rows | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Mounting Type | Flange Feature | Pitch | Pitch | Termination | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Single | 8 | 8 | Gold | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | 125 °C | -40 C | Cantilever | Through Hole | M3 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Wire Wrap | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Single | 8 | 8 | Gold | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | 125 °C | -40 C | Cantilever | Right Angle Through Hole | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | Solder | 0.156 " | 3.96 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Single | 8 | 8 | Gold | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | 125 °C | -40 C | Cantilever | Through Hole | Flush Mount M3 Threaded Insert Top Opening | 3.96 mm | 0.156 in | Wire Wrap | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Single | 8 | 8 | Gold | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | 125 °C | -40 C | Cantilever | Through Hole | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | Solder | 0.156 " | 3.96 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Single | 8 | 8 | Gold | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | 125 °C | -40 C | Cantilever | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | Solder | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Single | 8 | 8 | Gold | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | 125 °C | -40 C | Cantilever | Through Hole | Flush Mount Side Opening Unthreaded | 3.96 mm | 0.156 in | Wire Wrap | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Single | 8 | 8 | Gold | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | 125 °C | -40 C | Cantilever | Through Hole | 3.96 mm | 0.156 in | Wire Wrap | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Single | 8 | 8 | Gold | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | 125 °C | -40 C | Cantilever | Through Hole | M3 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Wire Wrap | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Single | 8 | 8 | Gold | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | 125 °C | -40 C | Cantilever | Through Hole | 4-40 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Wire Wrap | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Single | 8 | 8 | Gold | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | 125 °C | -40 C | Cantilever | Through Hole | Flush Mount Side Opening Unthreaded | 3.96 mm | 0.156 in | Wire Wrap | 0.128 " | 3.25 mm |
